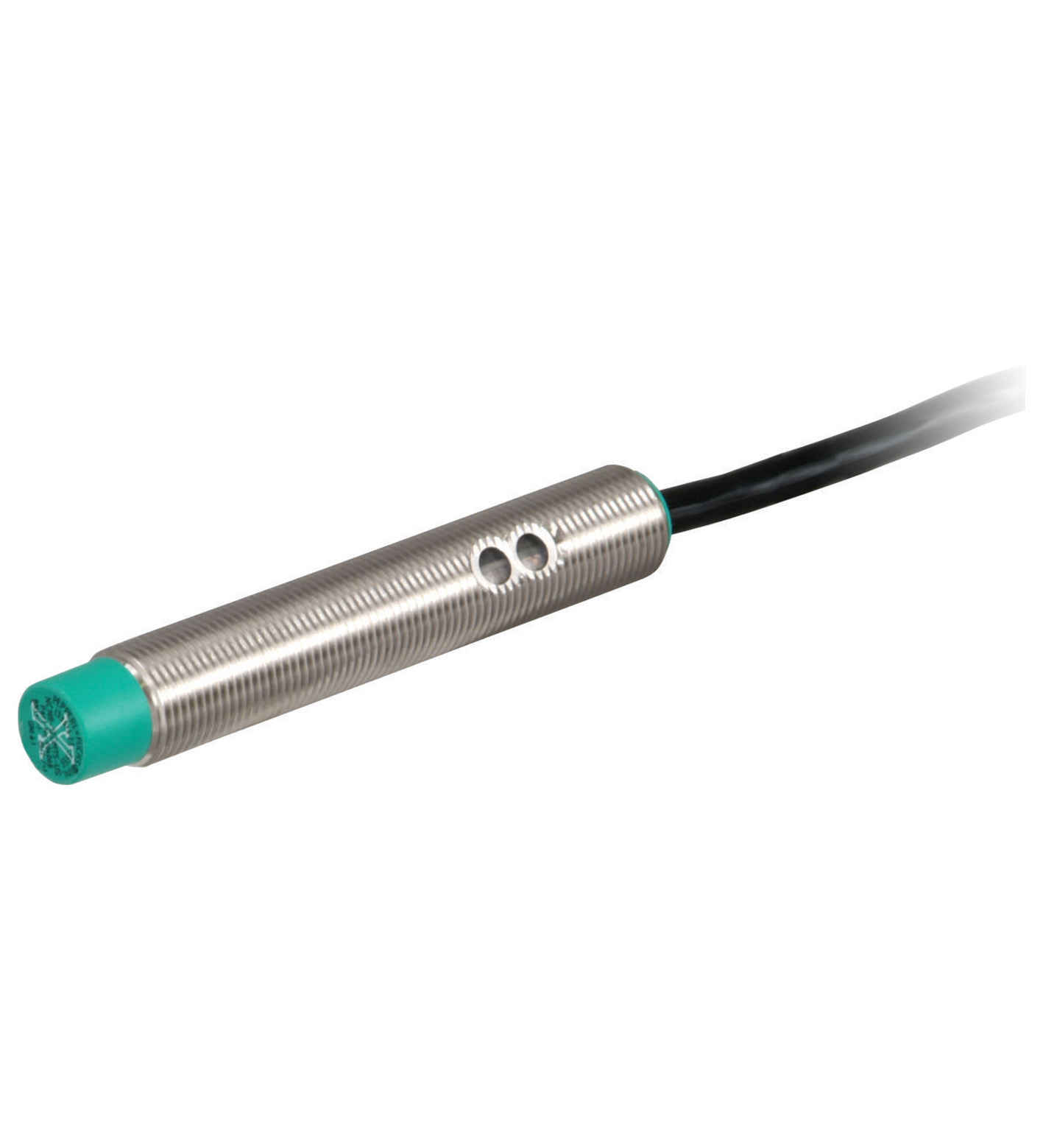

NBN8-12GM75-US

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical,...

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: UC, Rated operating voltage: 20 ... 250 V AC/DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 8 mm. Installation: non-flush. Output polarity: AC/DC. Reduction factor rAl: 0.5. Reduction factor rCu: 0.45. Reduction factor r304: 0.75. Output type: 2-wire. Switching frequency: 30 Hz. Hysteresis: 3 ... 15 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: yes. Voltage drop: ≤ 8 V. Rated operating current: 8 ... 200 mA AC/DC. Off-state current: ≤ 0.8 mA. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Rated operating voltage: 20 ... 250 V AC/DC. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Enclosure Type Rating: Type 1 30. CSA approval: cCSAus Listed, General Purpose. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Mass: 115 g. Dimensions: . Length75 mmDiameter12 mm: . Length: 75 mm. Diameter: 12 mm. Scope of delivery: 2 self locking nuts in scope of delivery

Brand	Pepperl Fuchs
Lifecycle status	active
