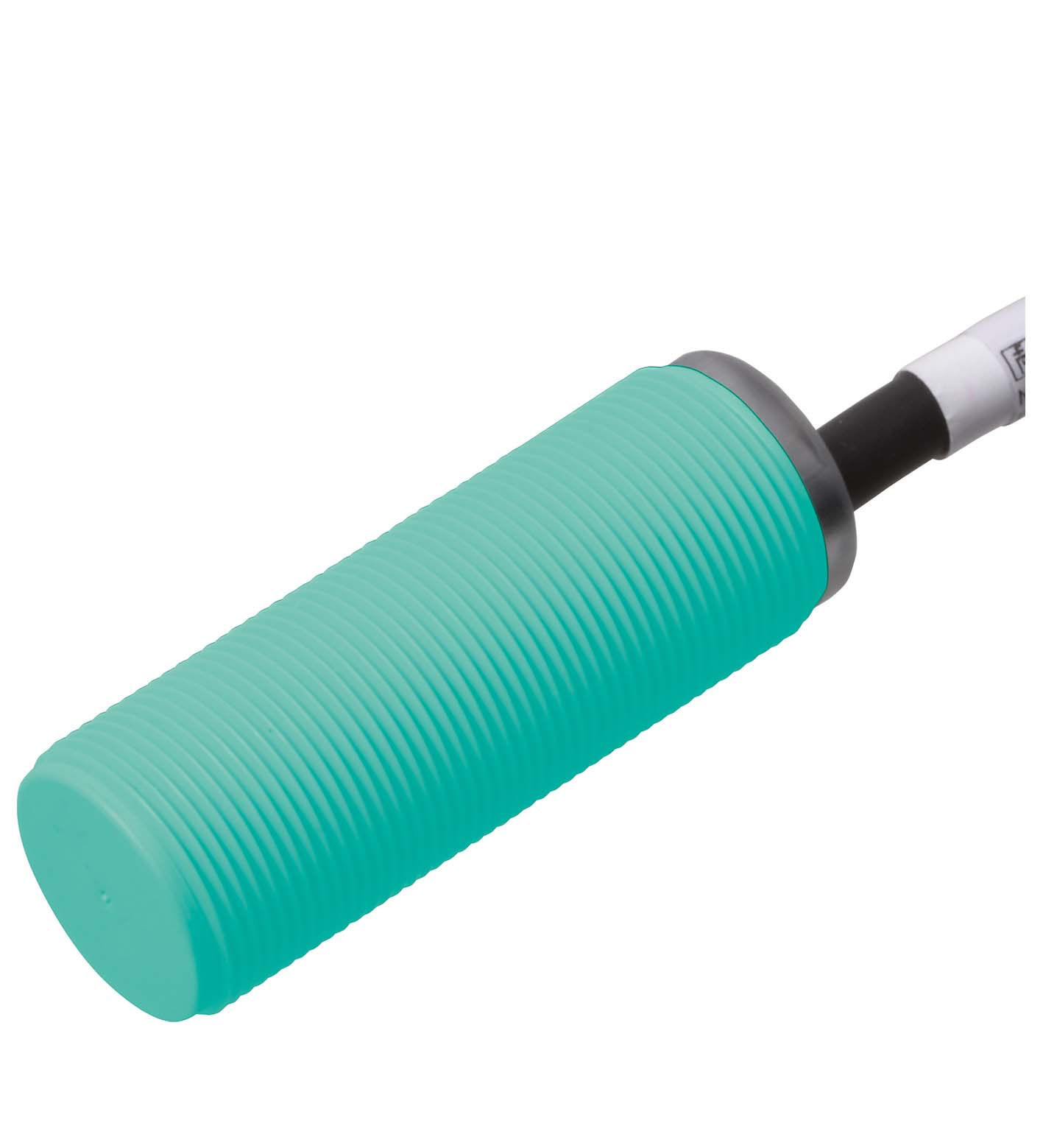

NBN8-18GK50-Z1-1,1M-Y

Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: non-flush, Output polarity: DC, Series: Cylindrical type, Type of voltage: DC, Connection type: cable,...

Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: non-flush, Output polarity: DC, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP68 / IP69, Material: PVC, Length: L = 1.1 m ± max. 10 mm <BR>L1 = 100 mm ± 5 mm <BR>L2 = 100 mm ± 5 mm <BR>L3 = 150 mm ± 5 mm <BR>L4 = 8 mm. Switching function: Normally closed (NC). Output type: Two-wire. Rated operating distance: 8 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Reduction factor rAl: 0.46. Reduction factor rCu: 0.41. Reduction factor r304: 0.78. Reduction factor rBrass: 0.52. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 300 Hz. Hysteresis: 1 ... 10 % typ. 2.5 %. Reverse polarity protection: yes. Short-circuit protection: pulsing. Voltage drop: 3.2 ... 5.2 V typ. 4 V. Operating current: 6 ... 100 mA. Off-state current: 0.8 ... 1.2 mA typ. 1 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP68 / IP69. Cable: . Cable diameter5.1 mm ± 0.2 mmMaterialPVCColorblackNumber of cores2Core cross section0.5 mm2LengthLL = 1.1 m ± max. 10 mm L1 = 100 mm ± 5 mm L2 = 100 mm ± 5 mm L3 = 150 mm ± 5 mm L4 = 8 mm: . Cable diameter: 5.1 mm ± 0.2 mm. Material: PVC. Color: black. Number of cores: 2. Core cross section: 0.5 mm2. Length: L = 1.1 m ± max. 10 mm L1 = 100 mm ± 5 mm L2 = 100 mm ± 5 mm L3 = 150 mm ± 5 mm L4 = 8 mm. Dimensions: . Length55 mmDiameter18 mm: . Length: 55 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
