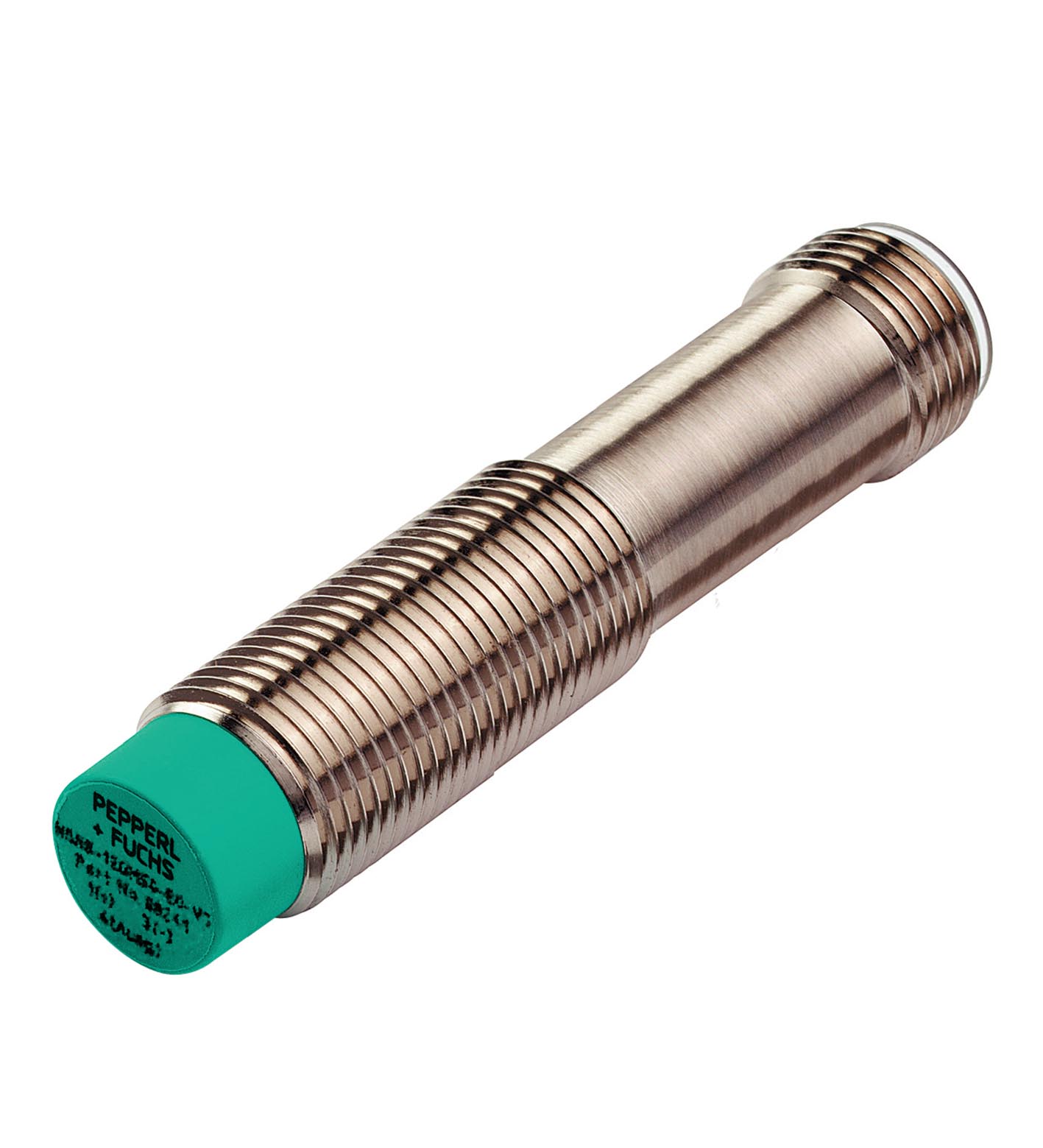

NBN8-18GM50-E2-V18-Y194052

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread,...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: V18 connector, Housing material: brass, nickel-plated, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 8 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 0.7. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 500 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Switching state indicator: Multihole-LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Connection type: V18 connector. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Dimensions: . Length88 mmDiameter18 mm: . Length: 88 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
