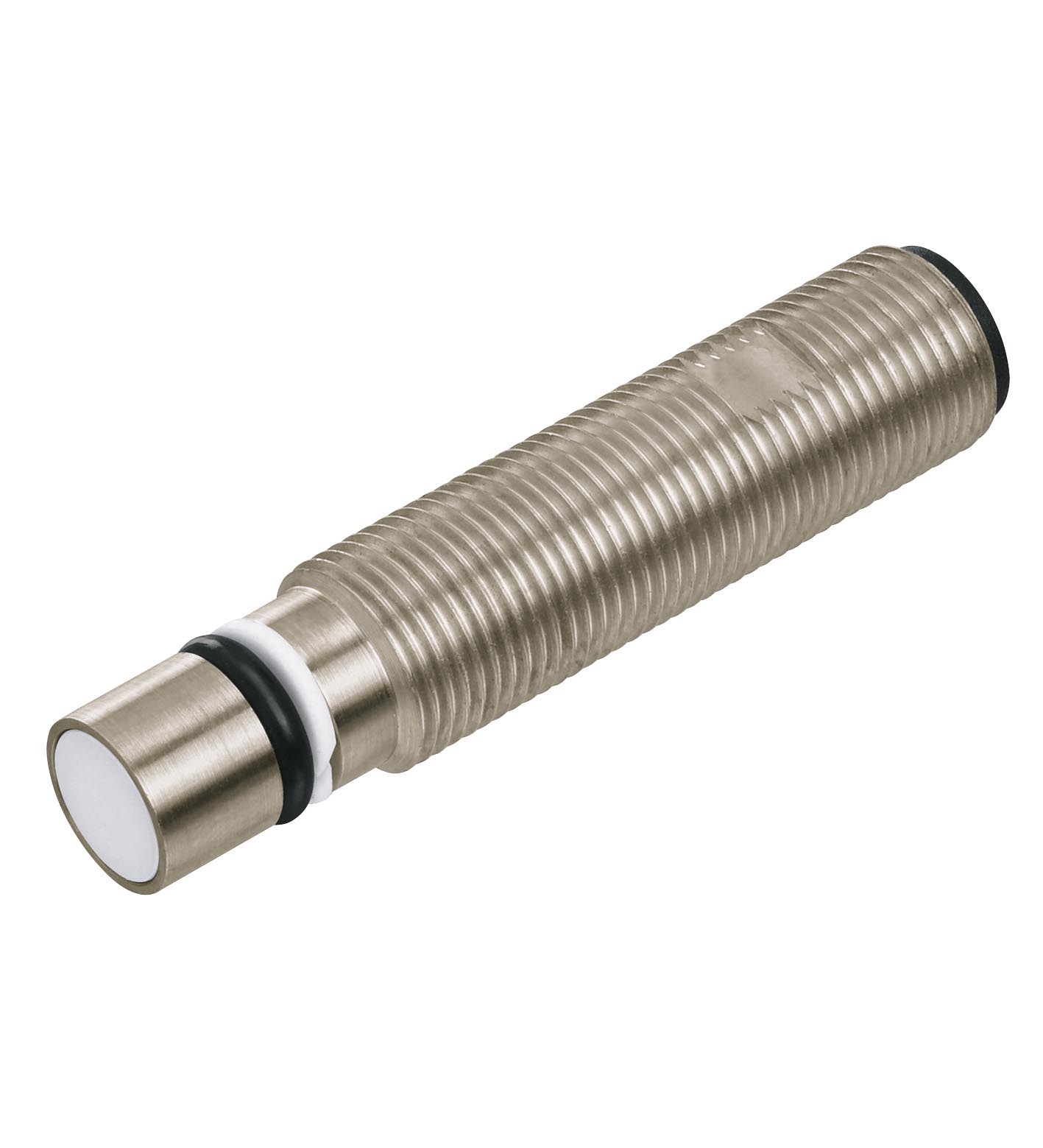

NCB1,5-12GM40-E2-D-V1

Inductive sensor. Compression proof, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylin...

Inductive sensor. Compression proof, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP68, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 600 Hz. Hysteresis: 3 ... 15 % typ. 8 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 10 mA. Operating pressure: 500 bar (7252 psi). Peak pressure: 1000 bar (14504 psi). MTTFd: 728 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CSA approval: cCSAus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Ceramic. Degree of protection: IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 30 g. Dimensions: . Length56 mmDiameter12 mm: . Length: 56 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
