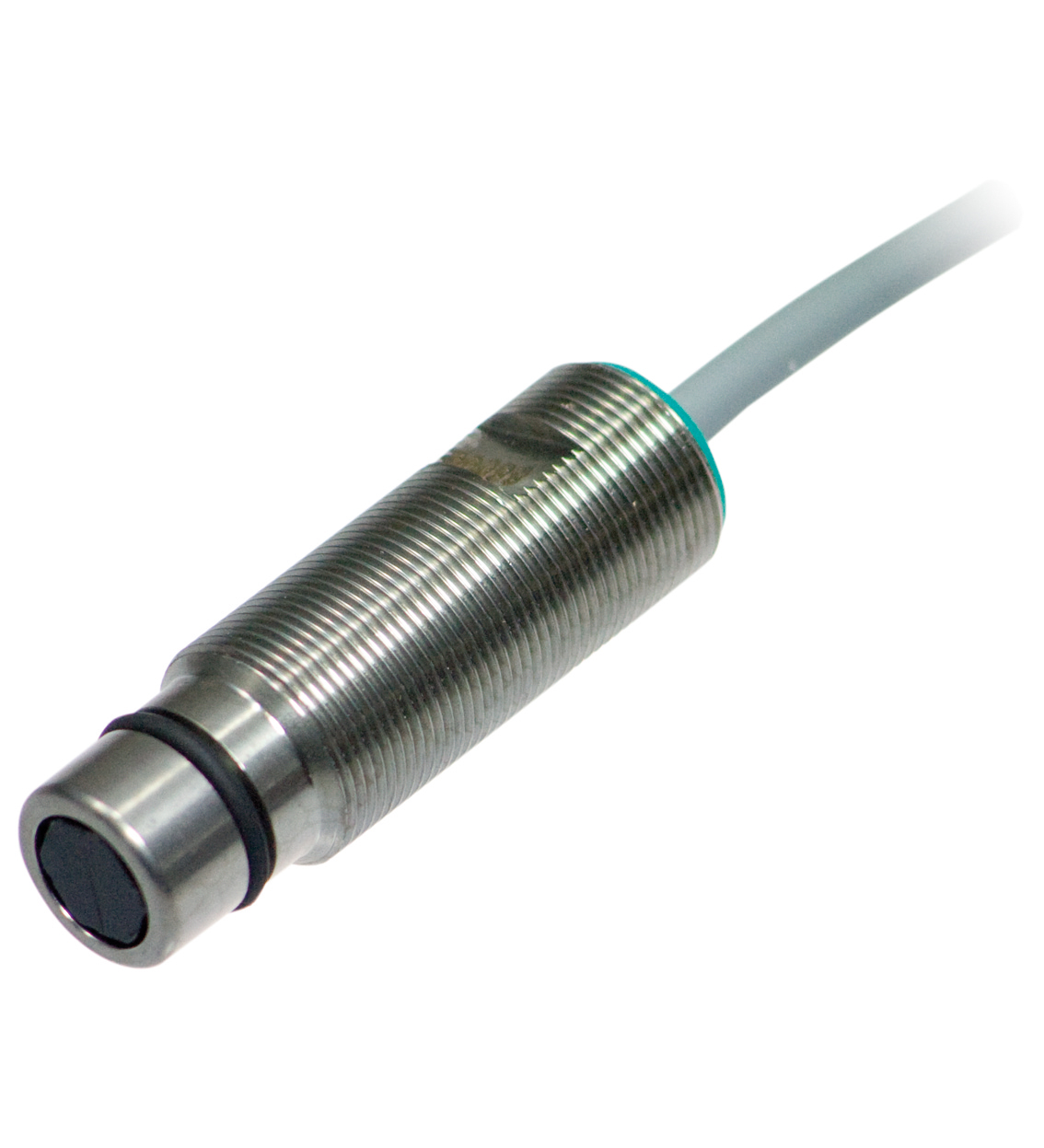

NCB1,5-18GM60-E3-D

Inductive sensor. Compression proof, Switching function: Normally closed (NC), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cyl...

Inductive sensor. Compression proof, Switching function: Normally closed (NC), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.22 mm. Reduction factor r304: 0.5. Output type: 3-wire. Operating voltage: 10 ... 60 V. Switching frequency: 0 ... 1500 Hz. Hysteresis: 1 ... 10 % typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 10 mA. Operating pressure: 350 bar (5076.4 psi). MTTFd: 1240 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -35 ... 80 °C (-31 ... 176 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Epoxy (black). Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Mass: 145 g. Dimensions: . Length57 mmDiameter18 mm: . Length: 57 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
