Pepperl Fuchs

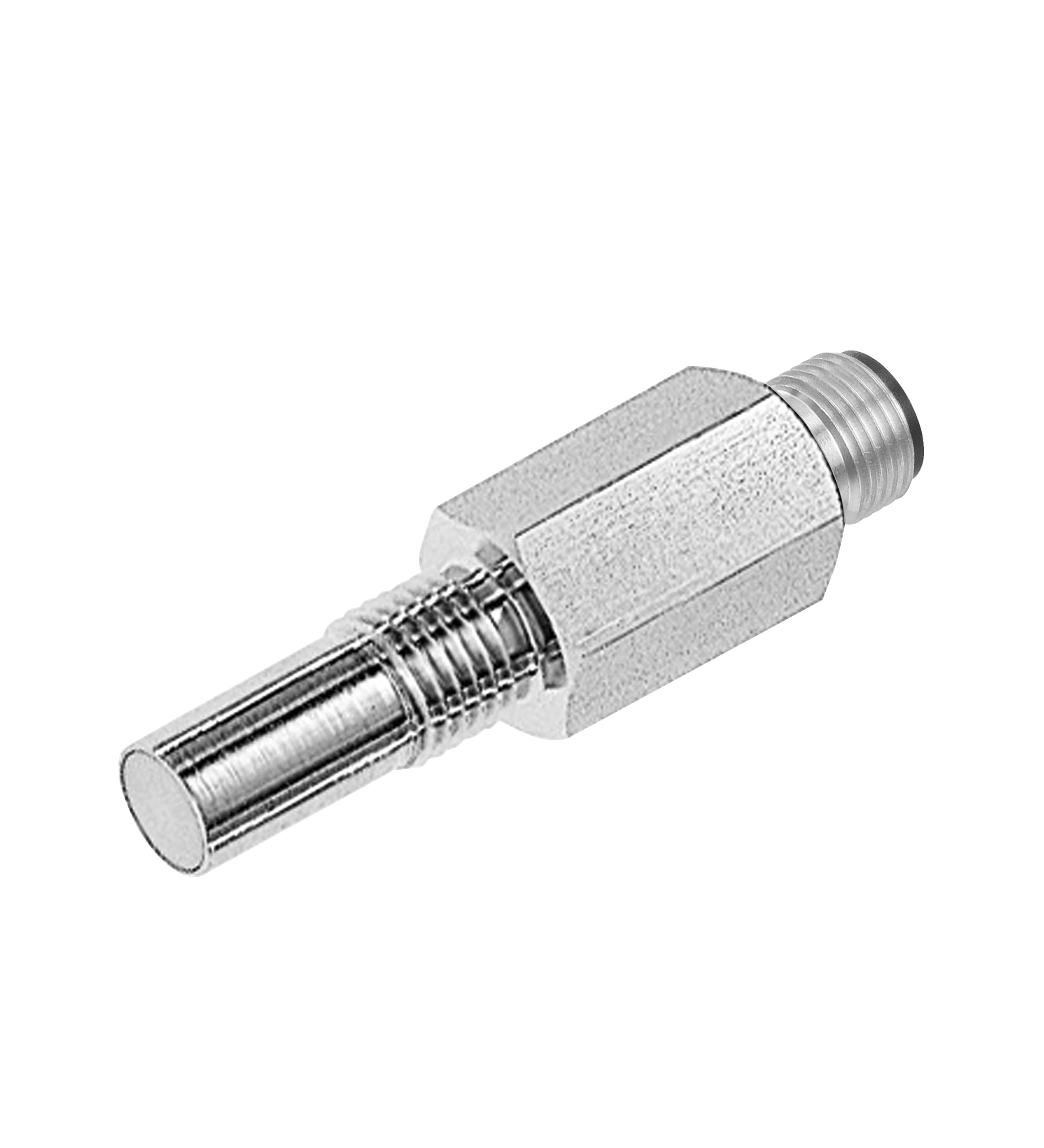

NCB3-14GM65-E2-D-V1

Inductive sensor. Compression proof, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M14, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP68, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 3 mm. Installation: flush. Output polarity: DC. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.85. Reduction factor rSt37: 1. Reduction factor rBrass: 0.15. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 500 Hz. Hysteresis: 3 ... 15 % typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Repeat accuracy: 0.1 mm. Temperature drift: ± 15% max.. Operating current: ≤ 200 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 10 ms. Operating pressure: 500 bar (7252 psi). Peak pressure: 800 bar (11603.2 psi). Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CSA approval: cCSAus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Ceramic. Degree of protection: IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 64 g. Dimensions: . Length65 mmDiameter12 mm: . Length: 65 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
