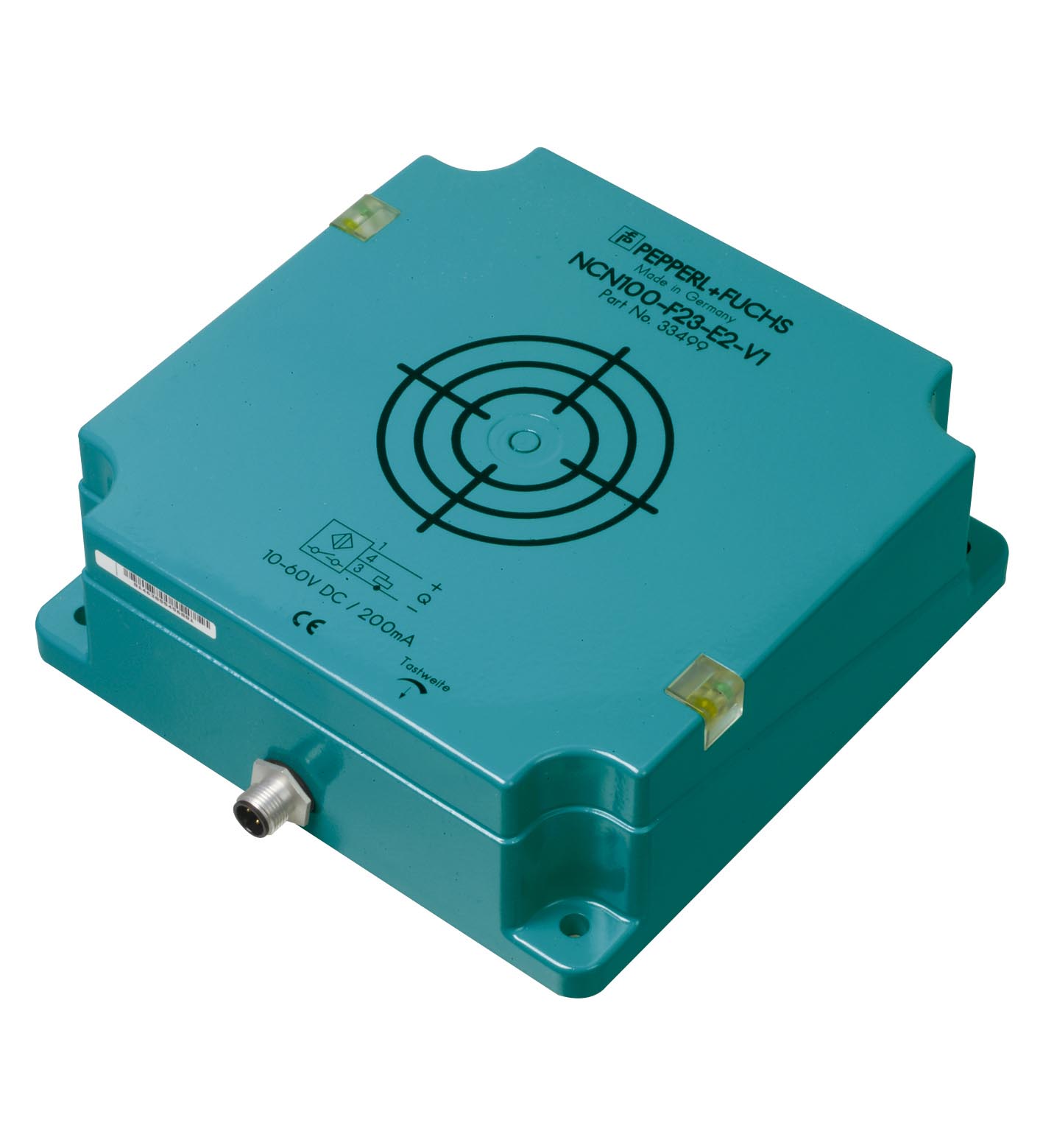

NCN100-F23-E2-V1

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type,...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: ABS (TSG), bottom Al, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 100 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 81 mm. Actual operating distance: 90 ... 110 mm typ.. Reduction factor rAl: 0.37. Reduction factor rCu: 0.35. Reduction factor r304: 1. Reduction factor rBrass: 0.47. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 10 Hz. Hysteresis: typ. 8 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Voltage drop at IL: . Voltage drop IL = 200 mA, switching element onUd1.3 ... 2.2 V typ. 1.9 V: Ud. Voltage drop IL = 200 mA, switching element on: 1.3 ... 2.2 V typ. 1.9 V. Operating current: 0 ... 200 mA. Off-state current: . Off-state current UB = 1.1 x Ue, switching element off0 ... 0.5 mA: . Off-state current UB = 1.1 x Ue, switching element off: 0 ... 0.5 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 90 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 911 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Housing material: ABS (TSG), bottom Al. Sensing face: ABS. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height60.5 mmWidth177 mmLength177 mm: . Height: 60.5 mm. Width: 177 mm. Length: 177 mm. Note: The mounting conditions must be checked on a case-by-case basis depending on the application in question.

Brand	Pepperl Fuchs
Lifecycle status	active
