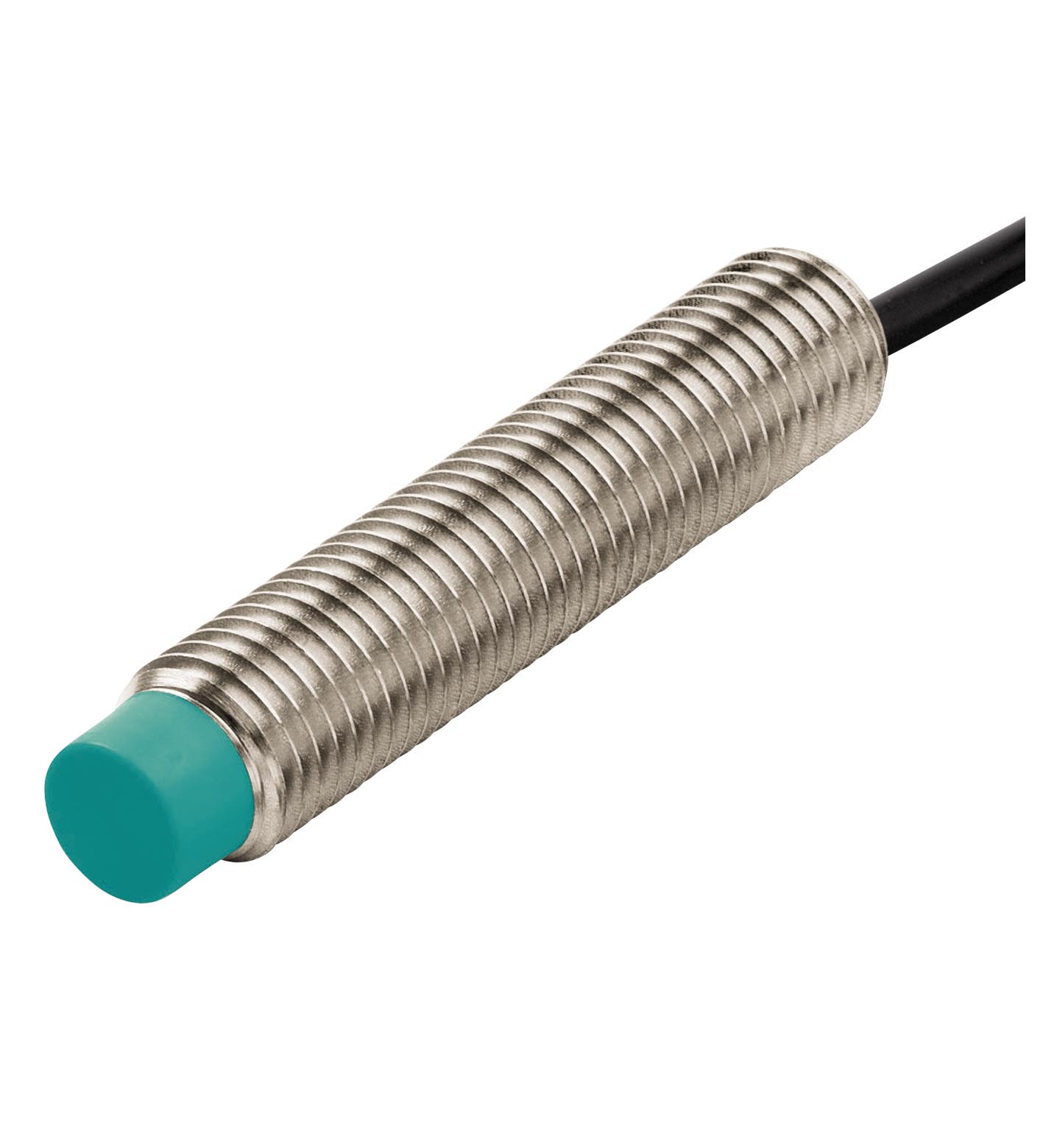

NCN2-8GM40-Z0

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: non-flush, Output polarity: DC, Output type: 2-wire, Thread mold: M8, Construction type: Cylindrical, thr...

Inductive sensor. Switching function: Normally open (NO), Output type: Two-wire, Installation: non-flush, Output polarity: DC, Output type: 2-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 2 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Actual operating distance: 1.8 ... 2.2 mm typ.. Reduction factor rAl: 0.4. Reduction factor rCu: 0.39. Reduction factor r304: 0.75. Output type: 2-wire. Operating voltage: 5 ... 60 V. Switching frequency: 0 ... 1200 Hz. Hysteresis: 1 ... 10 % typ. 5 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: pulsing. Voltage drop: ≤ 5 V. Operating current: 2 ... 100 mA. Lowest operating current: 2 mA. Off-state current: 0 ... 0.5 mA typ.. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 100 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter2.8 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores2Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 2.8 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 2. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length40 mmDiameter8 mm: . Length: 40 mm. Diameter: 8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
