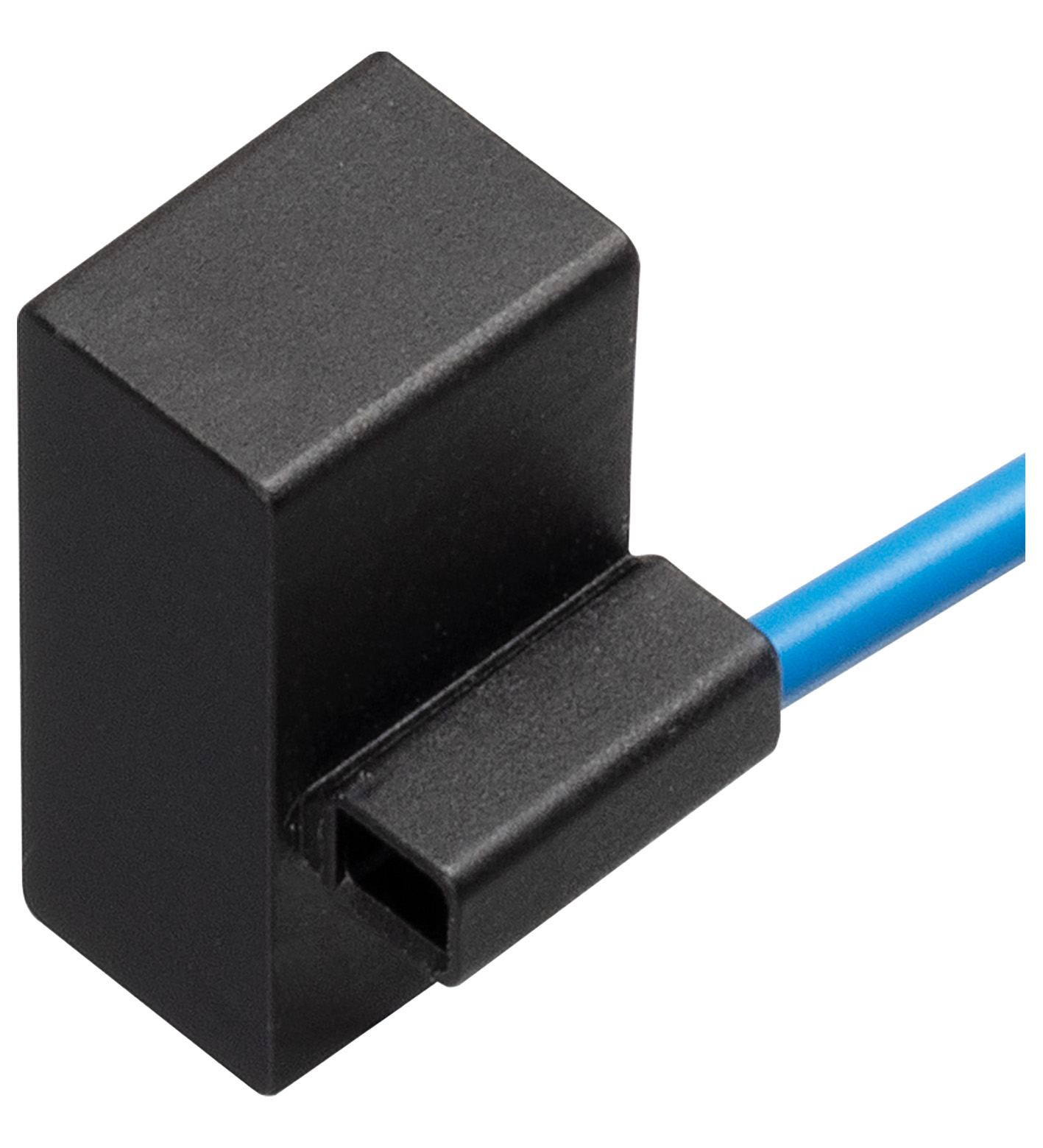

NCN2-F56-N1-Y107584

Inductive sensor. Output type: NAMUR, Installation: non-flush, Output type: 2-wire, Construction type: Other, Series: Cylindrical type, Type of voltage: DC, Equipment protection level Gb: IECEx PTB 11...

Inductive sensor. Output type: NAMUR, Installation: non-flush, Output type: 2-wire, Construction type: Other, Series: Cylindrical type, Type of voltage: DC, Equipment protection level Gb: IECEx PTB 11.0021X, Equipment protection level Da: IECEx PTB 11.0021X, Equipment protection level Mb: IECEx PTB 11.0021X, Equipment protection level Gb: PTB 00 ATEX 2032 X, Equipment protection level Da: PTB 00 ATEX 2032 X, Connection type: cable, Housing material: PA 6 GF35 Grivory GVN-35H sw, Degree of protection: IP67, Material: PVC. Output type: NAMUR. Rated operating distance: 2 mm. Installation: non-flush. Assured operating distance: 0 ... 1.62 mm. Actual operating distance: 1.8 ... 2.2 mm typ.. Reduction factor rAl: 0.5. Reduction factor rCu: 0.45. Reduction factor r304: 0.8. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Switching frequency: 0 ... 300 Hz. Hysteresis: 1 ... 10 % typ. 3 %. Reverse polarity protection: reverse polarity protected. Current consumption: . Measuring plate not detected≤ 1 mAMeasuring plate detected≥ 3 mA: . Measuring plate not detected: ≤ 1 mA. Measuring plate detected: ≥ 3 mA. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. IECEx approval: . Equipment protection level GbIECEx PTB 11.0021XEquipment protection level DaIECEx PTB 11.0021XEquipment protection level MbIECEx PTB 11.0021X: . Equipment protection level Gb: IECEx PTB 11.0021X. Equipment protection level Da: IECEx PTB 11.0021X. Equipment protection level Mb: IECEx PTB 11.0021X. ATEX approval: . Equipment protection level GbPTB 00 ATEX 2032 XEquipment protection level DaPTB 00 ATEX 2032 X: . Equipment protection level Gb: PTB 00 ATEX 2032 X. Equipment protection level Da: PTB 00 ATEX 2032 X. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. CML approval: on request. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable. Housing material: PA 6 GF35 Grivory GVN-35H sw. Sensing face: PA 6 GF35 Grivory GVN-35H sw. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter2.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorblueNumber of cores2Core cross section0.14 mm2LengthL0.17 m: . Wire end ferrules: yes. Cable diameter: 2.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: blue. Number of cores: 2. Core cross section: 0.14 mm2. Length: 0.17 m. Dimensions: . Height17 mmWidth14 mmLength26 mm: . Height: 17 mm. Width: 14 mm. Length: 26 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
