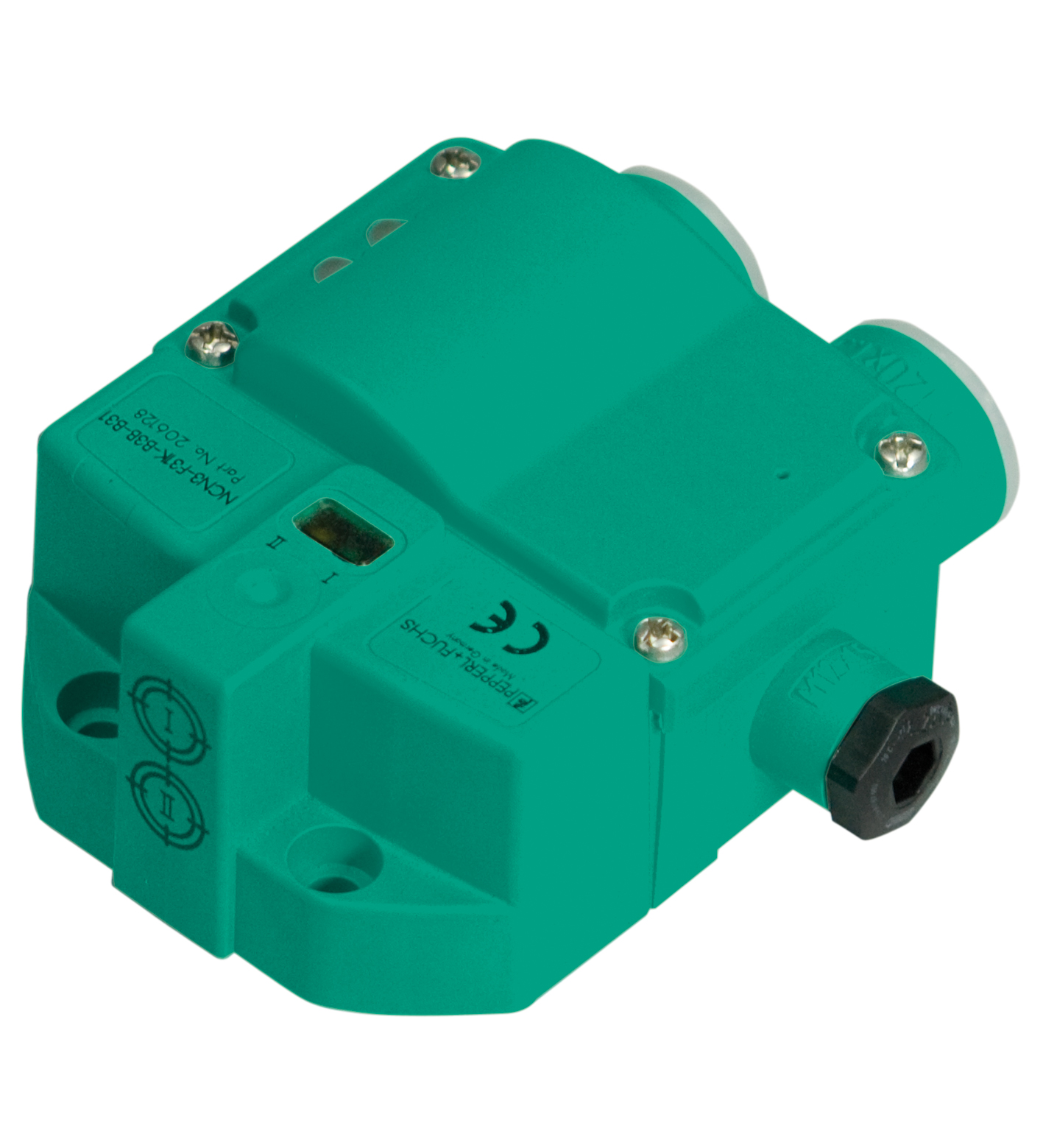

NCN3-F31K-B3B-B31

Inductive sensor. Valve position detection, Solenoid valve output, Switching function: Normally open/closed (NO/NC) programmable, Output type: AS-Interface, Installation: flush mountable, Construction...

Inductive sensor. Valve position detection, Solenoid valve output, Switching function: Normally open/closed (NO/NC) programmable, Output type: AS-Interface, Installation: flush mountable, Construction type: Dual sensor, Series: Dual sensor, Operating voltage: 26.5 ... 31.9 V via AS-i bus system, Type of voltage: DC, Rated operating voltage: 26.5 ... 31.6 V from AS-Interface, Connection (system side): screw terminals, Housing material: PBT, Degree of protection: IP67, Housing: PBT. Switching function: Normally open/closed (NO/NC) programmable. Output type: AS-Interface. Rated operating distance: 3 mm. Installation: flush mountable. Assured operating distance: 0 ... 2.43 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.45. Reduction factor r304: 1. Reduction factor rSt37: 1.2. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Operating voltage: 26.5 ... 31.9 V via AS-i bus system. Switching frequency: 0 ... 100 Hz. No-load supply current: ≤ 35 mA. MTTFd: 842 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. LED PWR: AS-Interface voltage; LED green. LED IN: switching state (input); LED yellow. LED OUT: binary LED yellow/redyellow: switching statered: lead breakage/short-circuit. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: 100 mA. Standard conformity: . Electromagnetic compatibilityEN 50295:1999-10StandardsEN IEC 60947-5-2: . Electromagnetic compatibility: EN 50295:1999-10. Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 31.9 V DC. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection (system side): screw terminals. Core cross section (system side): 1.5/2.5 mm2 flexible/rigid. Connection (valve side): screw terminals. Core cross section (valve side): 1.5/2.5 mm2 flexible/rigid. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Material: . HousingPBT: . Housing: PBT. Tightening torque, fastening screws: ≤ 5 Nm. Tightening torque, housing screws: 1 Nm. Tightening torque, cable gland: M20 x 1.5 ; max. 7 Nm M12 x 1.5 ; max. 1.5 Nm. Dimensions: . Height35.5 mmWidth65 mmLength77.5 mm: . Height: 35.5 mm. Width: 65 mm. Length: 77.5 mm. Note: valve voltage limited to 26,4 V max.; valve power 2,5 W max.

Brand	Pepperl Fuchs
Lifecycle status	active
