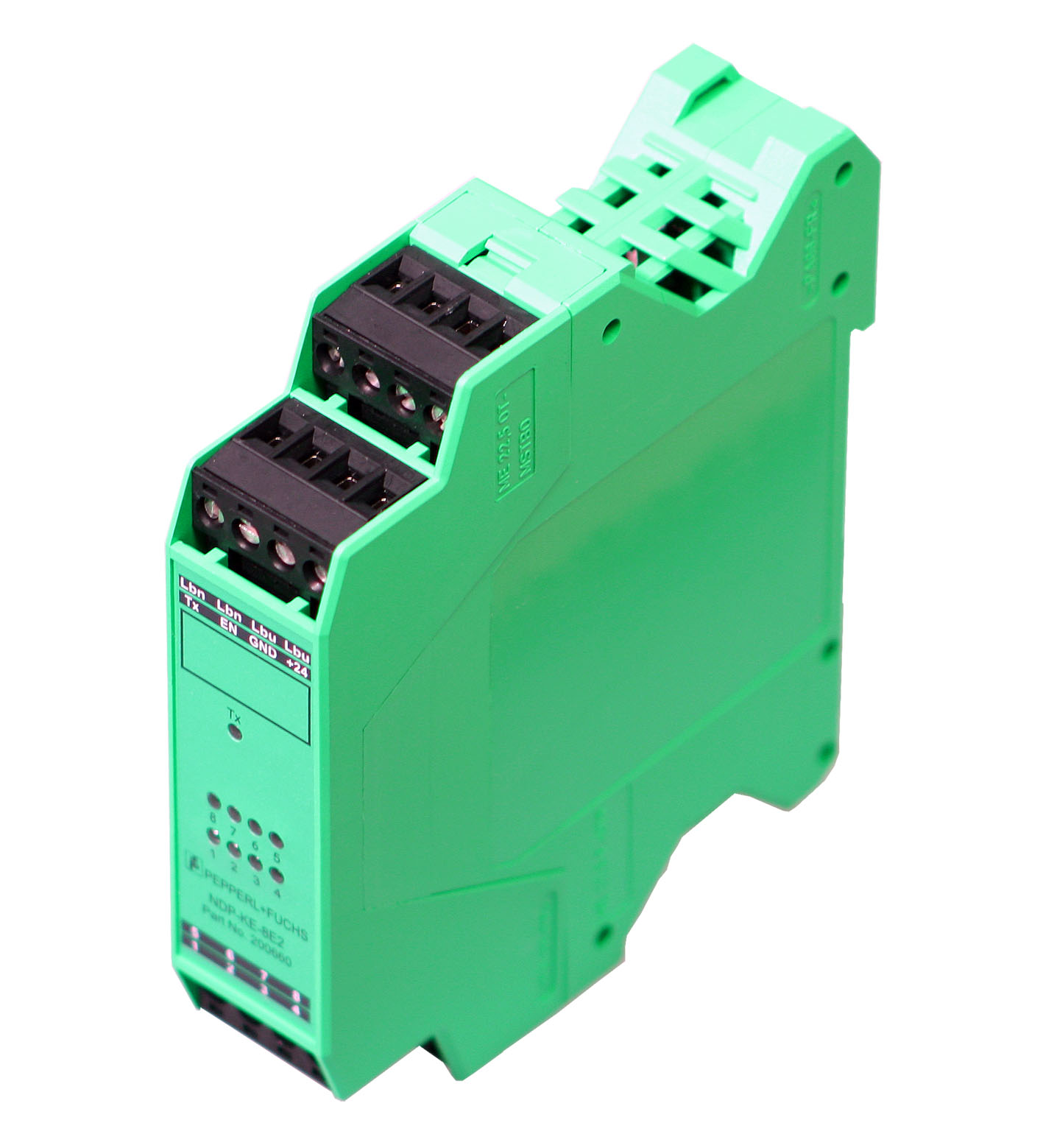

NDP-KE2-8E2-FP

WIS module primary. Operating voltage: 24 V DC ± 10 %. Number of signal channels: 8. Signal transfer direction: from secondary side to primary side. Reverse polarity protection: reverse polarity prote...

WIS module primary. Operating voltage: 24 V DC ± 10 %. Number of signal channels: 8. Signal transfer direction: from secondary side to primary side. Reverse polarity protection: reverse polarity protected. Current consumption: max. 1000 mA. MTTFd: 245 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Switching state: 8 x LED, yellow. Transfer indicator: LED, green. Number: 1. Input type: Activation inputsignal level: ≥ 15 V = active, ≤ 3 V inactive. Input current: ≤ 1 mA. Internal resistor: ≥ 15 kΩ. Output type: 1 Status output (high with proper transfer) and 8 Switch outputs PNP, NO. (switched high) , overload and short-circuit resistant. Voltage drop: ≤ 2.5 V. Load current: max. 50 mA. Response time: ≤ 200 ms ( static operation , the transmission heads stand opposite to each other ). Directive conformity: . EMC Directive 89/336/EECEN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999: . EMC Directive 89/336/EEC: EN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Installation: DIN rail mounting. Mass: 106 g. Note: Maximum cable length between WIS module and WIS transmitter must not exceed 5 m.

Brand	Pepperl Fuchs
Lifecycle status	active
