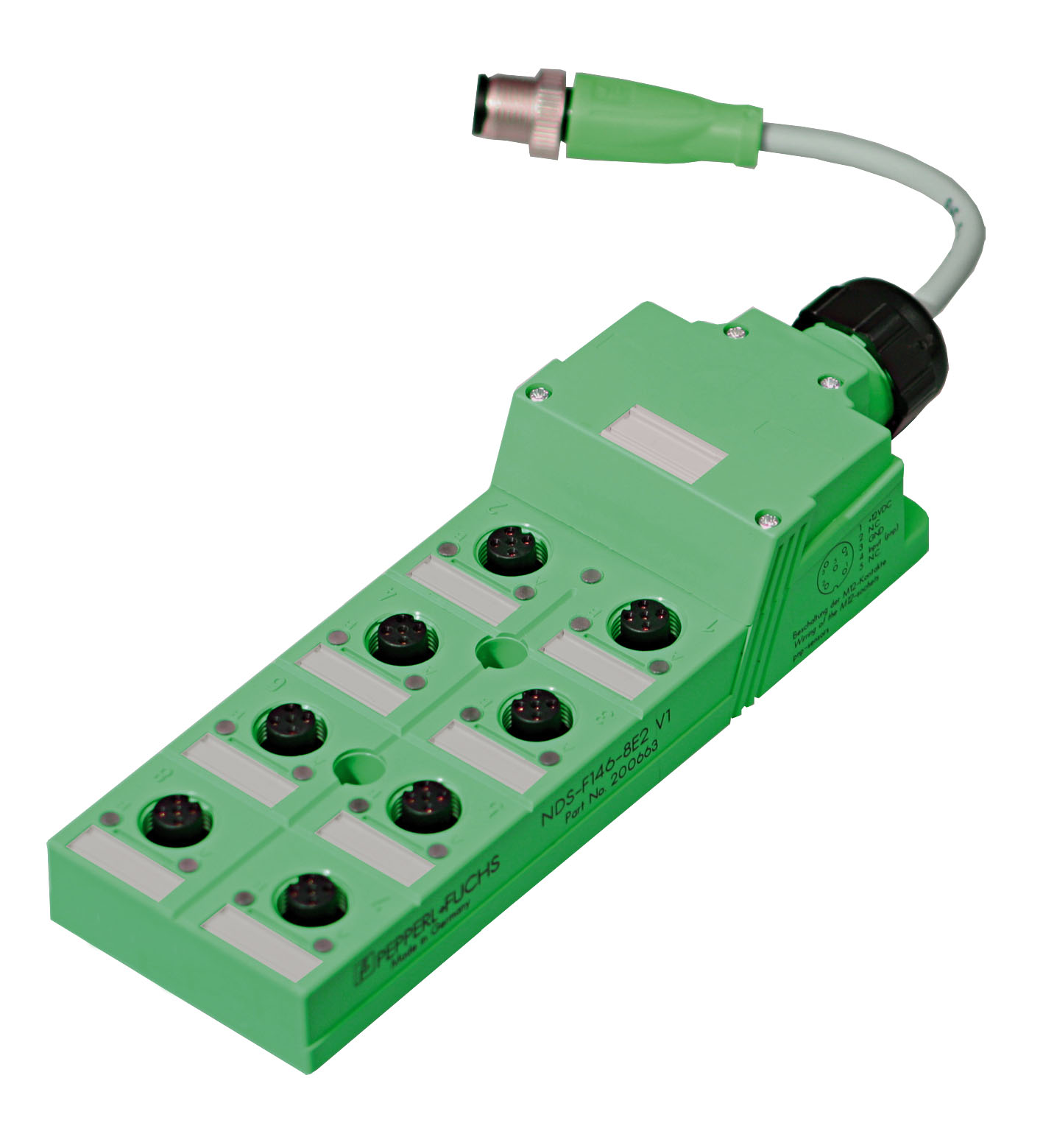

NDS-F146-8E2-V1

WIS module secondary. Number of signal channels: 8. Signal transfer direction: from secondary side to primary side. Sensor supply voltage: 12 V ± 10 % , overload and short-circuit resistant. Ripple: ≤...

WIS module secondary. Number of signal channels: 8. Signal transfer direction: from secondary side to primary side. Sensor supply voltage: 12 V ± 10 % , overload and short-circuit resistant. Ripple: ≤ 5 %. Transfer power: max. 2.5 W (1.5 W at 5 mm). Load step: ≤ 100 mA. MTTFd: 465 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Number: 8. Input type: Input for sensor signals. Connectable sensor types: DC, 3-wire , PNP ( switched high ). Input current: ≤ 1 mA. Internal resistor: ≥ 15 kΩ. Directive conformity: . EMC Directive 89/336/EECEN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999: . EMC Directive 89/336/EEC: EN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP65. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Installation: screw mounting. Mass: 140 g. Note: Maximum cable length between WIS module and WIS transmitter must not exceed 5 m.

Brand	Pepperl Fuchs
Lifecycle status	active
