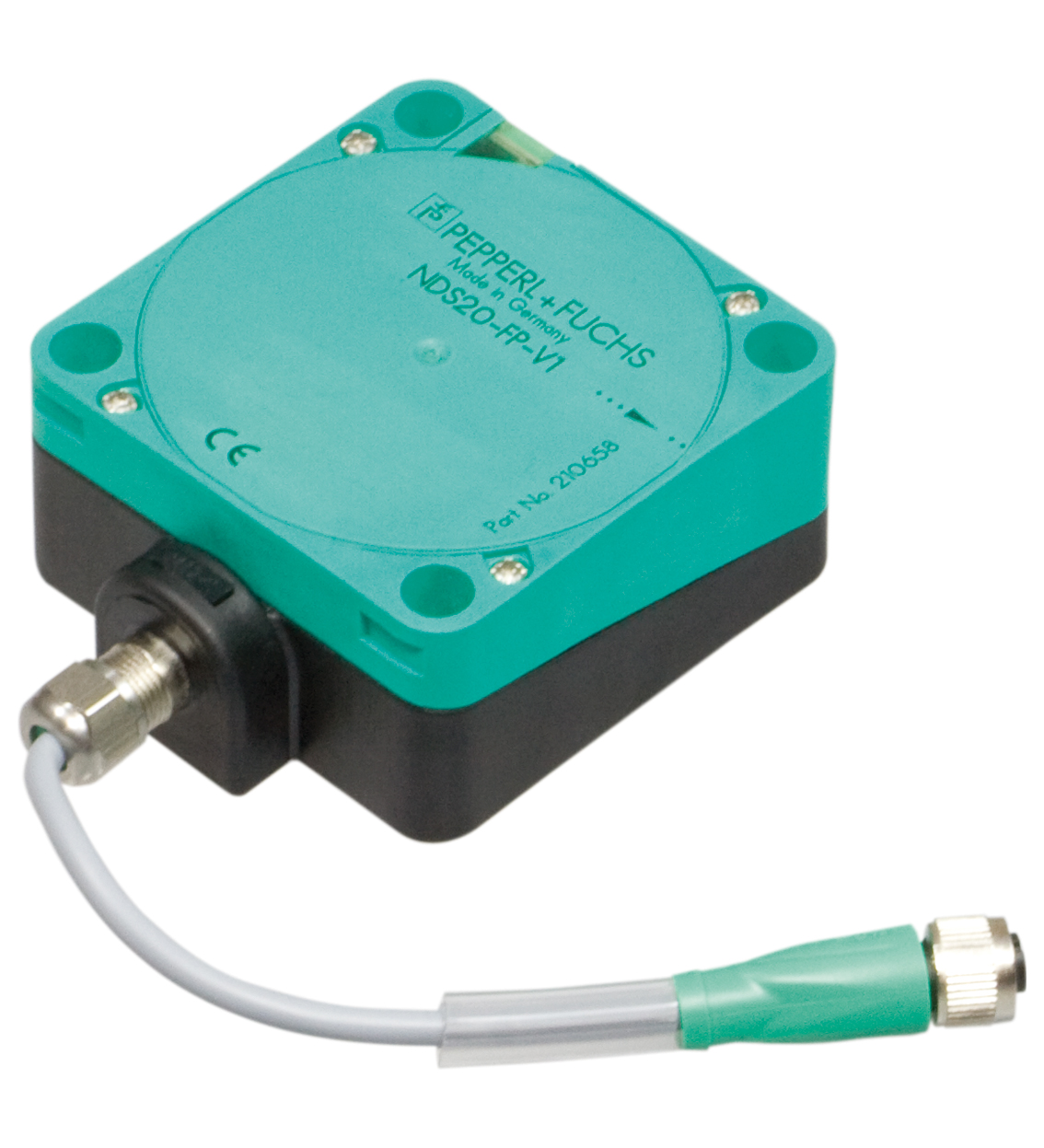

NDS20-FP-V1

WIS transmitter secondary. Installation: non-flush. Transfer distance: 0 ... 20 mm. Directive conformity: . EMC Directive 89/336/EECEN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999: . EMC Directive...

WIS transmitter secondary. Installation: non-flush. Transfer distance: 0 ... 20 mm. Directive conformity: . EMC Directive 89/336/EECEN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999: . EMC Directive 89/336/EEC: EN 61000-6-2:2001, EN 61000-6-4:2001, EN 50295:1999. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Core cross section: ≥ 0.5 mm2. Housing material: PBT. Sensing face: PBT. Housing base: PBT. Degree of protection: IP67. Installation: screw mounting. Spacing to metal wallsB≥ 150 mmSecurity zoneW x H≥ 150 mm x 25 mm: B. Spacing to metal walls: ≥ 150 mm. Security zone: ≥ 150 mm x 25 mm. Dimensions: . Height80 mmWidth80 mmLength40 mm: . Height: 80 mm. Width: 80 mm. Length: 40 mm. Note: Maximum cable length between WIS module and WIS transmitter must not exceed 5 m.

Brand	Pepperl Fuchs
Lifecycle status	active
