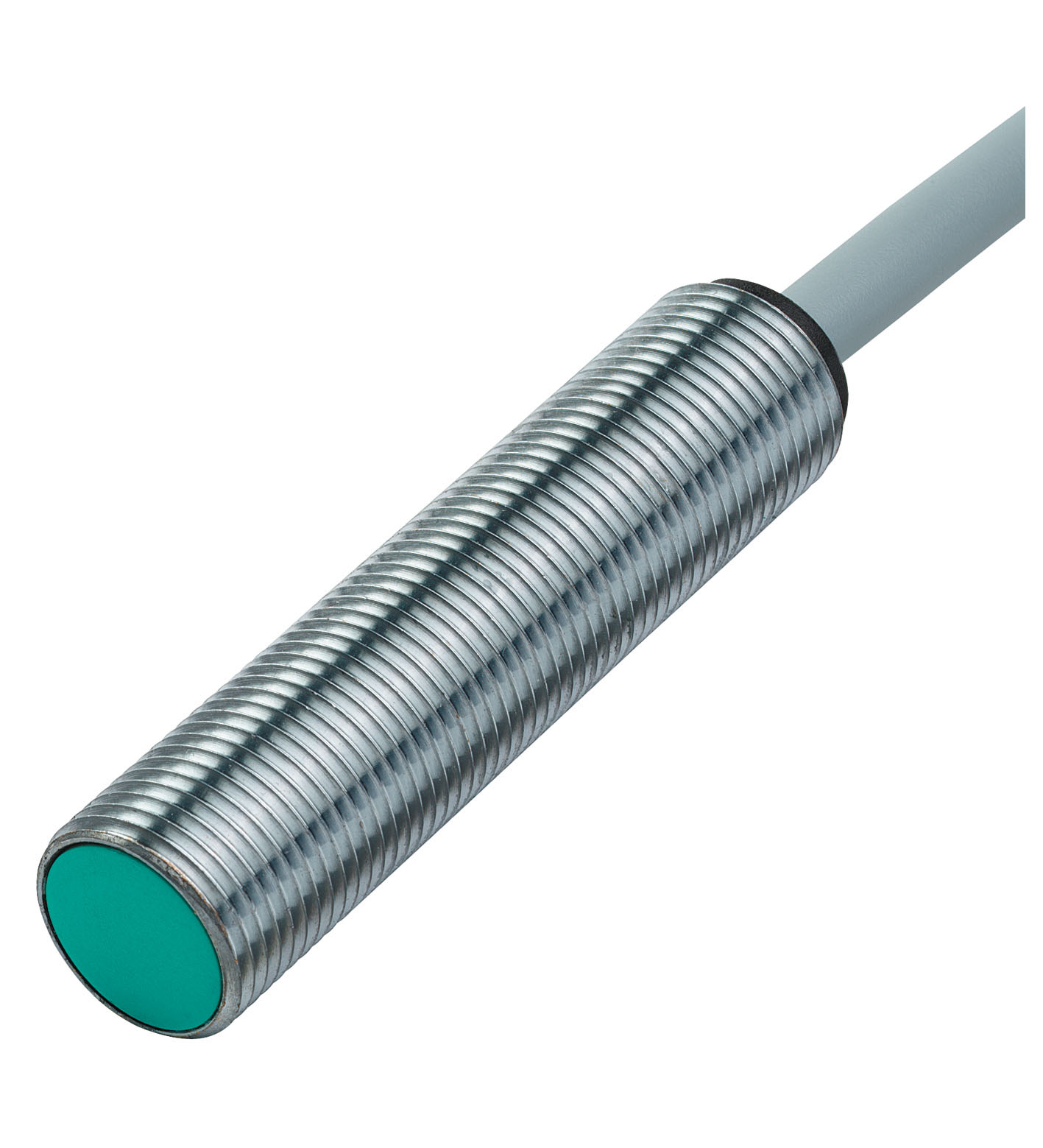

NEB6-12GM50-E2

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: quasi flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, threa...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: quasi flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: brass, nickel-plated, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 6 mm. Installation: quasi flush. Output polarity: DC. Assured operating distance: 0 ... 4.8 mm. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm. Reduction factor rAl: 0.28. Reduction factor rCu: 0.2. Reduction factor r304: 0.7. Reduction factor rBrass: 0.35. Output type: 3-wire. Installation conditions: . Ain steel 1.0037 (St37): 2.4 mm in other metal: 1.2 mmB12 mmC18 mmF24 mm: . A: in steel 1.0037 (St37): 2.4 mm in other metal: 1.2 mm. B: 12 mm. C: 18 mm. F: 24 mm. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 800 Hz. Hysteresis: 0.06 ... 1.2 mm. Reverse polarity protection: yes. Short-circuit protection: pulsing. Overload resistance: yes. Wire breakage protection: yes. Surge suppression: yes. Ripple: 10 %. Voltage drop: ≤ 2 V. Repeat accuracy: 0.3 mm. Operating current: 0 ... 200 mA , above 70°C max. 150 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 50 ms. Switching state indicator: LED, yellow. MTTFd: 1740 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.3 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.3 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Mass: 80 g. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
