Pepperl Fuchs

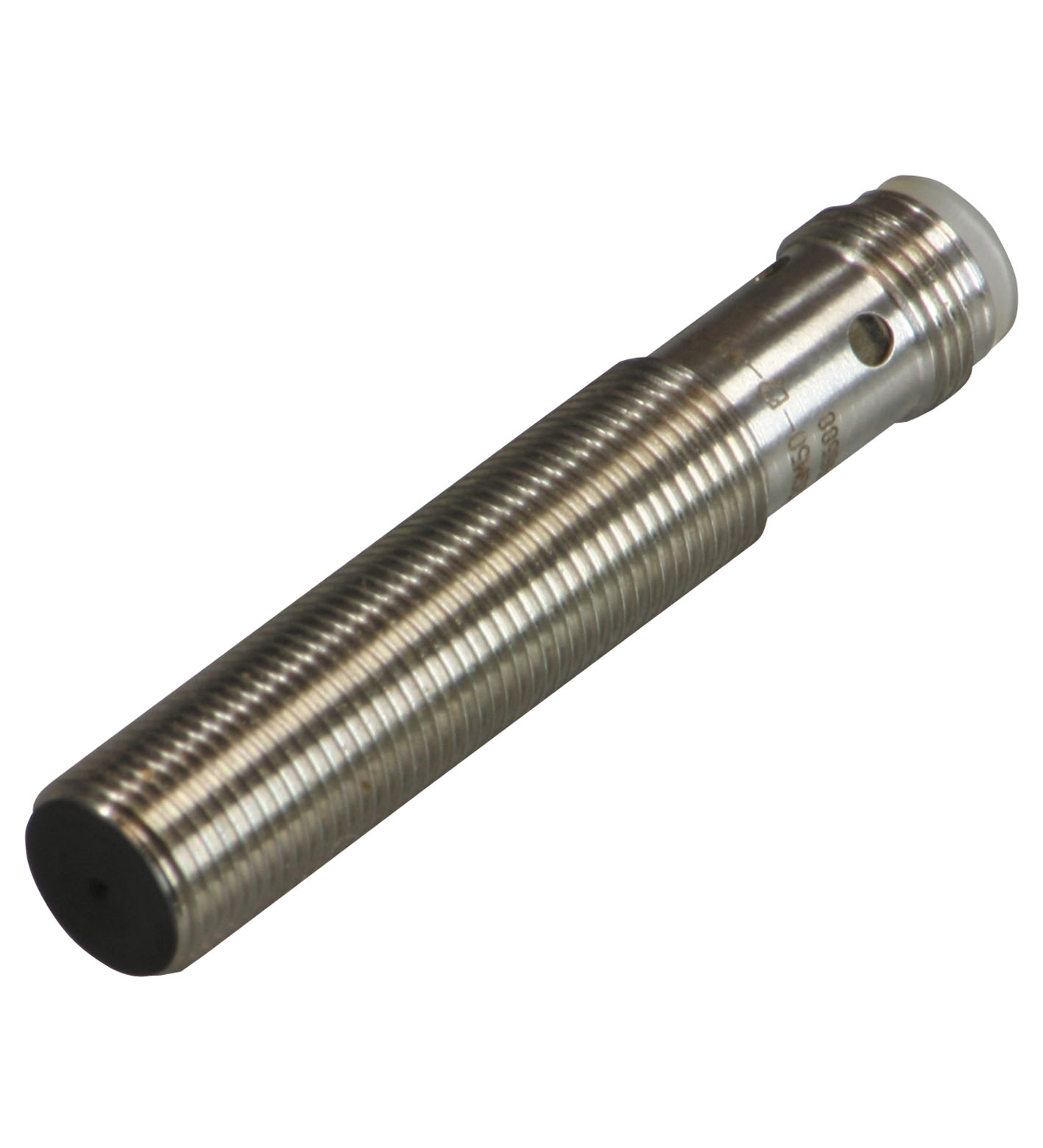

NEB8-12GM50-E2-V1

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: quasi flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: chromium plated brass, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 8 mm. Installation: quasi flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.25. Reduction factor r304: 0.7. Reduction factor rSt37: 1. Output type: 3-wire. Installation conditions: . A2 mmB14 mmC24 mmF46 mm: . A: 2 mm. B: 14 mm. C: 24 mm. F: 46 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 400 Hz. Hysteresis: ≤ 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.1 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 10 mA. Switching state indicator: LED, yellow. MTTFd: 602 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CSA approval: cCSAus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: chromium plated brass. Sensing face: PBT. Degree of protection: IP67. Protection class: II. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 34 g. Dimensions: . Length60 mmDiameter12 mm: . Length: 60 mm. Diameter: 12 mm. Tightening torque: ≤ 10 Nm (6 Nm for the first 10 mm thread length)

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
