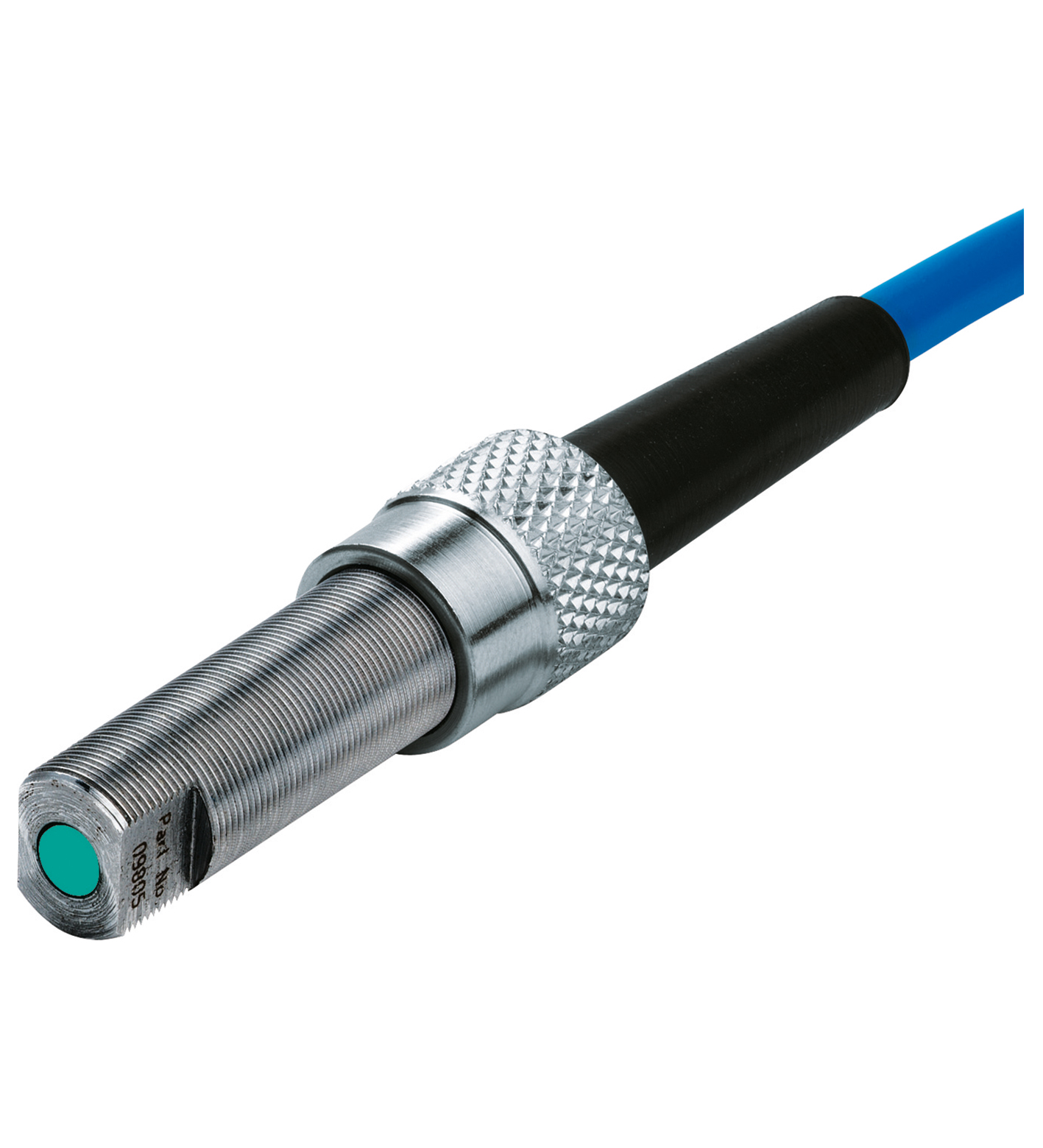

NJ0,2-10GM-N

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Thread mold: M10, Construction type: Cylindrical, thread, Series: Cylindrical...

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Thread mold: M10, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Special steel, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 0.2 mm. Installation: flush. Assured operating distance: 0 ... 0.2 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 2-wire. Nominal voltage: 8 V. Operating voltage: 5 ... 25 V. Switching frequency: 0 ... 100 Hz. Hysteresis: typ. %. Current consumption: . Measuring plate not detectedmin. 3 mAMeasuring plate detected≤ 1 mA: . Measuring plate not detected: min. 3 mA. Measuring plate detected: ≤ 1 mA. MTTFd: 11770 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Axial load, max.: 0 ... 1200 N. Connection type: cable. Housing material: Special steel. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores2Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 2. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Length27 mmDiameter10 mm: . Length: 27 mm. Diameter: 10 mm. Scope of delivery: supplied with 1 nut

Brand	Pepperl Fuchs
Lifecycle status	active
