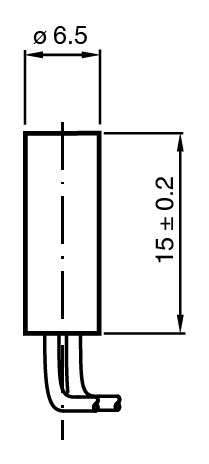

NJ1,5-6,5-15-N-Y180094

Inductive sensor. Suitable for 2:1 technology, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cyl...

Inductive sensor. Suitable for 2:1 technology, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Suitable for 2:1 technology, Safety Integrity Level (SIL): SIL 2, Type of voltage: DC, Equipment protection level Gb: IECEx PTB 11.0037X, Equipment protection level Da: IECEx PTB 11.0037X, Equipment protection level Mb: IECEx PTB 11.0037X, Equipment protection level Gb: PTB 00 ATEX 2048 X. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 1.5 mm. Installation: flush. Assured operating distance: 0 ... 1.35 mm. Reduction factor rAl: 0.22. Reduction factor rCu: 0.19. Reduction factor r304: 0.65. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Switching frequency: 0 ... 5000 Hz. Hysteresis: typ. 5%. Suitable for 2:1 technology: yes , Reverse polarity protection diode not required. Current consumption: . Measuring plate not detected≥ 2.2 mAMeasuring plate detected≤ 0.95 mA: . Measuring plate not detected: ≥ 2.2 mA. Measuring plate detected: ≤ 0.95 mA. Safety Integrity Level (SIL): SIL 2. Standard conformity: . NAMUREN 60947-5-6 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. IECEx approval: . Equipment protection level GbIECEx PTB 11.0037XEquipment protection level DaIECEx PTB 11.0037XEquipment protection level MbIECEx PTB 11.0037X: . Equipment protection level Gb: IECEx PTB 11.0037X. Equipment protection level Da: IECEx PTB 11.0037X. Equipment protection level Mb: IECEx PTB 11.0037X. ATEX approval: . Equipment protection level GbPTB 00 ATEX 2048 XEquipment protection level DaPTB 00 ATEX 2048 X: . Equipment protection level Gb: PTB 00 ATEX 2048 X. Equipment protection level Da: PTB 00 ATEX 2048 X. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. CCC approval: . Hazardous Location2020322315002256: . Hazardous Location: 2020322315002256. CML approval: on request. ANZEx: 18.3018X. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: flexible leads PVC. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Cable: . MaterialPVCCore cross section0.14 mm2LengthL110 mm: . Material: PVC. Core cross section: 0.14 mm2. Length: 110 mm. Dimensions: . Length15 mmDiameter6.5 mm: . Length: 15 mm. Diameter: 6.5 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
