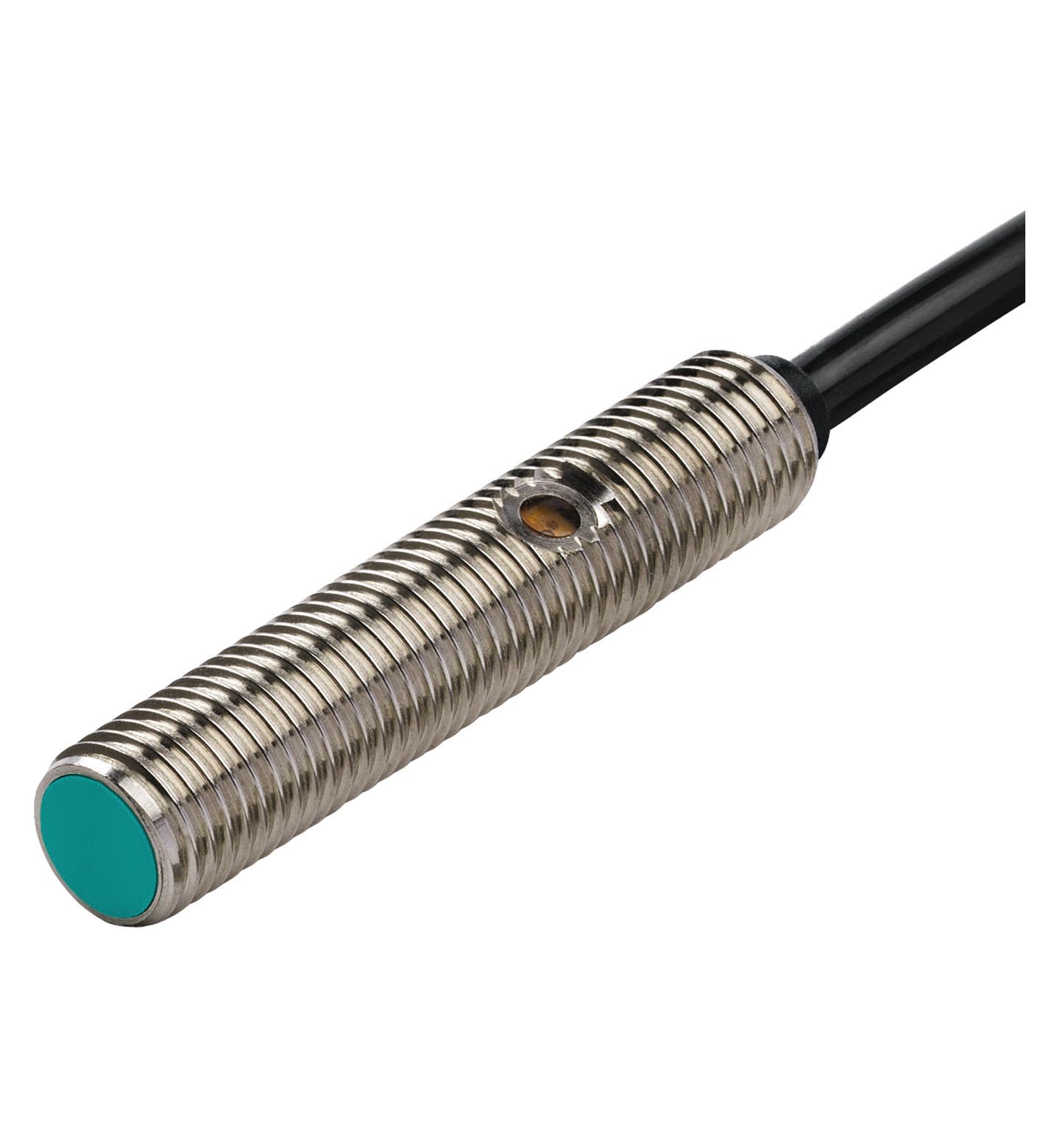

NJ1,5-8GM40-E2-0,14M-V1

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Seri...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.215 mm. Reduction factor rAl: 0.25. Reduction factor rCu: 0.2. Reduction factor r304: 0.7. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 500 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 20 mA. Switching state indicator: LED, yellow. MTTFd: 2190 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: fixed cable with plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: LCP. Degree of protection: IP67. Connector: . ThreadingM12 x 1Tightening torque≤ 0.6 NmNumber of pins3: . Threading: M12 x 1. Tightening torque: ≤ 0.6 Nm. Number of pins: 3. Cable: . Cable diameter3.5 mm ± 0.1 mmBending radius> 10 x cable diameterMaterialPURColorgreyNumber of cores3Core cross section0.14 mm2LengthL0.14 m: . Cable diameter: 3.5 mm ± 0.1 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 0.14 m. Mass: 30 g. Dimensions: . Length40 mmDiameter8 mm: . Length: 40 mm. Diameter: 8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
