Pepperl Fuchs

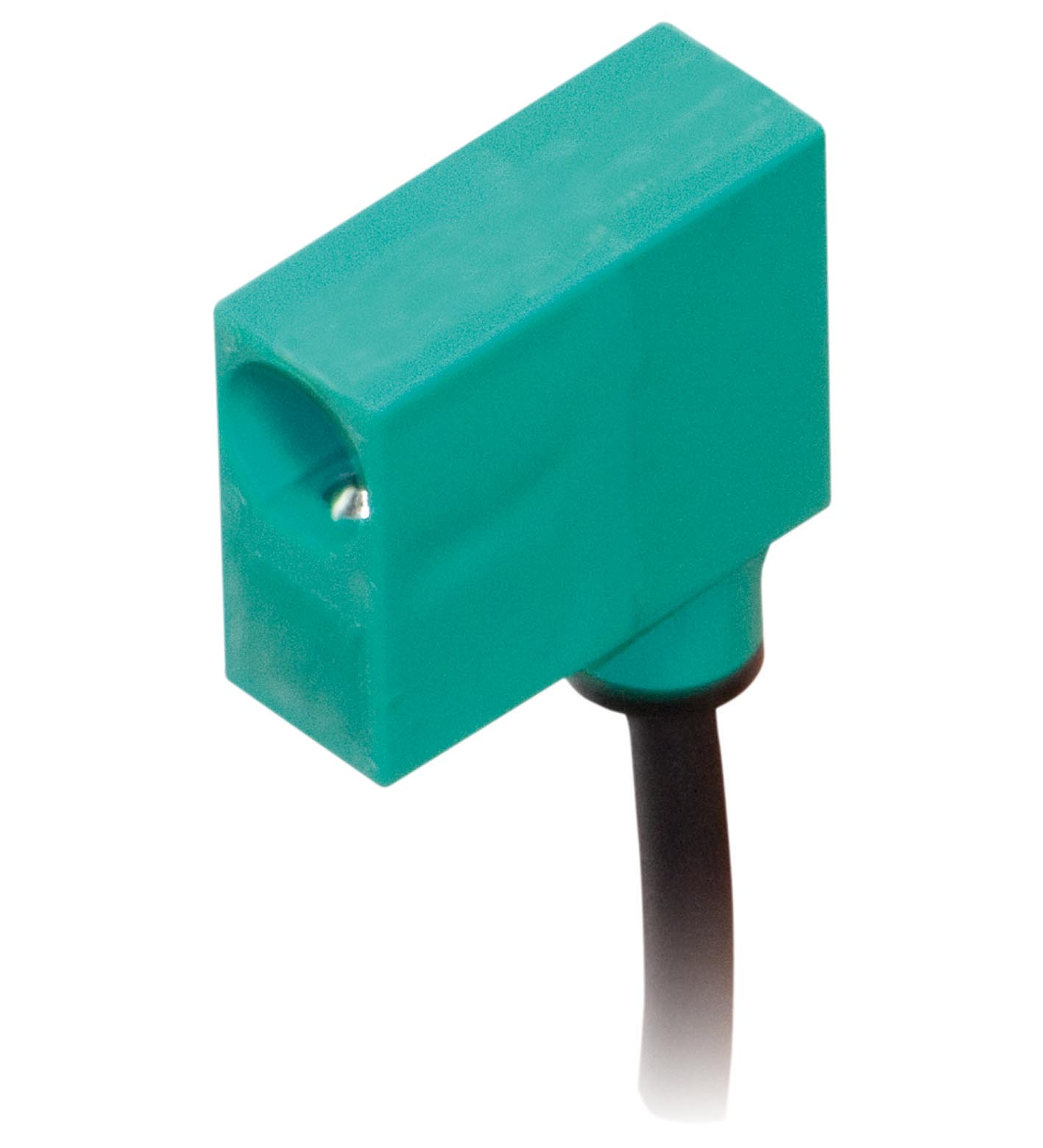

NJ1,5-F2-E2

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PA, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 1.5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.215 mm. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 1000 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 15 mA. Switching state indicator: LED, red. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: PA. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height25 mmWidth14 mmLength31.5 mm: . Height: 25 mm. Width: 14 mm. Length: 31.5 mm. Note: Use a stop screw combined with a model -F2 sensor from Pepperl+Fuchs GmbH. The maximum actuation speed of the control slide is 0.1 m/s

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
