Pepperl Fuchs

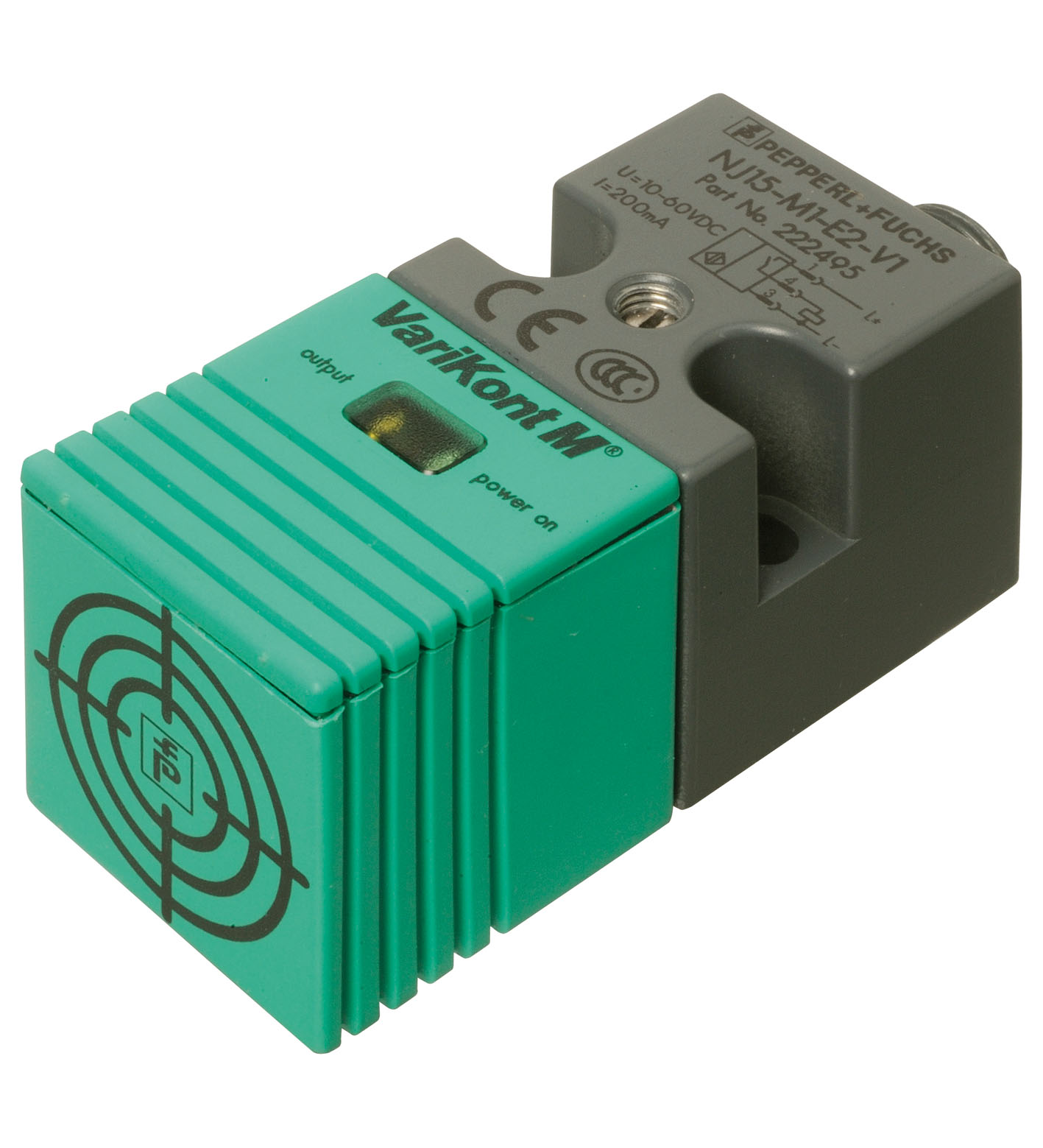

NJ15-M1-E2-V1

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: VariKont M ®, Series: VariKont M ®, Operating voltage: 10 ... 60 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: PBT/metal RAL 7011, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 15 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 12.15 mm. Actual operating distance: 13.5 ... 16.5 mm typ. 15 mm. Reduction factor rAl: 0.39. Reduction factor rCu: 0.36. Reduction factor r304: 0.73. Output type: 3-wire. Operating voltage: 10 ... 60 V DC. Switching frequency: 0 ... 200 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: yes. Short-circuit protection: pulsing. Voltage drop: ≤ 2.5 V. Voltage drop at IL: . Voltage drop IL = 200 mA, switching element onUd1 ... 2.5 V typ. 2.2 V: Ud. Voltage drop IL = 200 mA, switching element on: 1 ... 2.5 V typ. 2.2 V. Rated insulation voltage: 500 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 14 mA. Time delay before availability: ≤ 50 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. MTTFd: 932 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: PBT/metal RAL 7011. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height30 mmWidth30 mmLength62 mm: . Height: 30 mm. Width: 30 mm. Length: 62 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
