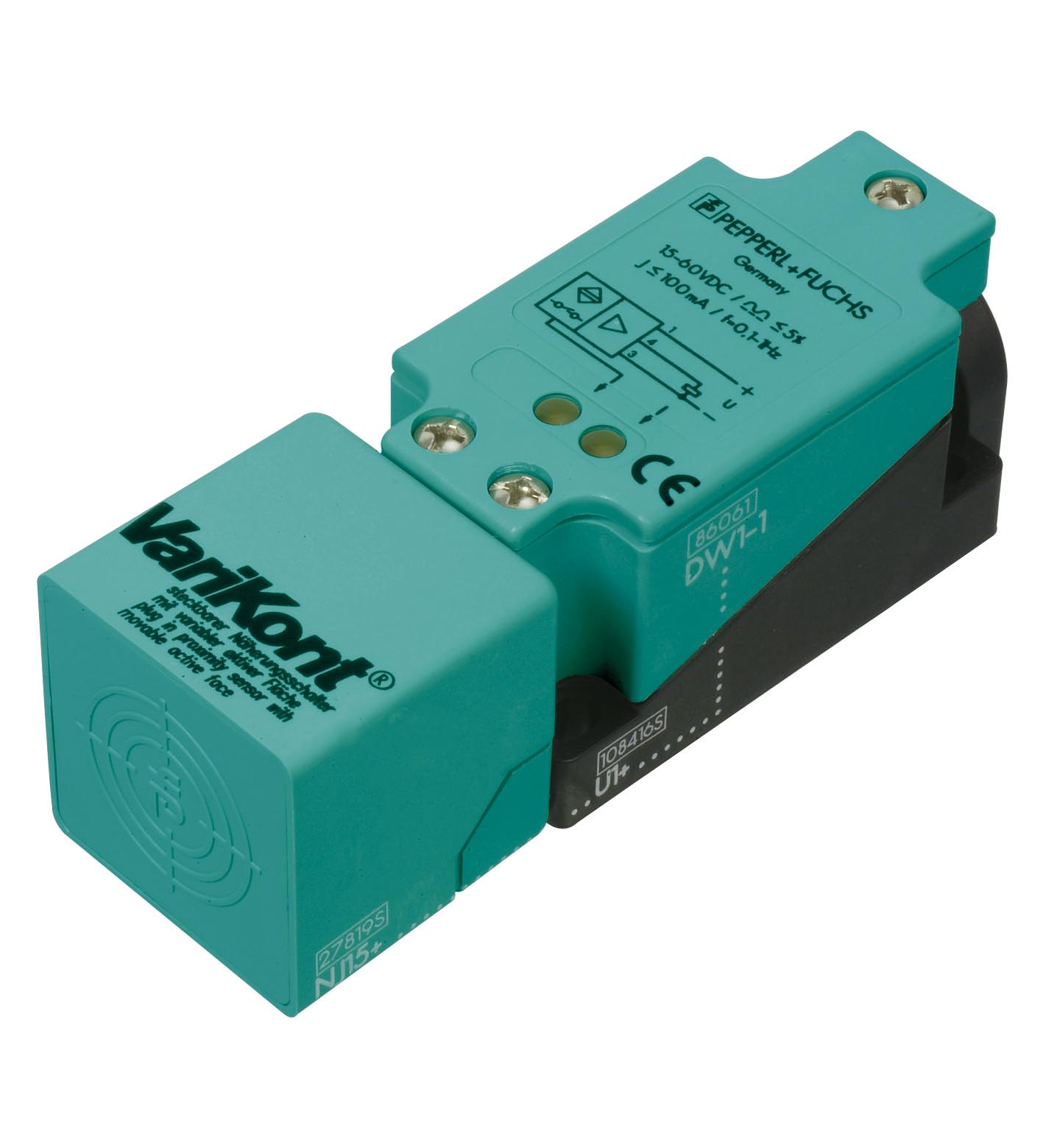

NJ15+U1+DW1-1
Inductive rotation speed monitor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKont</i> <sup>®</su...
Inductive rotation speed monitor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKont</i> <sup>®</sup>, Series: <i>VariKont</i> <sup>®</sup>, Operating voltage: 15 ... 60 V DC, Type of voltage: DC, Connection type: screw terminals, Housing material: PBT, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Frequency range: 0.1 ... 1 Hz , adjustable. Rated operating distance: 15 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 12.15 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 3-wire. Operating voltage: 15 ... 60 V DC. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 25 mA. Switching state indicator: LED 1: yellow. Damping indicator: LED 2: yellow. MTTFd: 820 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 100 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: screw terminals. Information for connection: A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %. Core cross section: up to 2.5 mm2. Minimum core cross-sectionwithout wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2Maximum core cross-sectionwithout wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2: . Minimum core cross-section: without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2. Maximum core cross-section: without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Dimensions: . Height40 mmWidth40 mmLength118 mm: . Height: 40 mm. Width: 40 mm. Length: 118 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
