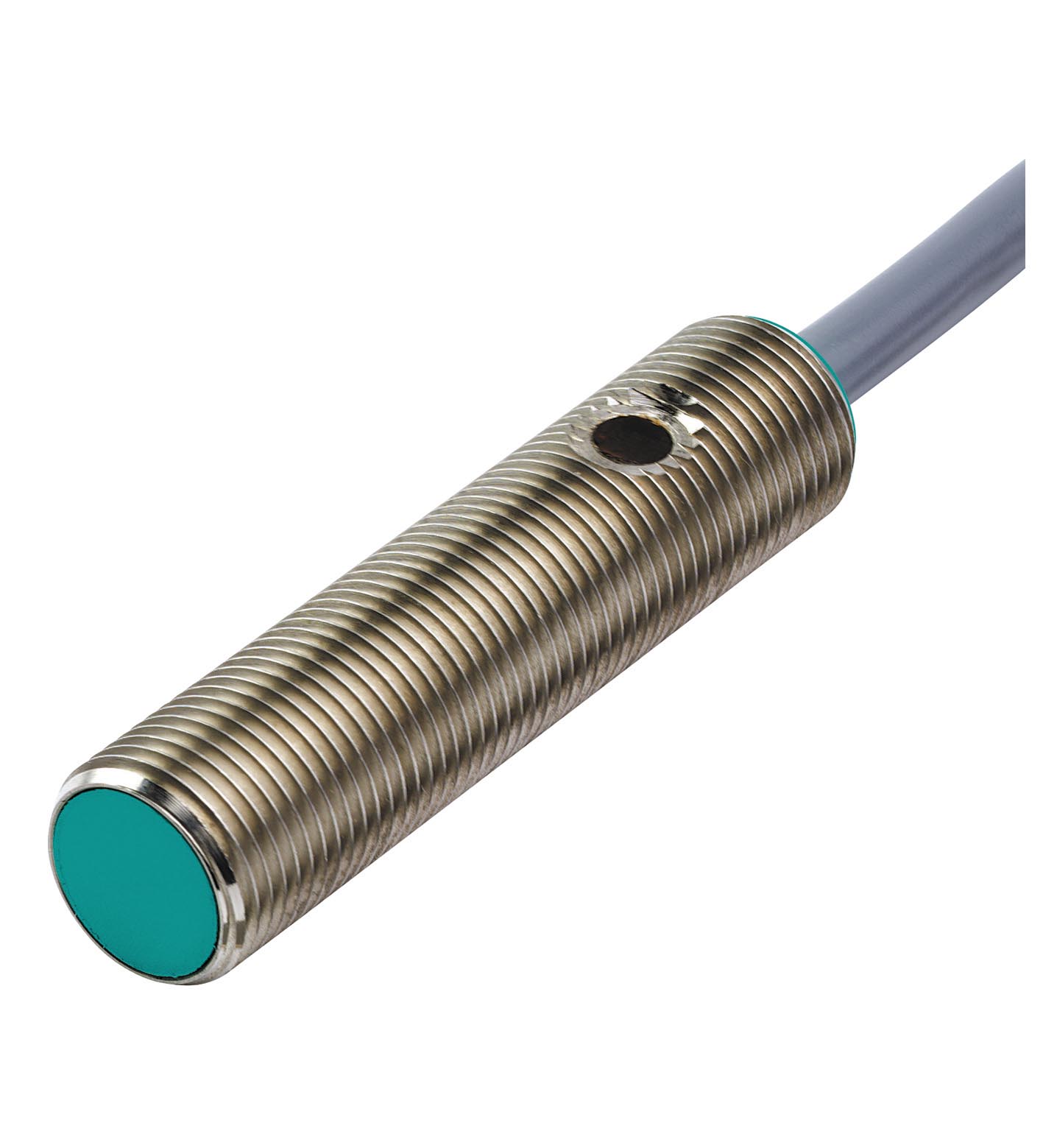

NJ2-12GM50-WO-6M

Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thre...

Inductive sensor. Switching function: Normally closed (NC), Output type: Two-wire, Installation: flush, Output polarity: AC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: AC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: Two-wire. Rated operating distance: 2 mm. Installation: flush. Output polarity: AC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 0.1. Reduction factor rCu: 0.1. Reduction factor r304: 0.6. Output type: 2-wire. Operating voltage: 20 ... 250 V. Switching frequency: 0 ... 20 Hz. Reverse polarity protection: reverse polarity tolerant. Voltage drop: typ. 4 V at 15 ... 200 mAtyp. 6.5 V at 5 mA. Momentary current(20 ms, 0.1 Hz): 0 ... 1200 mA. Operating current: 5 ... 200 mA. Off-state current: typ. 0.7 mA. Time delay before availability: ≤ 30 ms. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Enclosure Type Rating: Type 1 Supply/Switching Voltage: 250 V AC Output Switching Current: 200 mA. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.34 mm2LengthL6 m: . Wire end ferrules: yes. Cable diameter: 4.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Length: 6 m. Dimensions: . Length50 mmDiameter12 mm: . Length: 50 mm. Diameter: 12 mm. Note: 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V Safety fuse ≤ 2 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.. Scope of delivery: 2 self locking nuts in scope of delivery

Brand	Pepperl Fuchs
Lifecycle status	active
