Pepperl Fuchs

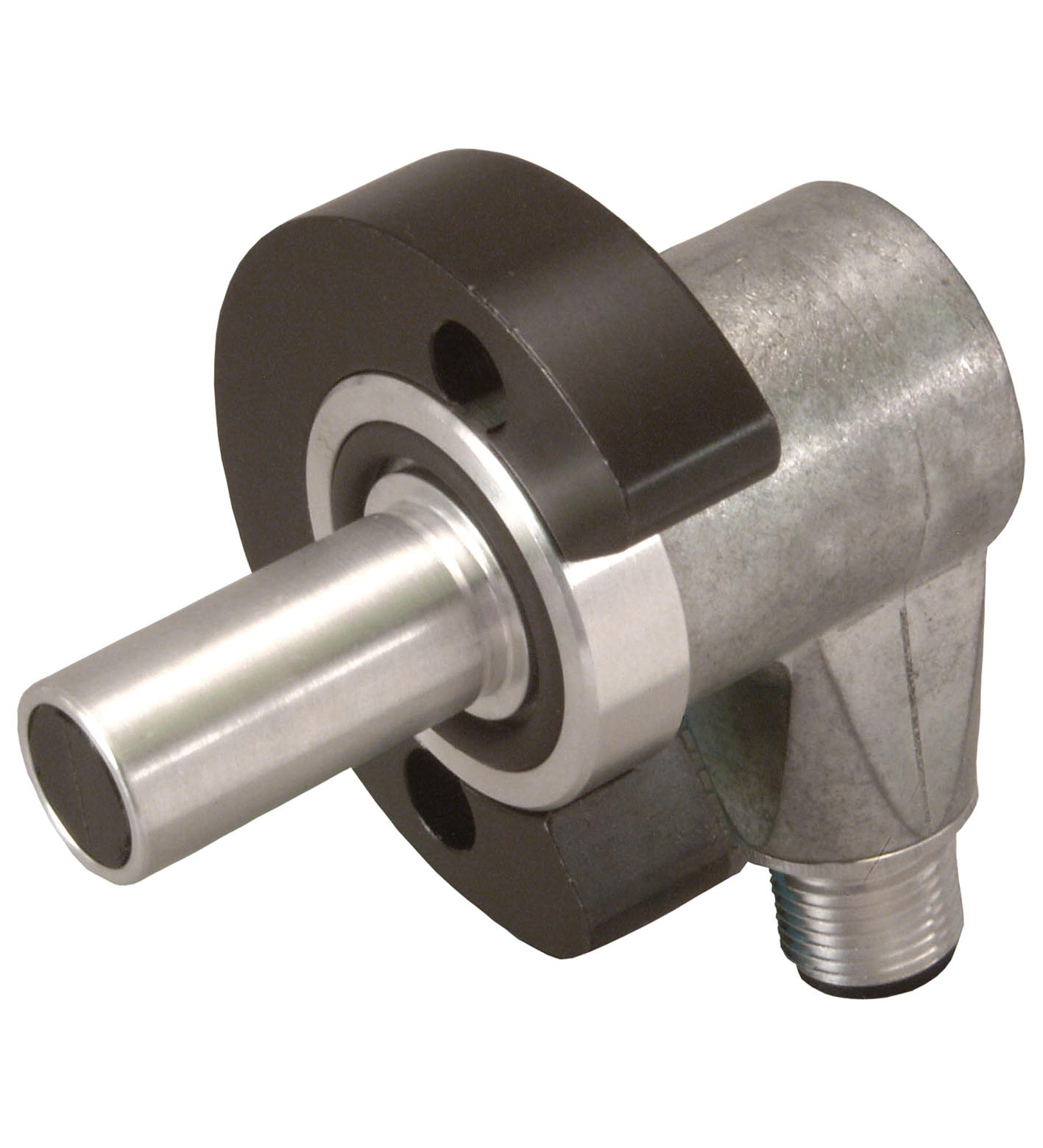

NJ2-D-US-1.500-V12

Inductive sensor. Weld immune proximity sensors, Compression proof, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC/DC, Output type: 2-wire, Construction type: Other, Series: Cylinder Position Switch, Rated operating voltage: 20 ... 250 V AC/DC, Connection type: Connector plug, Degree of protection: IP67, Material: Housing: zinc <BR>Probe: aluminum, Threading: 1/2"-20 UN. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 2 mm. Installation: flush. Output polarity: AC/DC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 0.4. Reduction factor r304: 0.85. Output type: 2-wire. Switching frequency: 0 ... 20 Hz. Hysteresis: 10 ... 20 % typ. 15 %. Reverse polarity protection: yes. Short-circuit protection: yes. Voltage drop: ≤ 7 V. Momentary current(20 ms, 0.1 Hz): max. 3 A. Rated operating current: 8 ... 300 mA AC/DC. Off-state current: < 1.7 mA. Mag. Field strength, AC fields: 250 mT. Mag. Field strength, DC fields: 100 mT. Operating pressure dynamically: 3000 psi. LED green: Power on. LED red: Output status. LED red/green: Short circuit/overload indication. Rated operating voltage: 20 ... 250 V AC/DC. Standards: EN 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Enclosure Type Rating: Type 1 Supply/Switching Voltage: 250 V AC/DC Output Switching Current: 300 mA. CSA approval: cCSAus Listed, General Purpose. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Degree of protection: IP67. Material: Housing: zinc Probe: aluminum. Connector: . Threading1/2"-20 UNNumber of pins3: . Threading: 1/2"-20 UN. Number of pins: 3. Mass: 195 g. Dimensions: . Length34.5 mmDiameter12.7 mm: . Length: 34.5 mm. Diameter: 12.7 mm. Note: X = 1.50 in (38.1 mm)

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
