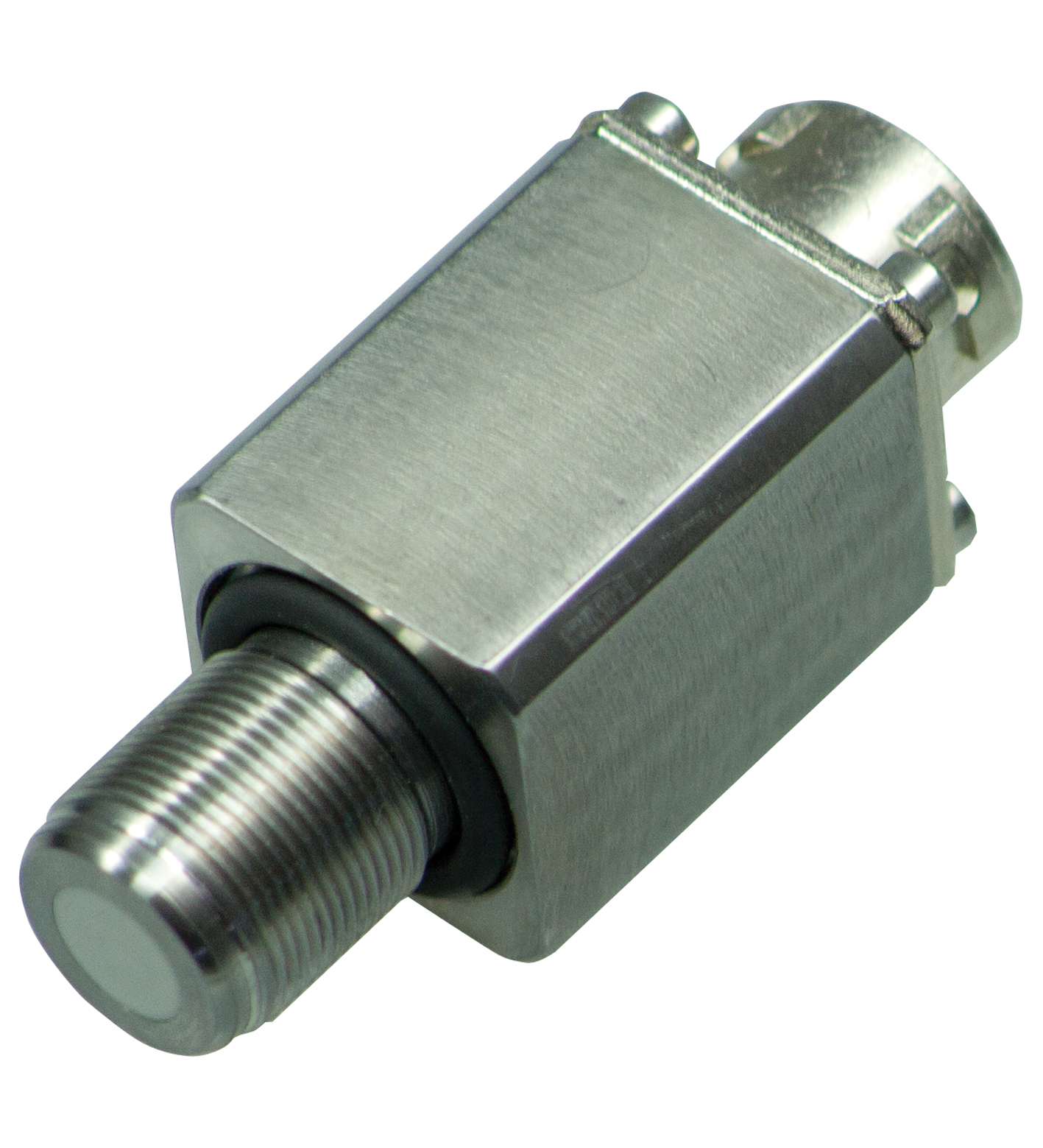

NJ2-N-H42

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Other, Series: Cylindrical type...

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Other, Series: Cylindrical type, Type of voltage: DC, Connection type: connector, ZH 630 603 00<br>Socket, ZH 632 603 00, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP50. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 1.5 mm. Installation: flush. Assured operating distance: 0 ... 1.22 mm. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.55. Output type: 2-wire. Nominal voltage: 8 V. Switching frequency: 0 ... 400 Hz. Hysteresis: typ. 5 %. Current consumption: . Measuring plate not detectedmin. 3 mAMeasuring plate detected≤ 1 mA: . Measuring plate not detected: min. 3 mA. Measuring plate detected: ≤ 1 mA. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. CSA approval: cCSAus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Connection type: connector, ZH 630 603 00Socket, ZH 632 603 00. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Ceramic. Degree of protection: IP50. Mass: 167 g. Dimensions: . Length50 mmDiameter18 mm: . Length: 50 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
