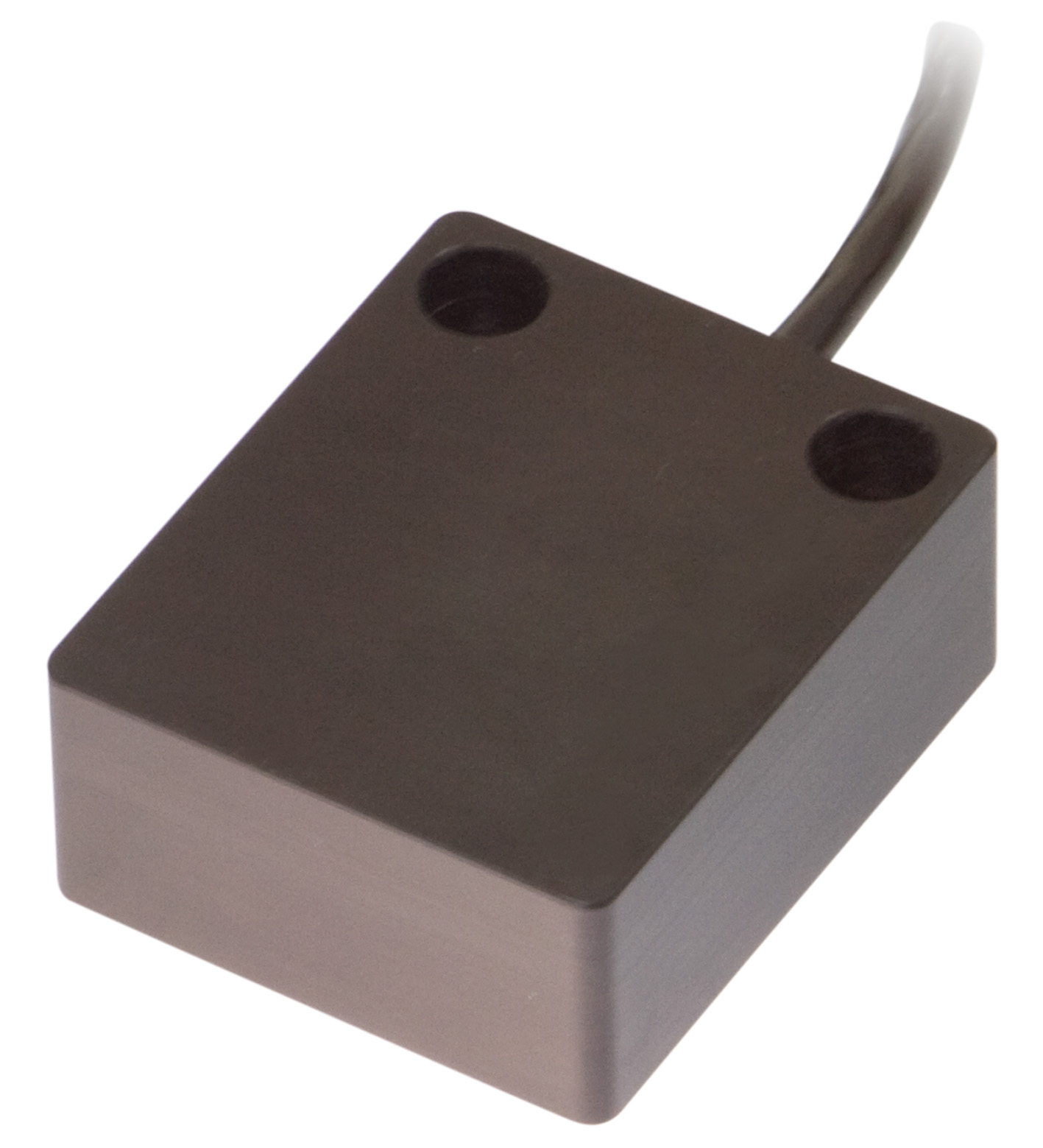

NJ20E-F34-E3-Y38055

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular,...

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PUR. Switching function: Normally closed (NC). Output type: PNP. Rated operating distance: 20 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 16.2 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.3. Reduction factor r304: 0.8. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 150 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.1 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 50 ms. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -35 ... 120 °C (-31 ... 248 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: PBT. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height24 mmWidth50 mmLength60 mm: . Height: 24 mm. Width: 50 mm. Length: 60 mm

Brand	Pepperl Fuchs
Lifecycle status	active
