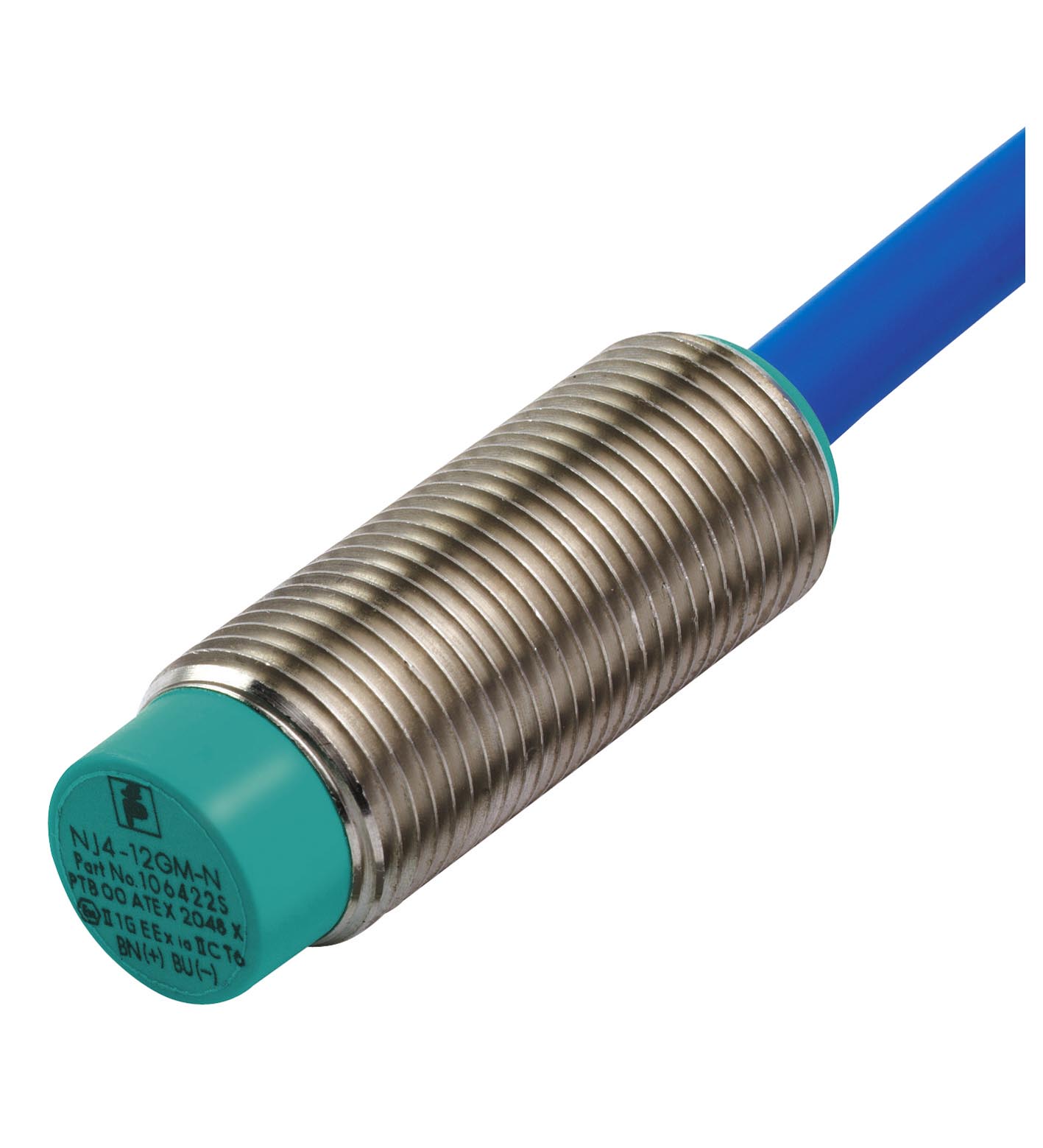

NJ4-12GM-Z11-2M-Y

Inductive sensor. Switching function: Normally closed (NC), Installation: non-flush, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of vo...

Inductive sensor. Switching function: Normally closed (NC), Installation: non-flush, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable PVC , 2 m with wire end ferrule, Housing material: brass, nickel-plated, Degree of protection: IP67. Switching function: Normally closed (NC). Rated operating distance: 4 mm. Installation: non-flush. Assured operating distance: 0 ... 3.24 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 2-wire. Nominal voltage: 12 V. Switching frequency: 0 ... 1500 Hz. Hysteresis: 3 %. Current consumption: . Measuring plate not detected≥ 3 mAMeasuring plate detected≤ 1 mA: . Measuring plate not detected: ≥ 3 mA. Measuring plate detected: ≤ 1 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable PVC , 2 m with wire end ferrule. Core cross section: 0.34 mm2. Housing material: brass, nickel-plated. Sensing face: PBT. Degree of protection: IP67. Dimensions: . Length30 mmDiameter12 mm: . Length: 30 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
