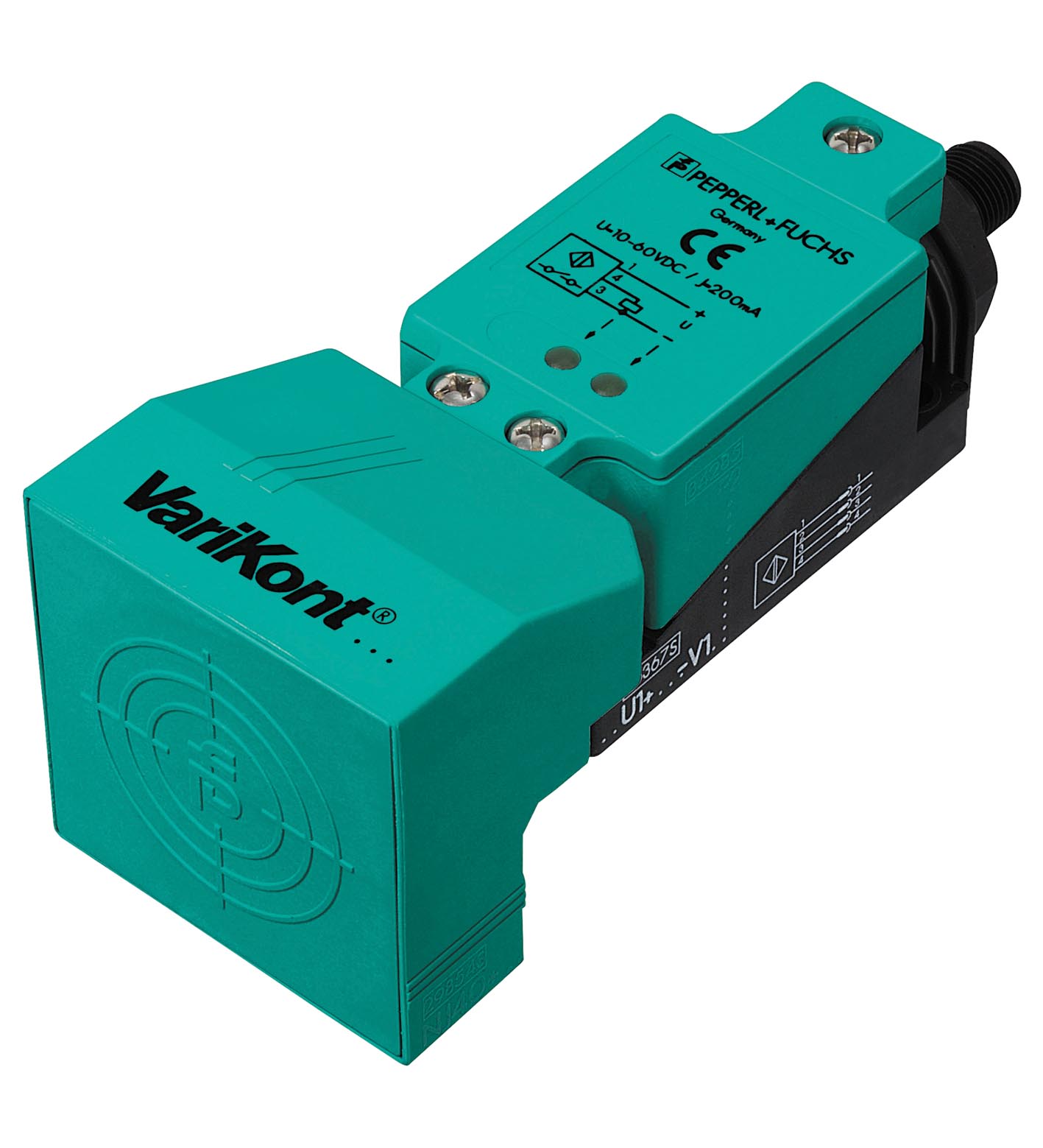

NJ40+U1+E2-T-V1

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKon...

Inductive sensor. Extended temperature range, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: <i>VariKont</i> ^®, Series: <i>VariKont</i> ^®, Type of voltage: DC, Connection type: Connector plug, Housing material: PBT, Degree of protection: IP68, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 40 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 32.4 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 3-wire. Operating voltage: 10 ... 60 V. Switching frequency: 0 ... 300 Hz. Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 20 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Connection type: Connector plug. Housing material: PBT. Sensing face: PBT. Degree of protection: IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 130 g. Dimensions: . Height55 mmWidth55 mmLength128 mm: . Height: 55 mm. Width: 55 mm. Length: 128 mm

Brand	Pepperl Fuchs
Lifecycle status	active
