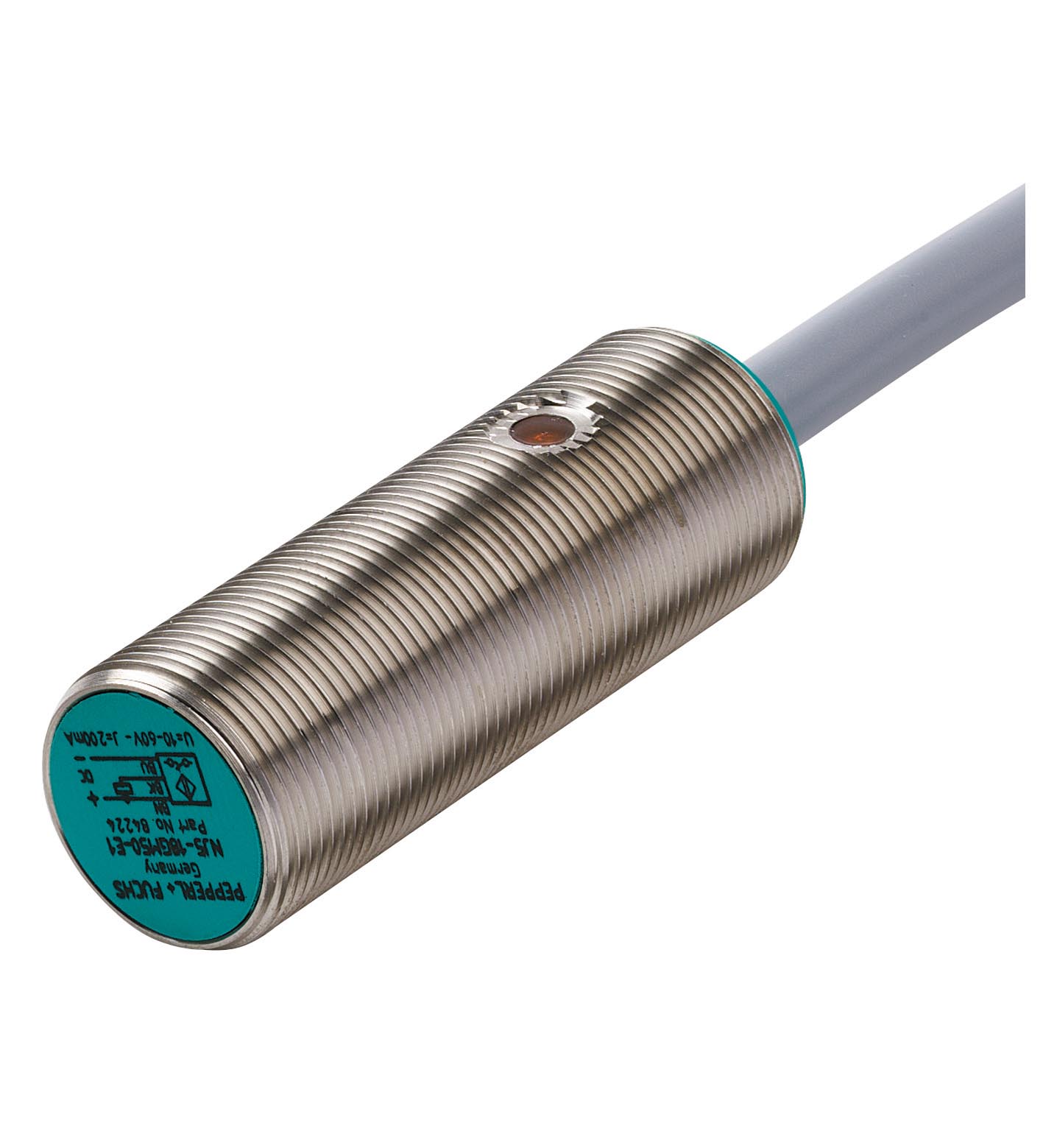

NJ5-18GM50-E

Inductive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Ser...

Inductive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 4.05 mm. Actual operating distance: 4.5 ... 5.5 mm typ. 5 mm. Reduction factor rAl: 0.2. Reduction factor rCu: 0.15. Reduction factor r304: 0.62. Reduction factor rBrass: 0.32. Output type: 3-wire. Operating voltage: 10 ... 60 V. Switching frequency: 0 ... 1500 Hz. Hysteresis: 1 ... 10 % typ. 6 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Voltage drop at IL: . Voltage drop IL = 100 mA, switching element onUd1.5 ... 2.5 V typ. 1.9 V: Ud. Voltage drop IL = 100 mA, switching element on: 1.5 ... 2.5 V typ. 1.9 V. Operating current: 0 ... 200 mA. Lowest operating current: 0 mA. Off-state current: 0 ... 0.5 mA typ. 0.01 mA. Off-state current TU =40 °C, switching element off≤ 100 µA: . Off-state current TU =40 °C, switching element off: ≤ 100 µA. No-load supply current: ≤ 9 mA. Time delay before availability: ≤ 30 ms. Switching state indicator: LED, yellow. MTTFd: 1410 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 60 V DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6.4 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.5 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.4 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.5 mm2. Length: 2 m. Dimensions: . Length50 mmDiameter18 mm: . Length: 50 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
