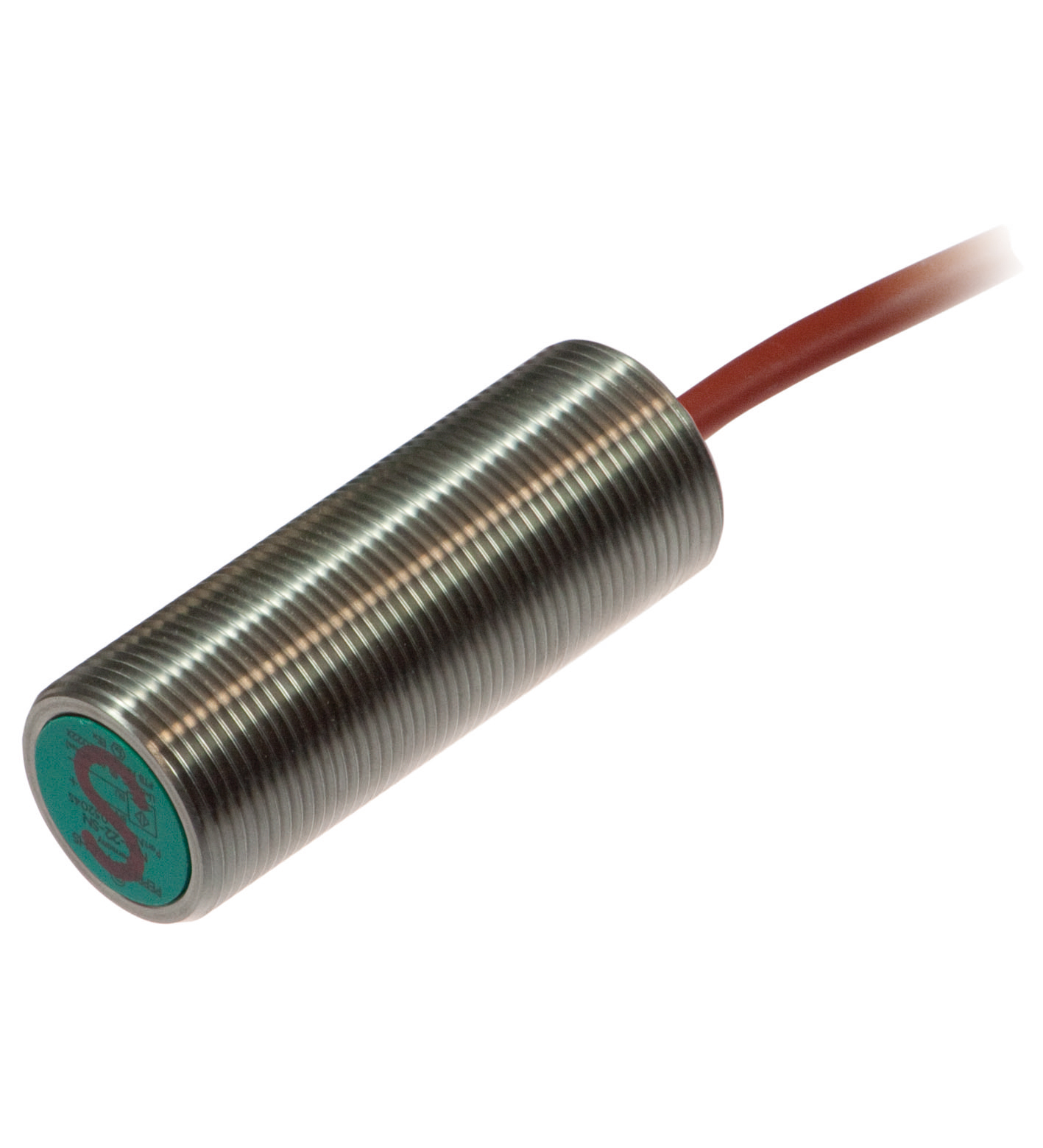

NJ6-22-SN-G-Y15196

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR with safety function, Installation: flush, Output type: 2-wire, Thread mold: PG21, Construction type: Cylindrical, thread...

Inductive sensor. Switching function: Normally closed (NC), Output type: NAMUR with safety function, Installation: flush, Output type: 2-wire, Thread mold: PG21, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable silicone , 2 m, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP68. Switching function: Normally closed (NC). Output type: NAMUR with safety function. Rated operating distance: 6 mm. Installation: flush. Assured operating distance: 0 ... 4.86 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 2-wire. Nominal voltage: 8 V. Operating voltage: 5 ... 25 V. Switching frequency: 0 ... 2000 Hz. Current consumption: . Measuring plate not detectedmin. 3 mAMeasuring plate detected≤ 1 mA: . Measuring plate not detected: min. 3 mA. Measuring plate detected: ≤ 1 mA. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. Ambient temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: cable silicone , 2 m. Core cross section: 0.75 mm2. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PBT. Degree of protection: IP68. Dimensions: . Length35 mmDiameter28.3 mmThread sizePG21: . Length: 35 mm. Diameter: 28.3 mm. Thread size: PG21. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
