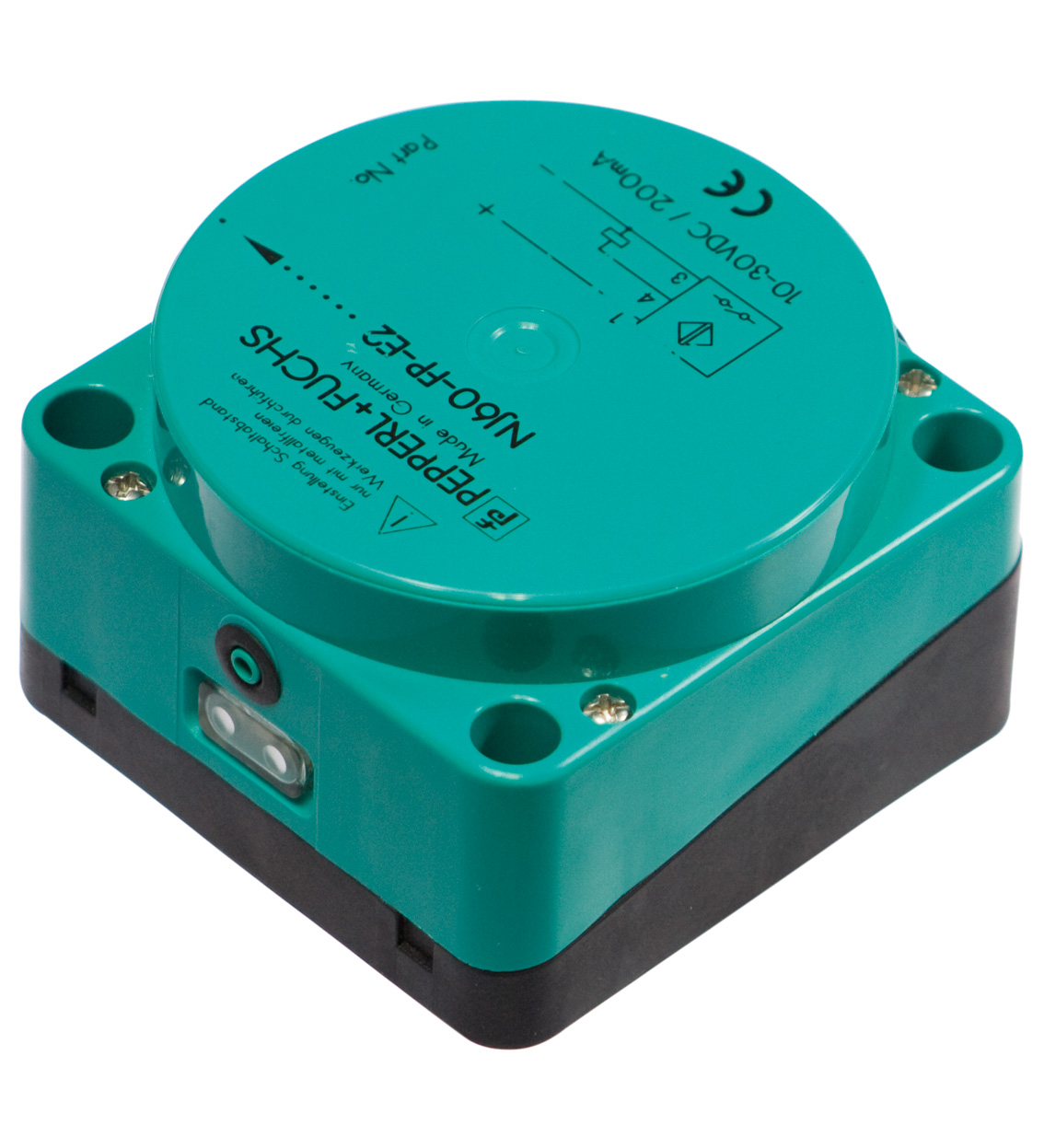

NJ60-FP-E2-P2-V1

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type,...

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: Connector plug, Housing material: POM, Degree of protection: IP65, Threading: M12 x 1. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 60 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 48.6 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 3-wire. Adjustment aid: LED, green/red. Operating voltage: 10 ... 30 V. Switching frequency: 8 Hz. Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 20 ms. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CSA approval: cCSAus Listed, General Purpose. Ambient temperature: 0 ... 60 °C (32 ... 140 °F). Connection type: Connector plug. Housing material: POM. Sensing face: POM. Degree of protection: IP65. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height40 mmWidth80 mmLength80 mm: . Height: 40 mm. Width: 80 mm. Length: 80 mm

Brand	Pepperl Fuchs
Lifecycle status	active
