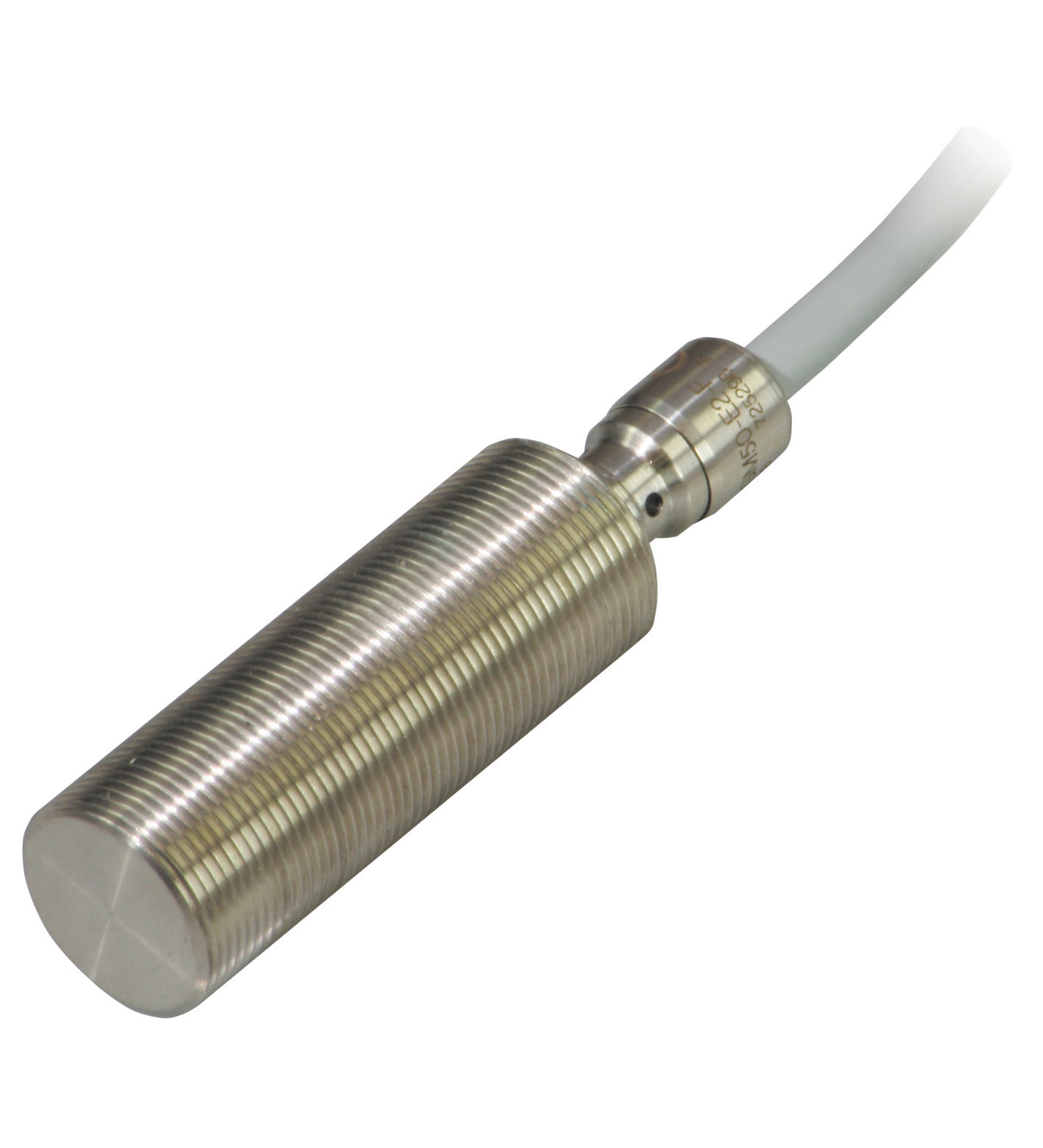

NMB10-18GH50-E2
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush in mild steel, Output polarity: DC, Output type: 3-wire, Threa...
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush in mild steel, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable TPE-S , 2 m 3 x 0.34 mm<sup>2</sup>, Housing material: Stainless steel 1.4435 / AISI 316L, Degree of protection: IP68 / IP69K. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 10 mm. Installation: flush in mild steel. Output polarity: DC. Assured operating distance: 0 ... 8.1 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.25. Reduction factor r304: 0.5 (0.9 of material thickness 2 mm). Reduction factor rSt37: 1. Output type: 3-wire. Installation conditions: . A0 mmB16 mmC30 mmF60 mm: . A: 0 mm. B: 16 mm. C: 30 mm. F: 60 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 300 Hz. Hysteresis: 3 ... 15 typ. 5 %. Reverse polarity protection: yes. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: ≤ 0.1 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: LED, yellow. Operating pressure statically: 60 bar (870.2 psi) max.. MTTFd: 655 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable TPE-S , 2 m 3 x 0.34 mm2. Housing material: Stainless steel 1.4435 / AISI 316L. Sensing face: Stainless steel 1.4435 / AISI 316L. Degree of protection: IP68 / IP69K. Mass: 112 g. Dimensions: . Length70 mmDiameter18 mm: . Length: 70 mm. Diameter: 18 mm. Assembly dimensions: x: 18 mm y: ≥ 4 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
