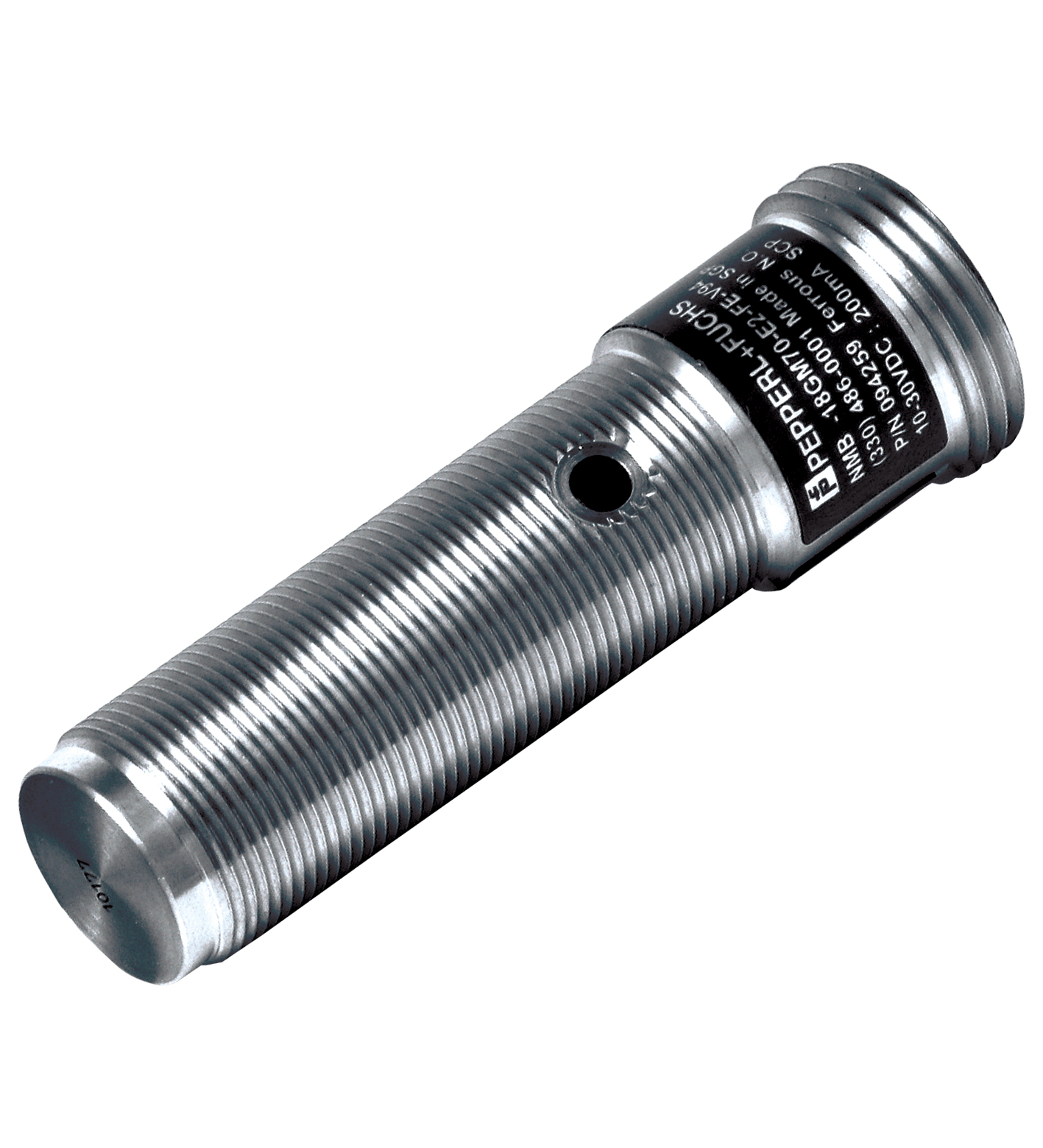

NMB10-18GM70-E2-V94

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush (Requirements: see drawing below), Output polarity: DC, Output...

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush (Requirements: see drawing below), Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug 7/8 inch-16 UN , 4-pin, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 10 mm. Installation: flush (Requirements: see drawing below). Output polarity: DC. Assured operating distance: 0 ... 8.1 mm. Actuating element: Ferrous and nonferrous targets. Reduction factor rAl: 0.4. Reduction factor rCu: 0.25. Reduction factor r304: 0.85. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 240 Hz. Hysteresis: 3 ... 15 typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: ≤ 200 mA. Off-state current: 10 µA. No-load supply current: ≤ 10 mA. MTTFd: 847 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: Dual LEDGreen: powerYellow: output. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug 7/8 inch-16 UN , 4-pin. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Dimensions: . Length70 mmDiameter18 mm: . Length: 70 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active
