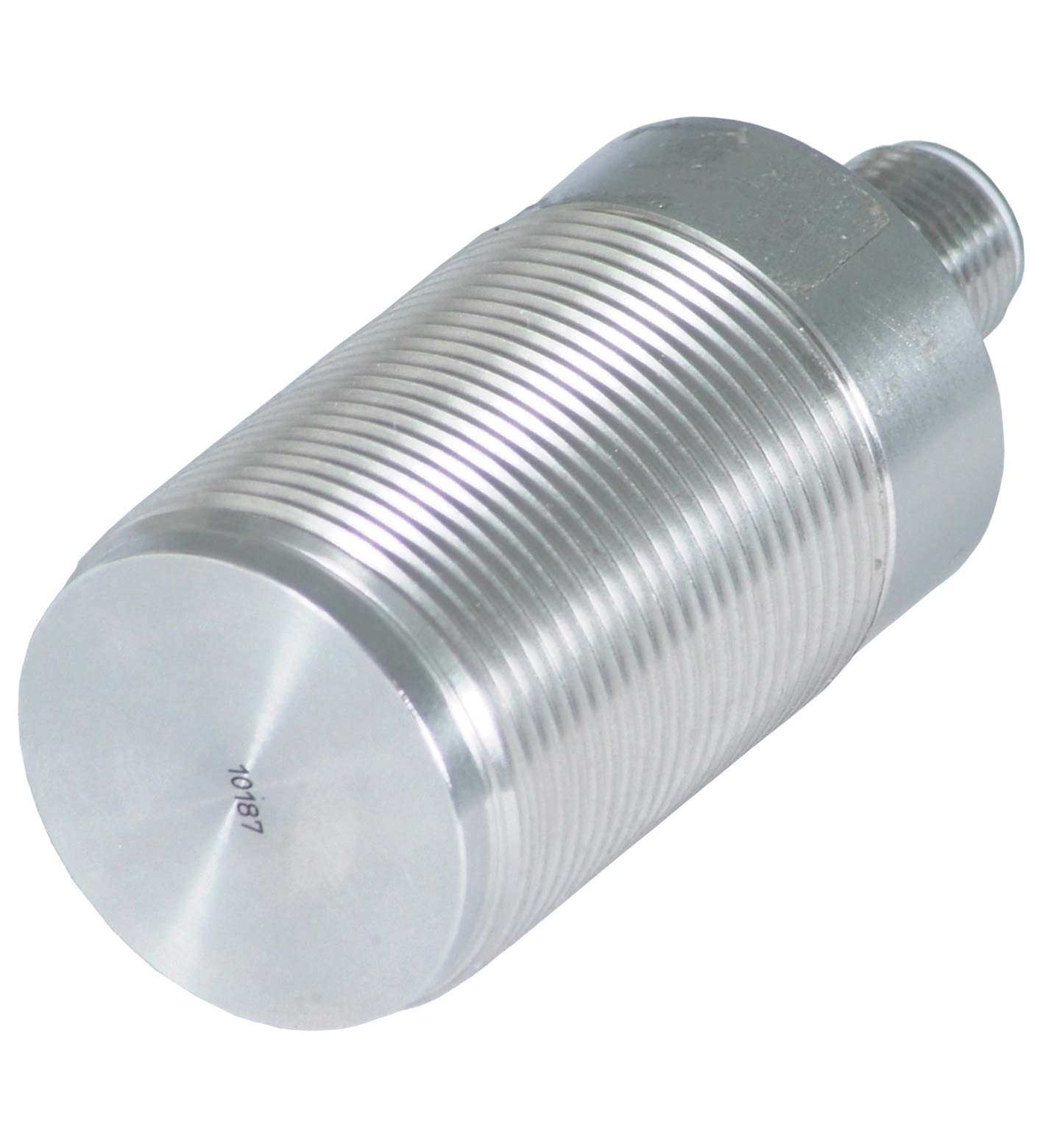

NMB15-30GM65-Z4-V1

Inductive sensor. Metal face proximity sensors, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush (Requirements: see drawing below), Output polarity: DC, Output type:...

Inductive sensor. Metal face proximity sensors, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush (Requirements: see drawing below), Output polarity: DC, Output type: 2-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 15 mm. Installation: flush (Requirements: see drawing below). Output polarity: DC. Assured operating distance: 0 ... 12.15 mm. Actuating element: Ferrous and nonferrous targets. Reduction factor rAl: 0.4. Reduction factor rCu: 0.2. Reduction factor r304: 0.85. Reduction factor rSt37: 1. Output type: 2-wire. Operating voltage: 6 ... 30 V. Switching frequency: 150 Hz. Hysteresis: 5 ... 15 typ. 10 %. Reverse polarity protection: reverse polarity-conductive. Short-circuit protection: yes. Voltage drop: < 3 V DC. Operating current: 2 ... 100 mA. Off-state current: < 400 µA. MTTFd: 970 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: 4-way LEDYellow: output. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 70 °C (32 ... 158 °F). Connection type: Connector plug. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 148 g. Dimensions: . Length65 mmDiameter30 mm: . Length: 65 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
