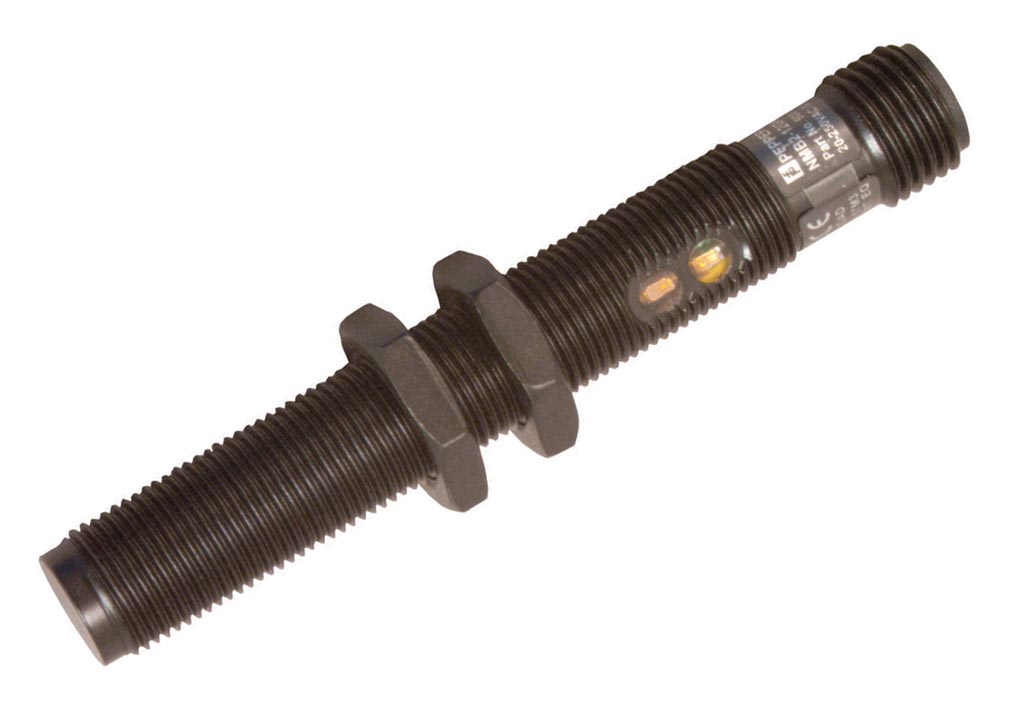

NMB2-12GM85-US-C-FE-V12

Inductive sensor. Metal face proximity sensors, metal face, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC/DC, O...

Inductive sensor. Metal face proximity sensors, metal face, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: Two-wire, Installation: flush, Output polarity: AC/DC, Output type: 2-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: UC, Rated operating voltage: 20 ... 250 V AC/DC, Connection type: Connector plug 1/2"-20 UN , 3-pin, Housing material: Xylan coated - Stainless steel 1.4305 / AISI 303. Switching function: Normally open (NO). Output type: Two-wire. Rated operating distance: 2 mm. Installation: flush. Output polarity: AC/DC. Assured operating distance: 0 ... 1.62 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.4 - 0.7. Reduction factor rSt37: 1. Reduction factor rBrass: 0. Output type: 2-wire. Switching frequency: 0 ... 30 Hz. Hysteresis: 3 ... 15 typ. 10 %. Reverse polarity protection: reverse polarity tolerant. Short-circuit protection: pulsing. Voltage drop: ≤ 7 V. Rated operating current: 8 ... 200 mA AC/DC. Off-state current: ≤ 1.3 mA. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Error indicator: LED, green/yellow (Alternate Flashing) - Short circuit/overload indication. Mag. Field strength, AC fields: 250 mT. Mag. Field strength, DC fields: 250 mT. Rated operating voltage: 20 ... 250 V AC/DC. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Enclosure Type Rating: Type 1 Supply/Switching Voltage: 250 V AC/DC Output Switching Current: 200 mA. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug 1/2"-20 UN , 3-pin. Housing material: Xylan coated - Stainless steel 1.4305 / AISI 303. Sensing face: Xylan coated - Stainless steel 1.4305 / AISI 303. Degree of protection: IP67 / IP68 / IP69K - cordset dependent according to cable specification. Dimensions: . Length85 mmDiameter12 mm: . Length: 85 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
