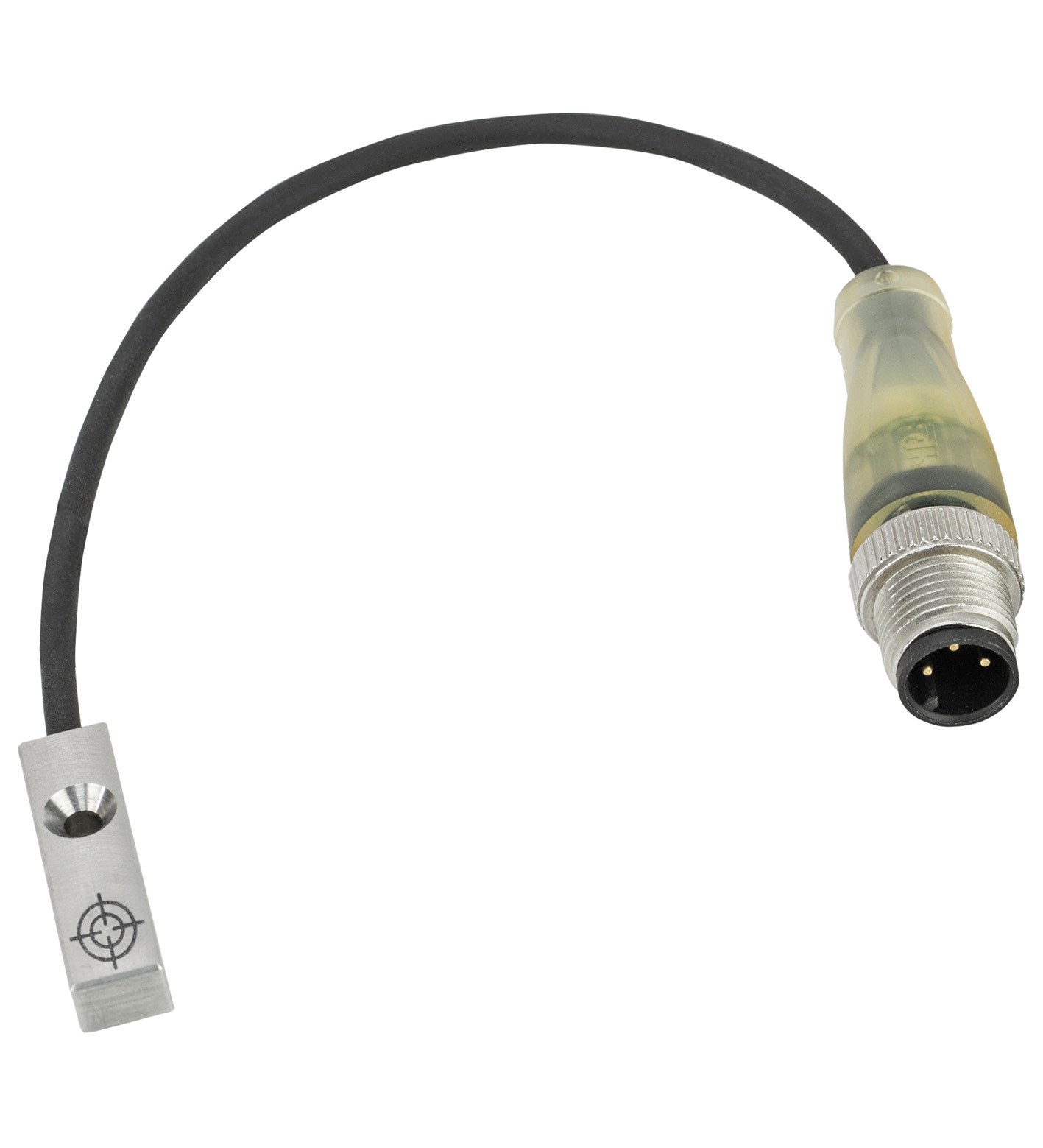

NMB2-F76M-E0-FE-150MM-V1
Inductive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: flush <BR>Note: Sensor can be recessed 0.5 mm in steel with no effect on the sensing field., Output type: 3-wi...
Inductive sensor. Switching function: Normally open (NO), Output type: NPN, Installation: flush <BR>Note: Sensor can be recessed 0.5 mm in steel with no effect on the sensing field., Output type: 3-wire, Construction type: Rectangular, Series: Rectangular type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: fixed cable with plug, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Threading: M12 x 1, Material: PUR. Switching function: Normally open (NO). Output type: NPN. Rated operating distance: 2 mm. Installation: flush Note: Sensor can be recessed 0.5 mm in steel with no effect on the sensing field.. Assured operating distance: 0 ... 1.62 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.6 - 0.8. Reduction factor rBrass: 0. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 80 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: ≤ 200 mA. Current consumption: ≤ 22 mA. Off-state current: ≤ 10 µA. No-load supply current: ≤ 15 mA. MTTFd: 828 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: Dual LED green: power yellow: Output. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 ... 70 °C (14 ... 158 °F). Shock resistance: 30 g 11 ms 3 planes. Connection type: fixed cable with plug. Housing material: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Connector: . ThreadingM12 x 1Tightening torque≤ 0.6 NmNumber of pins3: . Threading: M12 x 1. Tightening torque: ≤ 0.6 Nm. Number of pins: 3. Cable: . Cable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.14 mm2LengthL150 mm: . Cable diameter: 3 mm - 0.2 mm. Bending radius: > 12 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 150 mm. Dimensions: . Height5.5 mmWidth7.9 mmLength30 mm: . Height: 5.5 mm. Width: 7.9 mm. Length: 30 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
