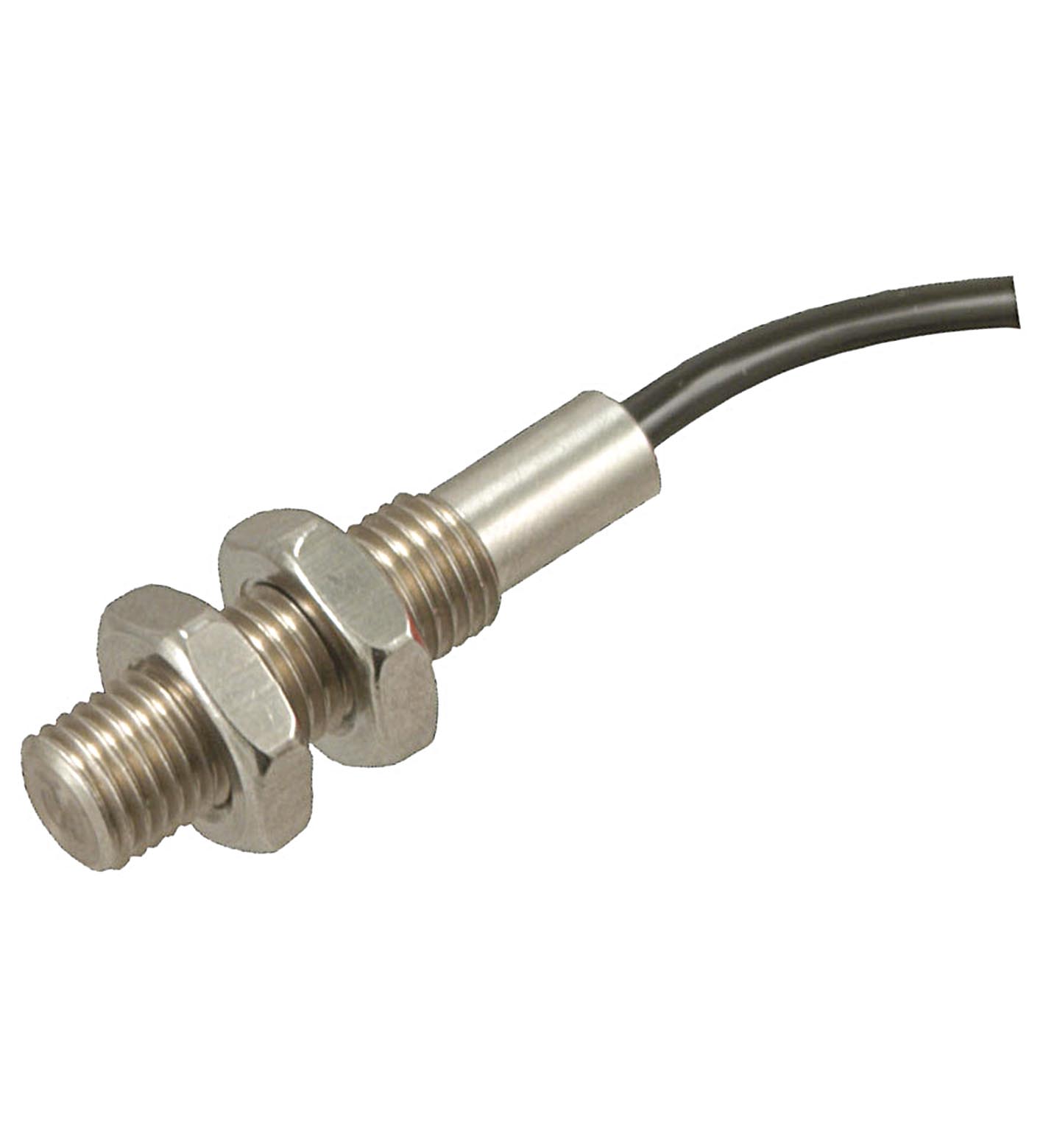

NMB3-8GM35-E2

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Co...

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 3 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 2.43 mm. Reduction factor rAl: 0.3. Reduction factor rCu: 0.2. Reduction factor r304: 0.7. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 360 Hz. Hysteresis: 5 ... 15 typ. 10 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 100 mA. Off-state current: 0 ... 10 µA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 10 mA. Switching state indicator: LED, red. MTTFd: 2000 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3 mm - 0.2 mm. Bending radius: > 12 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length35 mmDiameter8 mm: . Length: 35 mm. Diameter: 8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
