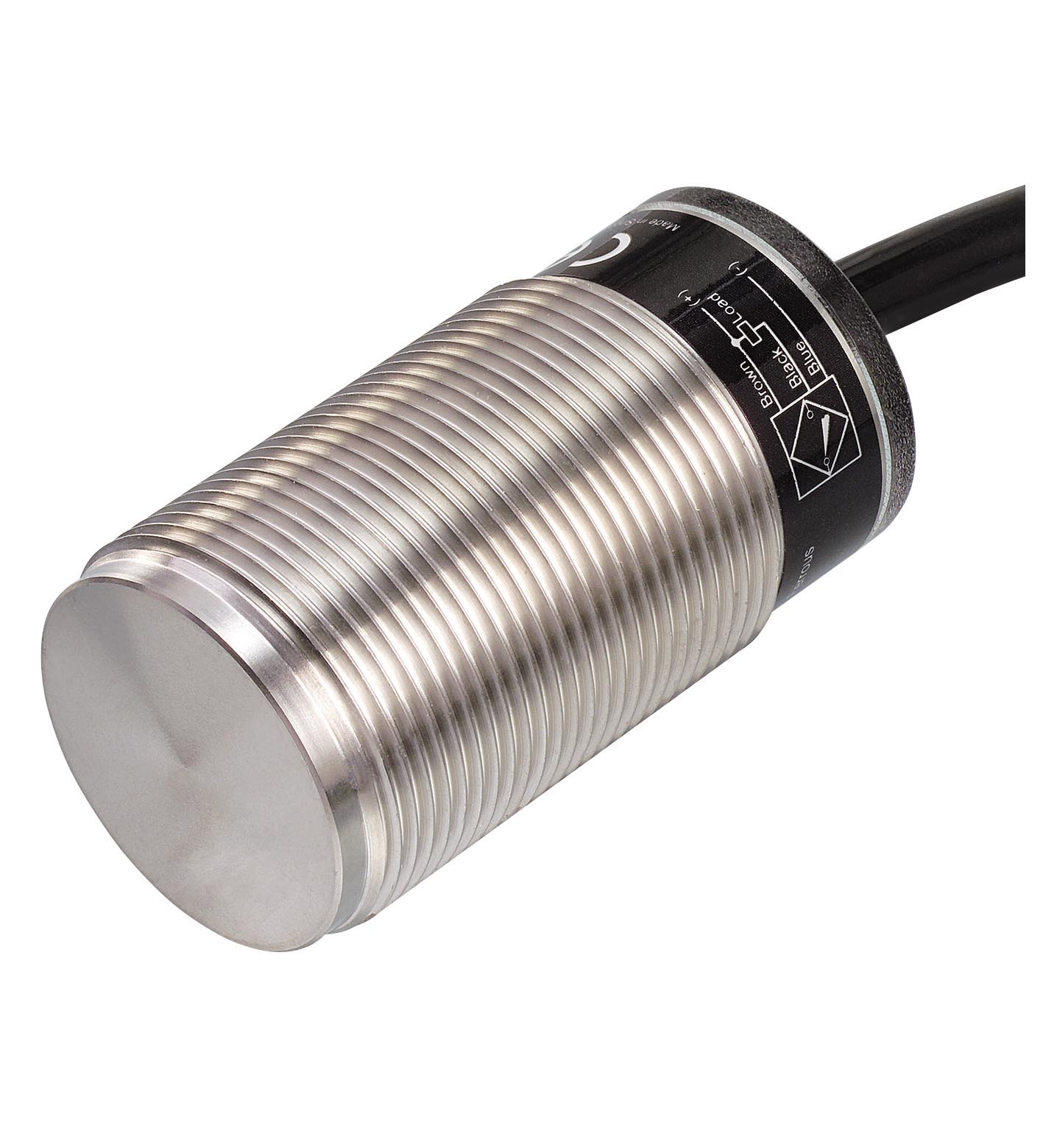

NMB8-30GM55-E2-FE

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, C...

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PUR. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.6 - 0.8. Reduction factor rSt37: 1. Reduction factor rBrass: 0. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 10 Hz. Hysteresis: 3 ... 15 typ. 10 %. Reverse polarity protection: yes. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: ≤ 200 mA. Current consumption: < 14 mA. Off-state current: ≤ 10 µA. MTTFd: 990 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: Dual LEDGreen: powerYellow: output. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: Stainless steel 1.4305 / AISI 303. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6.2 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores3Core cross section0.5 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.2 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 3. Core cross section: 0.5 mm2. Length: 2 m. Dimensions: . Length55 mmDiameter30 mm: . Length: 55 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
