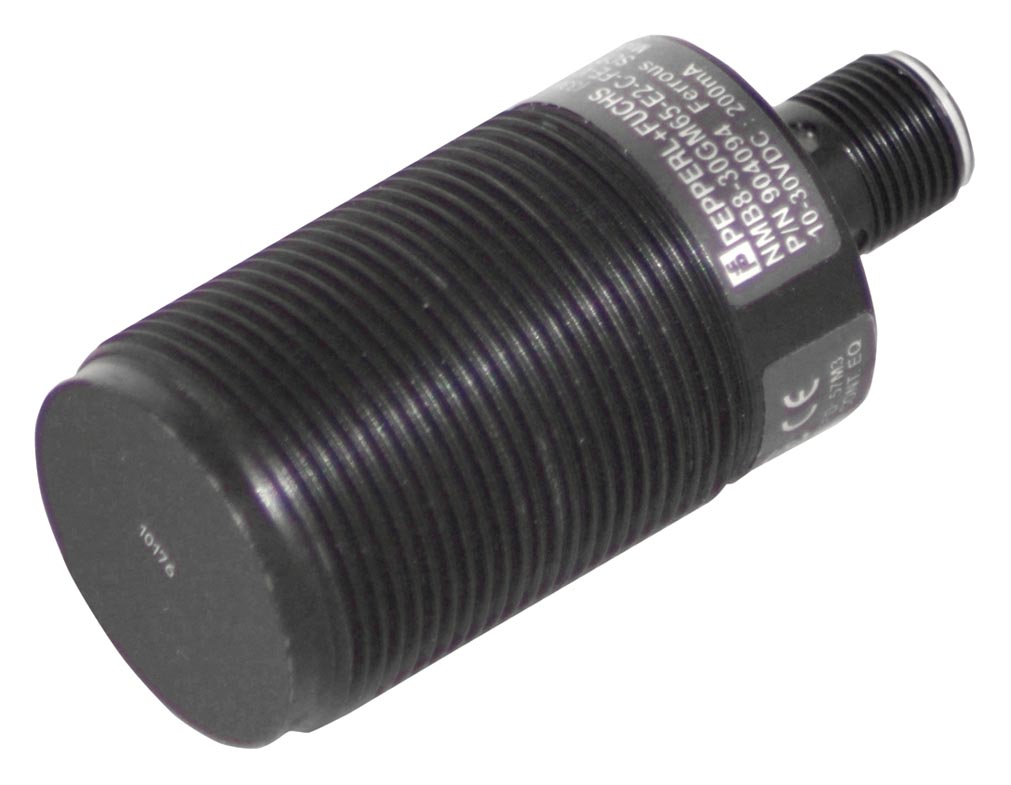

NMB8-30GM65-E2-C-FE-V1

Inductive sensor. Metal face proximity sensors, metal face, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output ty...

Inductive sensor. Metal face proximity sensors, metal face, Weld immune proximity sensors, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M30, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: V1 connector (M12 x 1), 4-pin, Housing material: Xylan coated - Stainless steel 1.4305 / AISI 303. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 6.48 mm. Actuating element: Ferrous targets. Reduction factor rAl: 0. Reduction factor rCu: 0. Reduction factor r304: 0.6 - 0.8. Reduction factor rSt37: 1. Reduction factor rBrass: 0. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 2 Hz. Hysteresis: 3 ... 15 typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: ≤ 200 mA. Current consumption: < 14 mA. Off-state current: ≤ 10 µA. Operating voltage indicator: LED, green. Switching state indicator: LED, yellow. Mag. Field strength, AC fields: 250 mT. Mag. Field strength, DC fields: 250 mT. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: V1 connector (M12 x 1), 4-pin. Housing material: Xylan coated - Stainless steel 1.4305 / AISI 303. Sensing face: Xylan coated - Stainless steel 1.4305 / AISI 303. Degree of protection: IP67 / IP68 / IP69K - cordset dependent according to cable specification. Dimensions: . Length40 mmDiameter30 mm: . Length: 40 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
