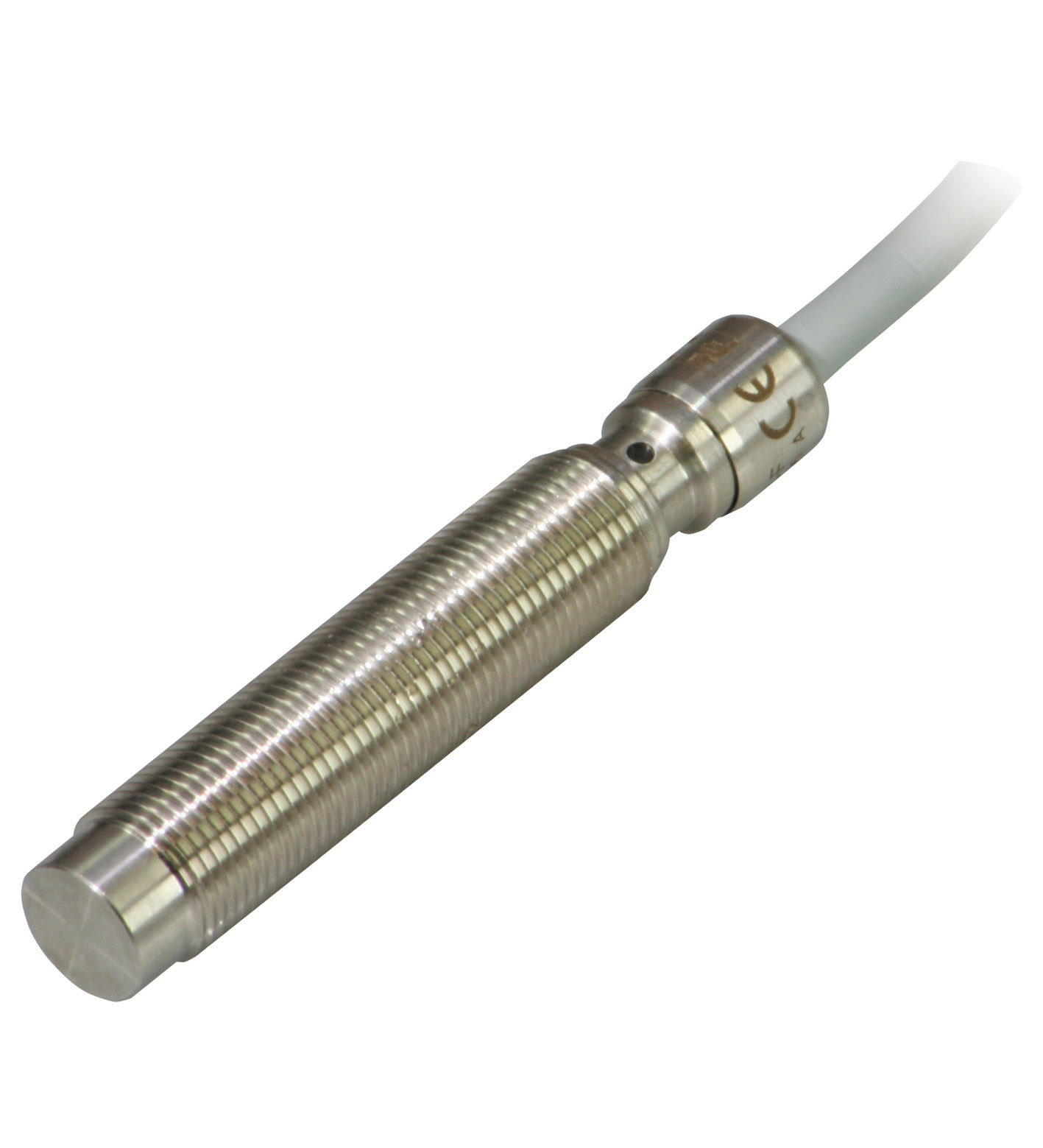

NMN10-12GH50-E2

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M1...

Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable TPE-S , 2 m, Housing material: Stainless steel 1.4435 / AISI 316L, Degree of protection: IP68 / IP69K. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 10 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 8.1 mm. Reduction factor rAl: 1. Reduction factor rCu: 0.8. Reduction factor r304: 0.5 (0.7 of material thickness 2 mm). Reduction factor rSt37: 1. Output type: 3-wire. Installation conditions: . A22 mm (mild steel) 21 mm (stainless steel) 13 mm (aluminum) 15 mm (brass)B24 mmC30 mmF120 mm: . A: 22 mm (mild steel) 21 mm (stainless steel) 13 mm (aluminum) 15 mm (brass). B: 24 mm. C: 30 mm. F: 120 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 400 Hz. Hysteresis: 3 ... 15 typ. 5 %. Reverse polarity protection: yes. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: ≤ 0.1 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: LED, yellow. Operating pressure statically: 80 bar (1160.3 psi) max.. MTTFd: 652 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable TPE-S , 2 m. Housing material: Stainless steel 1.4435 / AISI 316L. Sensing face: Stainless steel 1.4435 / AISI 316L. Degree of protection: IP68 / IP69K. Mass: 86 g. Dimensions: . Length69 mmDiameter12 mm: . Length: 69 mm. Diameter: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active
