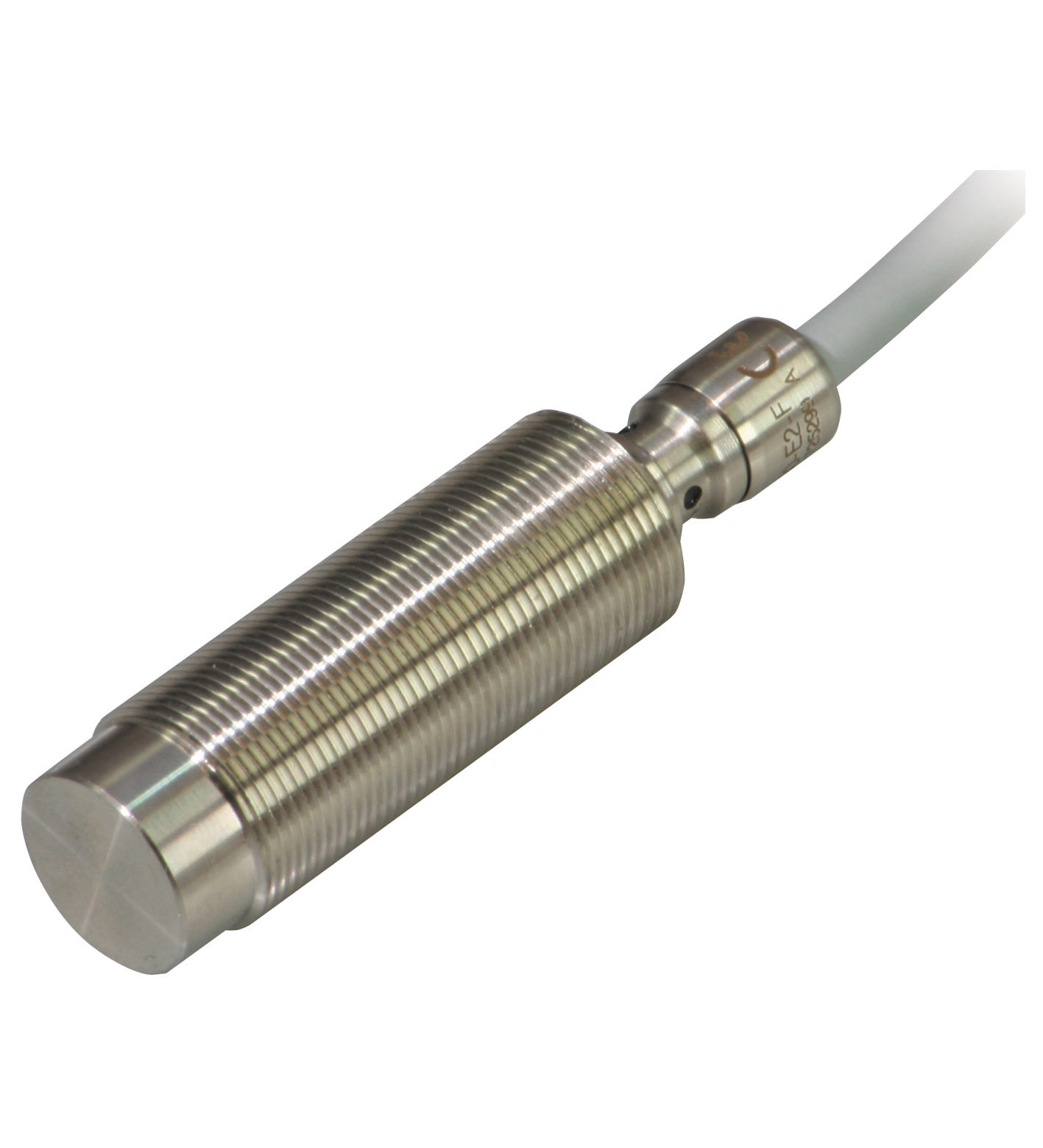

NMN20-18GH50-E2
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M1...
Inductive sensor. Metal face proximity sensors, metal face, Switching function: Normally open (NO), Output type: PNP, Installation: non-flush, Output polarity: DC, Output type: 3-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Type of voltage: DC, Connection type: cable TPE-S , 2 m 3 x 0.34 mm<sup>2</sup>, Housing material: Stainless steel 1.4435 / AISI 316L, Degree of protection: IP68 / IP69K. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 20 mm. Installation: non-flush. Output polarity: DC. Assured operating distance: 0 ... 16.2 mm. Reduction factor rAl: 1. Reduction factor rCu: 0.9. Reduction factor r304: 0.3 (0.6 of material thickness 2 mm). Reduction factor rSt37: 1. Output type: 3-wire. Installation conditions: . A34 mm (mild steel) 36 mm (stainless steel) 20 mm (aluminum) 22 mm (brass)B41 mmC60 mmF200 mm: . A: 34 mm (mild steel) 36 mm (stainless steel) 20 mm (aluminum) 22 mm (brass). B: 41 mm. C: 60 mm. F: 200 mm. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 200 Hz. Hysteresis: 3 ... 15 typ. 5 %. Reverse polarity protection: yes. Short-circuit protection: yes. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: ≤ 0.1 mA. No-load supply current: ≤ 10 mA. Time delay before availability: ≤ 40 ms. Switching state indicator: LED, yellow. Operating pressure statically: 60 bar (870.2 psi) max.. MTTFd: 655 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable TPE-S , 2 m 3 x 0.34 mm2. Housing material: Stainless steel 1.4435 / AISI 316L. Sensing face: Stainless steel 1.4435 / AISI 316L. Degree of protection: IP68 / IP69K. Mass: 112 g. Dimensions: . Length70 mmDiameter18 mm: . Length: 70 mm. Diameter: 18 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
