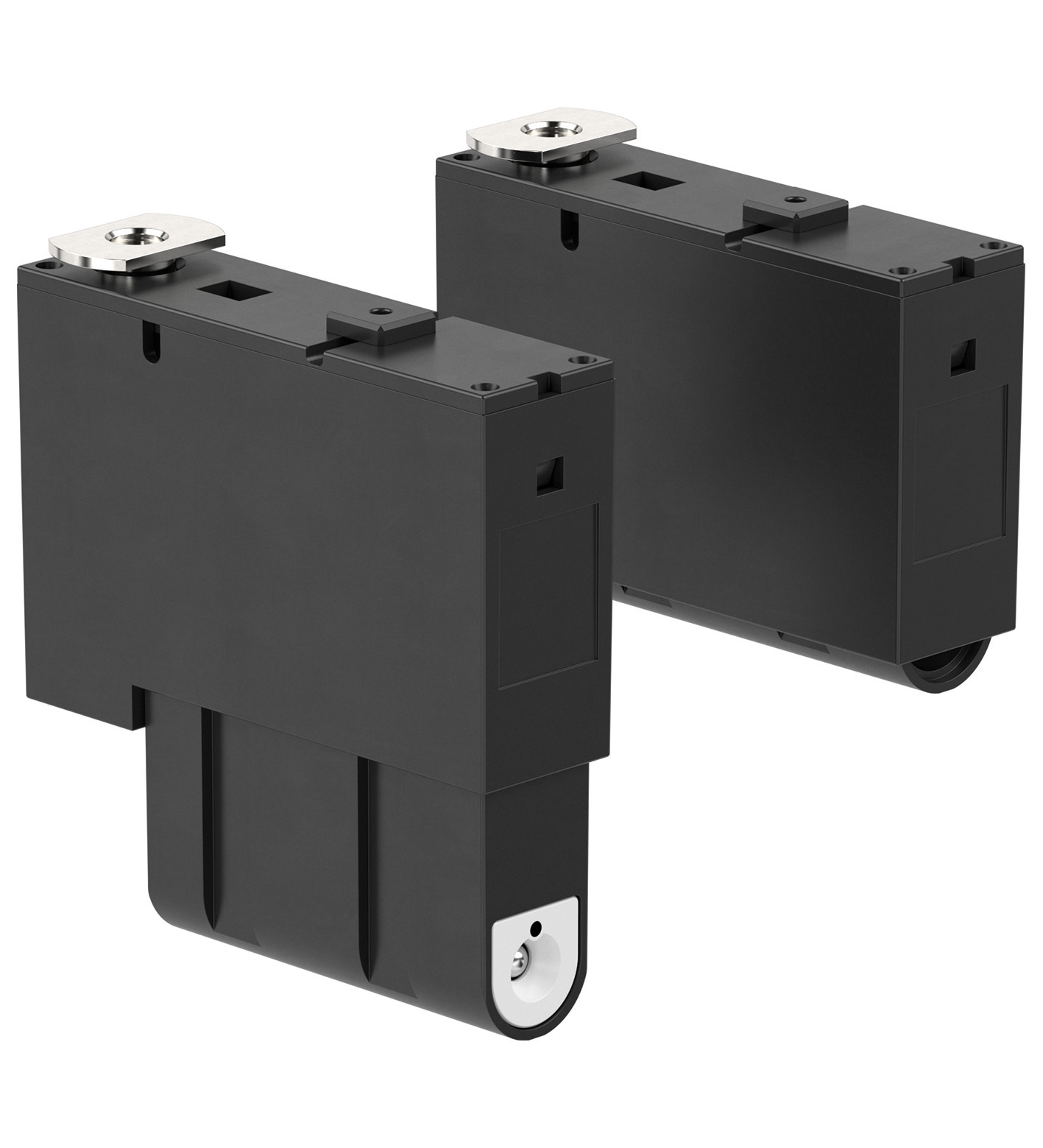

NOCON-SEC-8M-OSE-1/10,5Mol
Safety thru-beam sensor. Noncontact closing edge protection, Compatible with all standard controllers, Quicker door closing possible, Low to no closing forces, for sectional gates, Function: Secure, S...
Safety thru-beam sensor. Noncontact closing edge protection, Compatible with all standard controllers, Quicker door closing possible, Low to no closing forces, for sectional gates, Function: Secure, Sensor principle: Thru-beam sensor, Operating voltage: 10 ... 24 V DC, Output type: OSE, Signal output: 900 Hz , transistor output loadable with max. 20 mA, short-circuit protected, Connection: PUR cable , 0.14 mm<sup>2</sup> 3 conductor <BR>halogen-free. Emitter: NOCON-ROLL-T. Receiver: NOCON-ROLL-R. Effective detection range: 1 ... 8 m. Threshold detection range: 11 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 950 nm. Safety type according to IEC/EN 61496: 4. Marking: CE. Diameter of the light spot: approx. 1.2 m at a distance of 8 m. Opening angle: eff. ± 5 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: Receiver: LED green. Function indicator: emitter LED red: lit when the light beam is interrupted LED green: lights up when light beam is free. Stability alarm indicator: Emitter: flashing red/green. Operating voltage: 10 ... 24 V DC. Operating current: ≤ 50 mA. Output type: OSE. Switching type: light-on. Signal output: 900 Hz , transistor output loadable with max. 20 mA, short-circuit protected. Short-circuit-proof: yes. Energized/De-energized delay: typ. 100 ms. Response time: ≤ 20 ms. Product standard: EN 61000-6-2, EN 61000-6-3 , EN 12978. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Storage temperature: -25 ... 55 °C (-13 ... 131 °F). Relative humidity: max. 95 %, not condensing. Degree of protection: IP67 according to EN 60529. Connection: PUR cable , 0.14 mm2 3 conductor halogen-free. Material: . HousingPlastic terluran® , RAL 1021 (yellow) (fiber-reinforced plastic): . Housing: Plastic terluran® , RAL 1021 (yellow) (fiber-reinforced plastic). Mass: per 120 g. Dimensions: . Height82.4 mmWidth38.6 mmDepth82.8 mm: . Height: 82.4 mm. Width: 38.6 mm. Depth: 82.8 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
