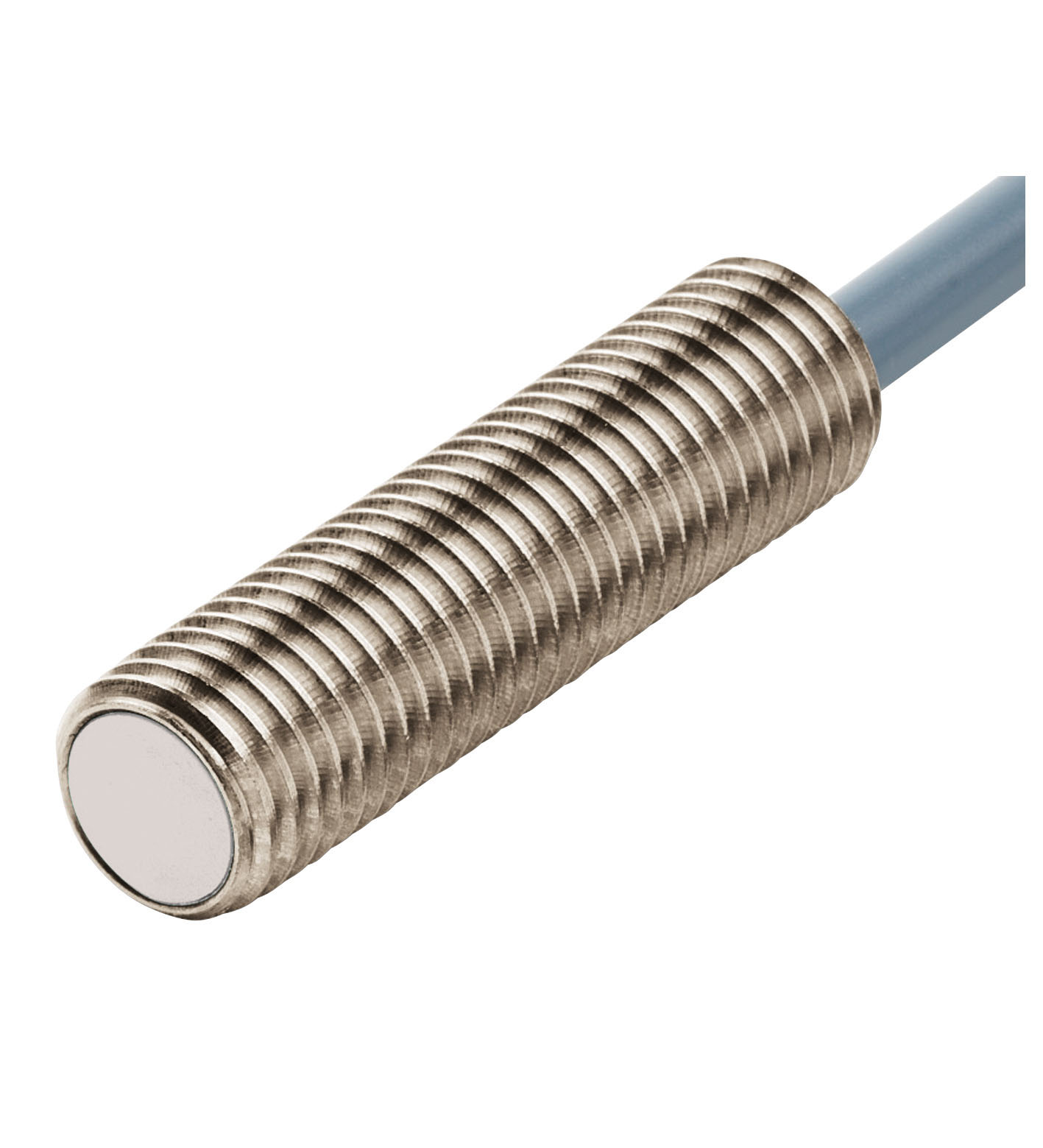

NRB2-8GH40-E2

Inductive sensor. Reduction factor 1, magnetic field resistant, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8...

Inductive sensor. Reduction factor 1, magnetic field resistant, Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Thread mold: M8, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Reduction factor rAl: 1. Reduction factor rCu: 1. Reduction factor r304: 1. Reduction factor rSt37: 1. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 4000 Hz. Hysteresis: typ. 5 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.5 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 15 mA. Constant magnetic field: 200 mT. Alternating magnetic field: 200 mT. Switching state indicator: LED, yellow. MTTFd: 1010.5 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: LCP, (conforms with FDA). Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3.3 mm ± 0.2 mmMaterialPVCColorblackNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3.3 mm ± 0.2 mm. Material: PVC. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length40 mmDiameter8 mm: . Length: 40 mm. Diameter: 8 mm

Brand	Pepperl Fuchs
Lifecycle status	active
