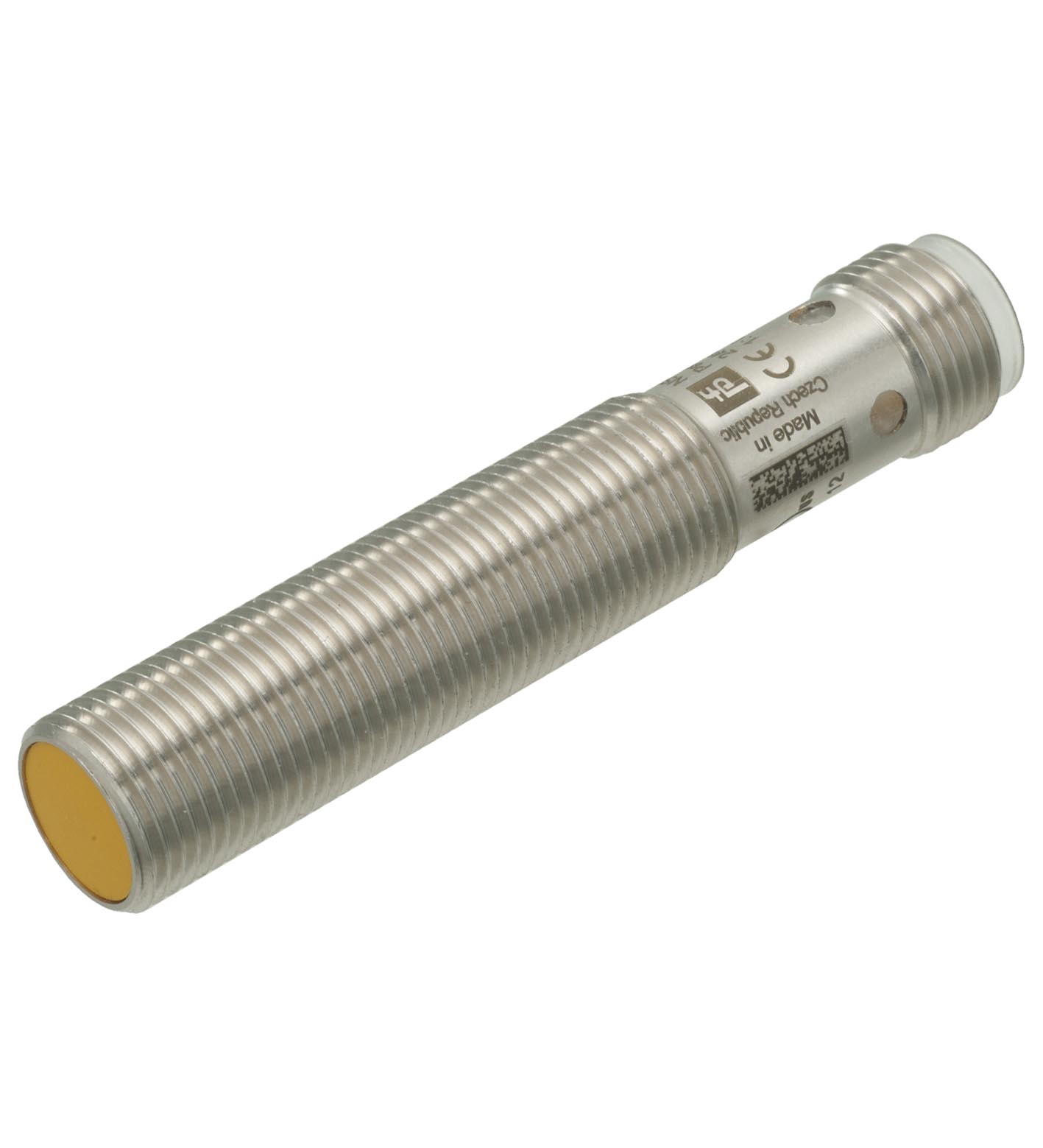

NSB2-12GH45-2E2-V1-M1-S2D2
Inductive sensor. Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Thread mold: M12, Construction type: Cylindrical, thread,...
Inductive sensor. Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Safety Integrity Level (SIL): SIL 2, Performance level (PL): PL d, Type of voltage: DC, Connection type: Connector plug, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP68 / IP69, Threading: M12 x 1. Switching function: 2 x normally open (NO). Output type: PNP. Rated operating distance: 2 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 1.62 mm. Actuating element: Reference target according EN IEC 60947-5-2 (FE360 - ST37K) 12 mm x 12 mm x 1 mm. Reduction factor rAl: 0.6. Reduction factor rCu: 0.45. Reduction factor r304: 0.9. Reduction factor rBrass: 0.6. Output type: 4-wire. Operating voltage: 10 ... 30 V. Rated operating voltage: 12 ... 24 V. Switching frequency: 0 ... 30 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Overload resistance: yes. Voltage drop: ≤ 3 V at IL (sum of all outputs) max. 50 mA. Rated insulation voltage: 30 V. Operating current: 1 ... 30 mA per output. Off-state current: 0 ... 0.5 mA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 300 ms. Switching state indicator: LED, yellow. Error indicator: LED, red. Safety Integrity Level (SIL): SIL 2. Performance level (PL): PL d. Category: Cat. 2. MTTFd: > 7500 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): min. 60 %. Assured release distance of a PDDB: 3 mm. Standard conformity: . StandardsEN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN IEC 62061:2021 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3: . Standards: EN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN IEC 62061:2021 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 24 V DC Output Switching Current: 2 x 30 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. E1 Type approval: 10R-06. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Altitude: ≤ 5000 m above MSL. Connection type: Connector plug. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: PBT. Degree of protection: IP68 / IP69. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 18 g. Dimensions: . Length65 mmDiameter12 mm: . Length: 65 mm. Diameter: 12 mm. Scope of delivery: Supplied with 2 nuts
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
