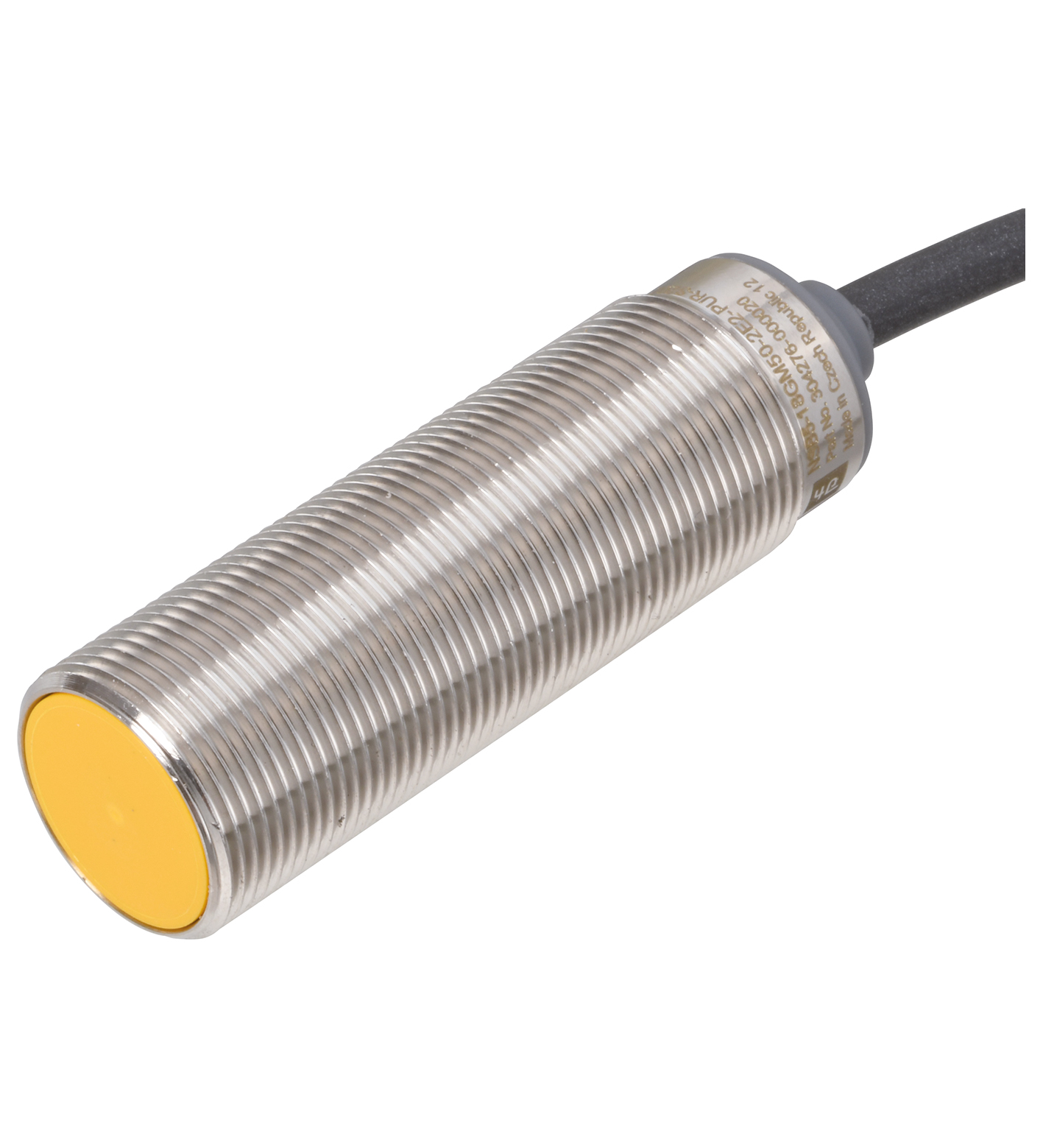

NSB5-18GH50-2E2-S2D2

Inductive sensor. Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Thread mold: M18, Construction type: Cylindrical, thread,...

Inductive sensor. Switching function: 2 x normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Safety Integrity Level (SIL): SIL 2, Performance level (PL): PL d, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4404 / AISI 316L, Degree of protection: IP68 / IP69, Material: PVC. Switching function: 2 x normally open (NO). Output type: PNP. Rated operating distance: 5 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 4.05 mm. Actuating element: Reference target according EN IEC 60947-5-2 (FE360 - ST37K) 18 mm x 18 mm x 1 mm. Reduction factor rAl: 0.5. Reduction factor rCu: 0.4. Reduction factor r304: 0.85. Reduction factor rBrass: 0.55. Output type: 4-wire. Operating voltage: 18 ... 30 V. Rated operating voltage: 24 V. Switching frequency: 0 ... 30 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Overload resistance: yes. Voltage drop: ≤ 3 V at IL (sum of all outputs) max. 50 mA. Rated insulation voltage: 30 V. Operating current: 1 ... 30 mA per output. Off-state current: 0 ... 0.5 mA. No-load supply current: ≤ 15 mA. Time delay before availability: ≤ 300 ms. Switching state indicator: LED, yellow. Error indicator: LED, red. Safety Integrity Level (SIL): SIL 2. Performance level (PL): PL d. Category: Cat. 2. MTTFd: > 7500 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): min. 60 %. Assured release distance of a PDDB: 7.5 mm. Standard conformity: . StandardsEN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3: . Standards: EN IEC 60947-5-2:2007 EN IEC 60947-5-3:2013 EN ISO 13849-1:2015 EN IEC 61508:2010 EN 62061:2005+AC:2010+A1:2013+A2:2015 compatible with EN ISO 61131-2:2007 Typ 1, 2, 3. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 24 V DC Output Switching Current: 2 x 30 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Altitude: ≤ 2000 m above MSL. Connection type: cable. Housing material: Stainless steel 1.4404 / AISI 316L. Sensing face: PBT. Degree of protection: IP68 / IP69. Cable: . Wire end ferrulesyesCable diameter4.3 mm ± 0.1 mmBending radius> 15 x cable diameterMaterialPVCColorblackNumber of cores4Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.3 mm ± 0.1 mm. Bending radius: > 15 x cable diameter. Material: PVC. Color: black. Number of cores: 4. Core cross section: 0.34 mm2. Length: 2 m. Mass: 92 g. Dimensions: . Length60 mmDiameter18 mm: . Length: 60 mm. Diameter: 18 mm. Scope of delivery: Supplied with 2 nuts

Brand	Pepperl Fuchs
Lifecycle status	active
