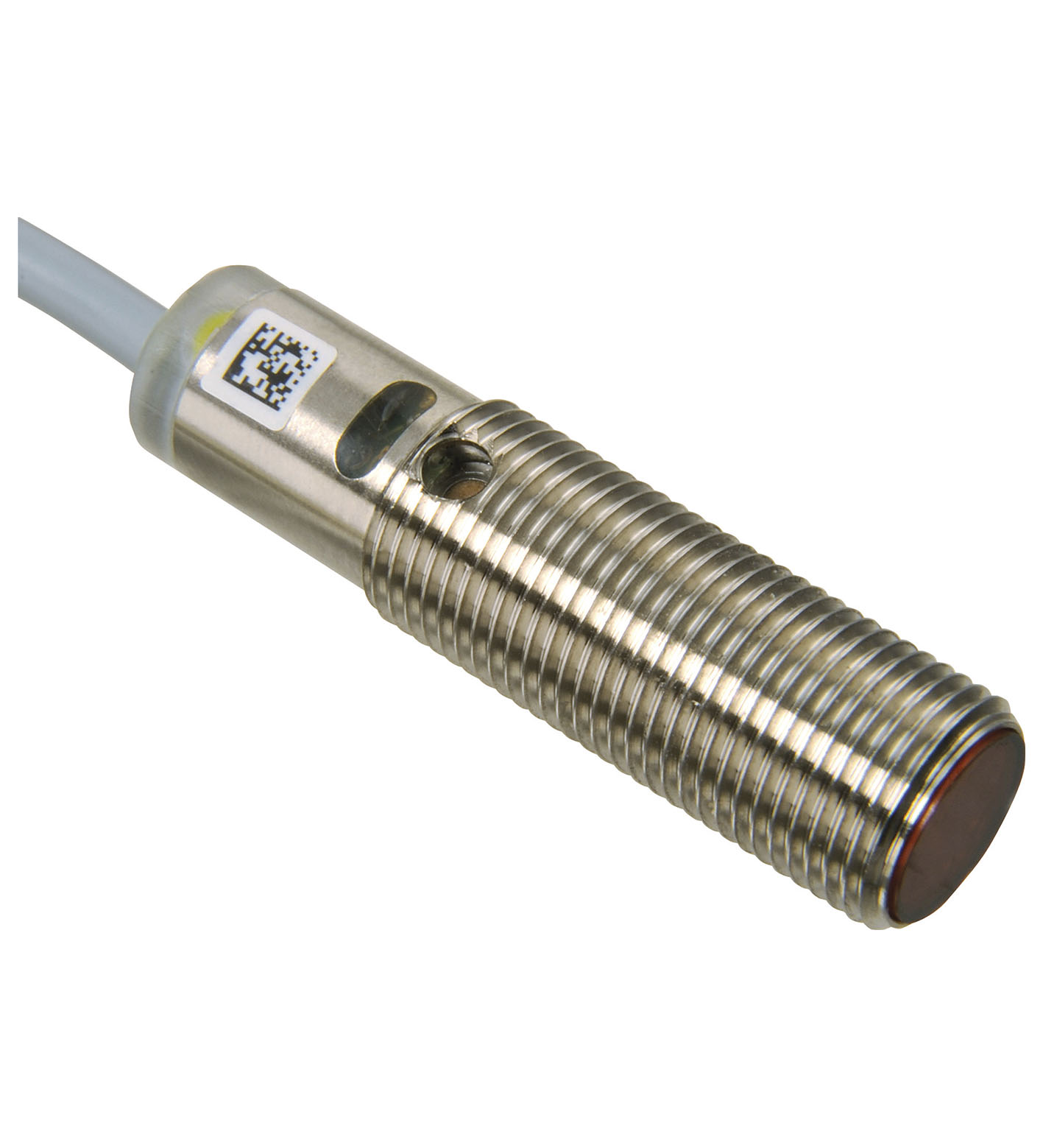

OBD300-12GM40-E5

Diffuse mode sensor. Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 PNP output, fixed cable, Robust M12 thread...

Diffuse mode sensor. Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 PNP output, fixed cable, Robust M12 threaded housing, Less space required, Light-on/dark-on, programmable, Degree of protection IP67. Detection range: 0 ... 300 mm. Adjustment range: 20 ... 300 mm. Reference target: standard white 100 mm x 100 mm. Light source: LED. Light type: red , 640 nm. Angle deviation: +/- 2 °. Diameter of the light spot: approx. 20 mm at a distance of 300 mm. Opening angle: approx. 4 °. Optical face: frontal. Ambient light limit: EN 60947-5-2 10000 Lux. MTTFd: 800 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: Power on. Function indicator: LED yellow ON: lights when object is detected. Control elements: Sensing range adjuster. Operating voltage: 10 ... 30 V DC , class 2. Ripple: 10 %. No-load supply current: ≤ 15 mA. Control input: light on +UBdark on: 0 V. Switching type: light/dark on electrically switchable. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 2 V. Switching frequency: ≤ 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Standard conformity: . StandardsUL 508: . Standards: UL 508. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . Housingbrass, nickel-platedOptical facePMMA: . Housing: brass, nickel-plated. Optical face: PMMA. Mass: approx. 45 g. Dimensions: . Length45 mmDiameter12 mm: . Length: 45 mm. Diameter: 12 mm. Cable length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
