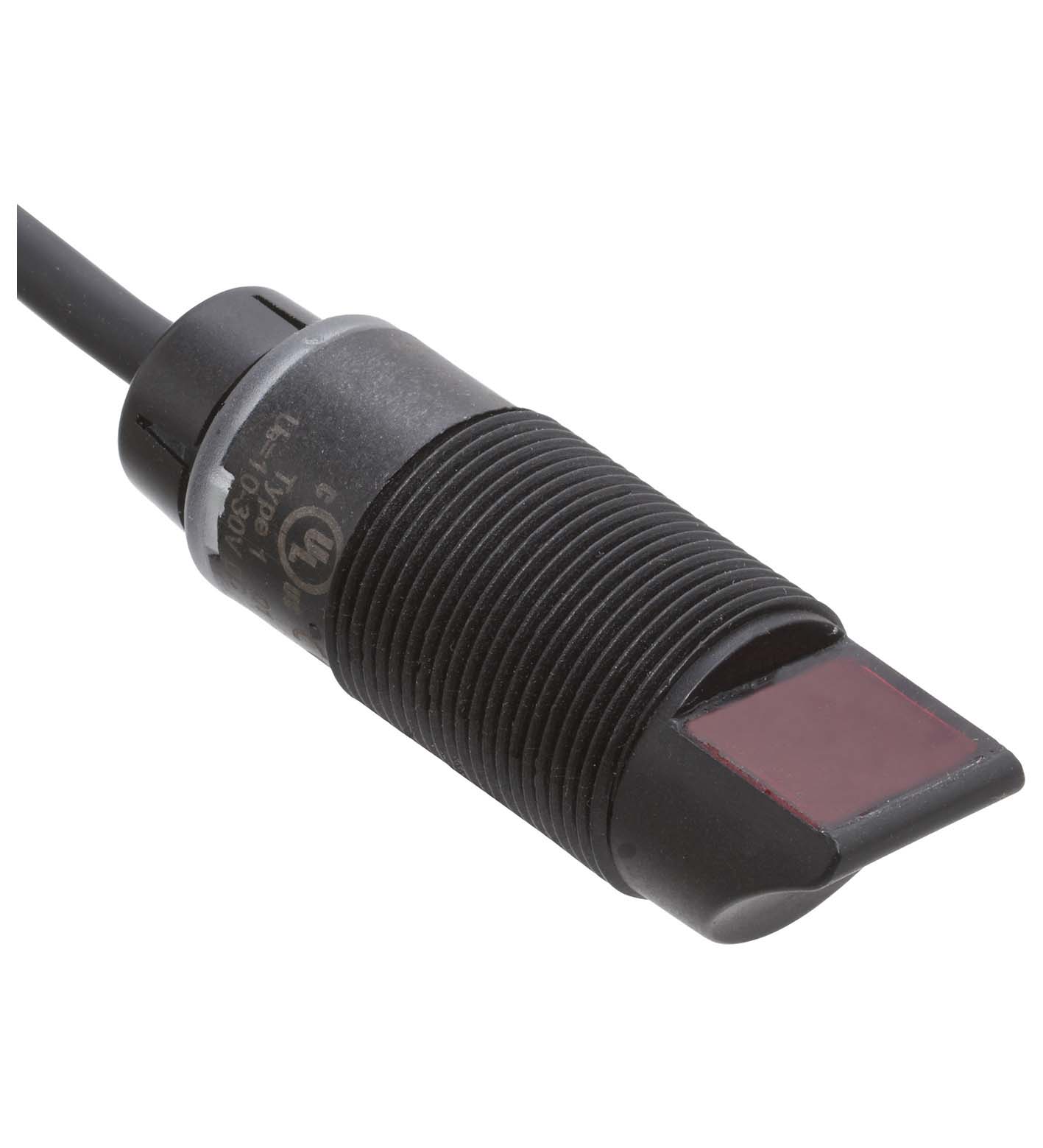

OBD450-18GK40A-E2

Diffuse mode sensor. Diffuse mode sensor, Short design in M18 plastic housing, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating distance. Detect...

Diffuse mode sensor. Diffuse mode sensor, Short design in M18 plastic housing, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating distance. Detection range: 0 ... 450 mm. Detection range min.: 0 ... 30 mm. Detection range max.: 0 ... 450 mm. Adjustment range: 30 ... 450 mm. Reference target: standard white 200 mm X 200 mm. Light source: LED. Light type: modulated visible red light. Diameter of the light spot: approx. 30 mm at 450 mm. Opening angle: approx. 2.6 °. Optical face: lateral. Ambient light limit: EN 60947-5-2 20000 Lux. Hysteresis: < 15 %. MTTFd: 1289 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on - power onflashing (4 Hz) - short circuit. Function indicator: LED yellow:constantly on - object detectedconstantly off - object not detected. Control elements: sensitivity adjustment. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA. Protection class: III. Switching type: Q - Pin4: PNP normally open / light-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMACablePVC: . Housing: PC (Polycarbonate). Optical face: PMMA. Cable: PVC. Mass: approx. 56 g. Dimensions: . Length53.4 mmDiameter18 mmThread sizeM18: . Length: 53.4 mm. Diameter: 18 mm. Thread size: M18

Brand	Pepperl Fuchs
Lifecycle status	active
