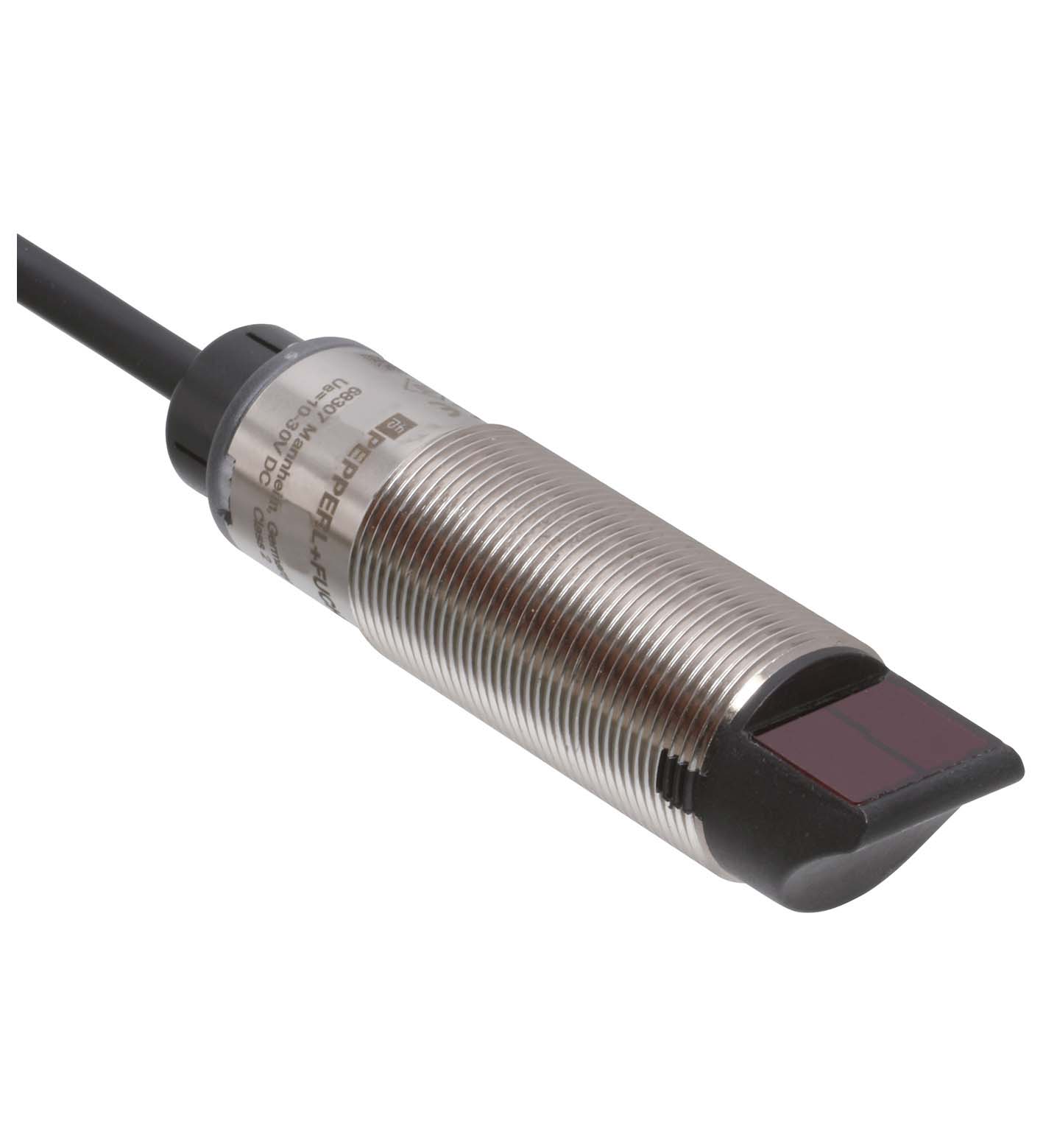

OBD450-18GM60A-E4
Diffuse mode sensor. Diffuse mode sensor, Strong metallic housing in cylindrical shape M18 x 1, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating...
Diffuse mode sensor. Diffuse mode sensor, Strong metallic housing in cylindrical shape M18 x 1, Operating distance adjustable, Not sensitive to ambient light, Degree of protection IP67, High operating distance. Detection range: 0 ... 450 mm. Detection range min.: 0 ... 30 mm. Detection range max.: 0 ... 450 mm. Adjustment range: 30 ... 450 mm. Reference target: standard white 200 mm X 200 mm. Light source: LED. Light type: modulated visible red light. Diameter of the light spot: approx. 30 mm at 450 mm. Opening angle: approx. 2.6 °. Optical face: lateral. Ambient light limit: EN 60947-5-2 20000 Lux. Hysteresis: < 15 %. MTTFd: 854 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green:on - power onflashing (4 Hz) - short circuit. Function indicator: LED yellow:constantly on - object detectedconstantly off - object not detected. Control elements: sensitivity adjustment. Control elements: light/dark on electrically switchable. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: < 25 mA. Protection class: III. Switching type: The switching type of the sensor is adjustable. The default setting is: Q - Pin4: NPN output / light-on L/D-On - WH: Low-active input. Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 2 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . Housingbrass, nickel-platedOptical facePMMACablePVC: . Housing: brass, nickel-plated. Optical face: PMMA. Cable: PVC. Mass: approx. 72 g. Dimensions: . Length73.4 mmDiameter18 mmThread sizeM18: . Length: 73.4 mm. Diameter: 18 mm. Thread size: M18
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
