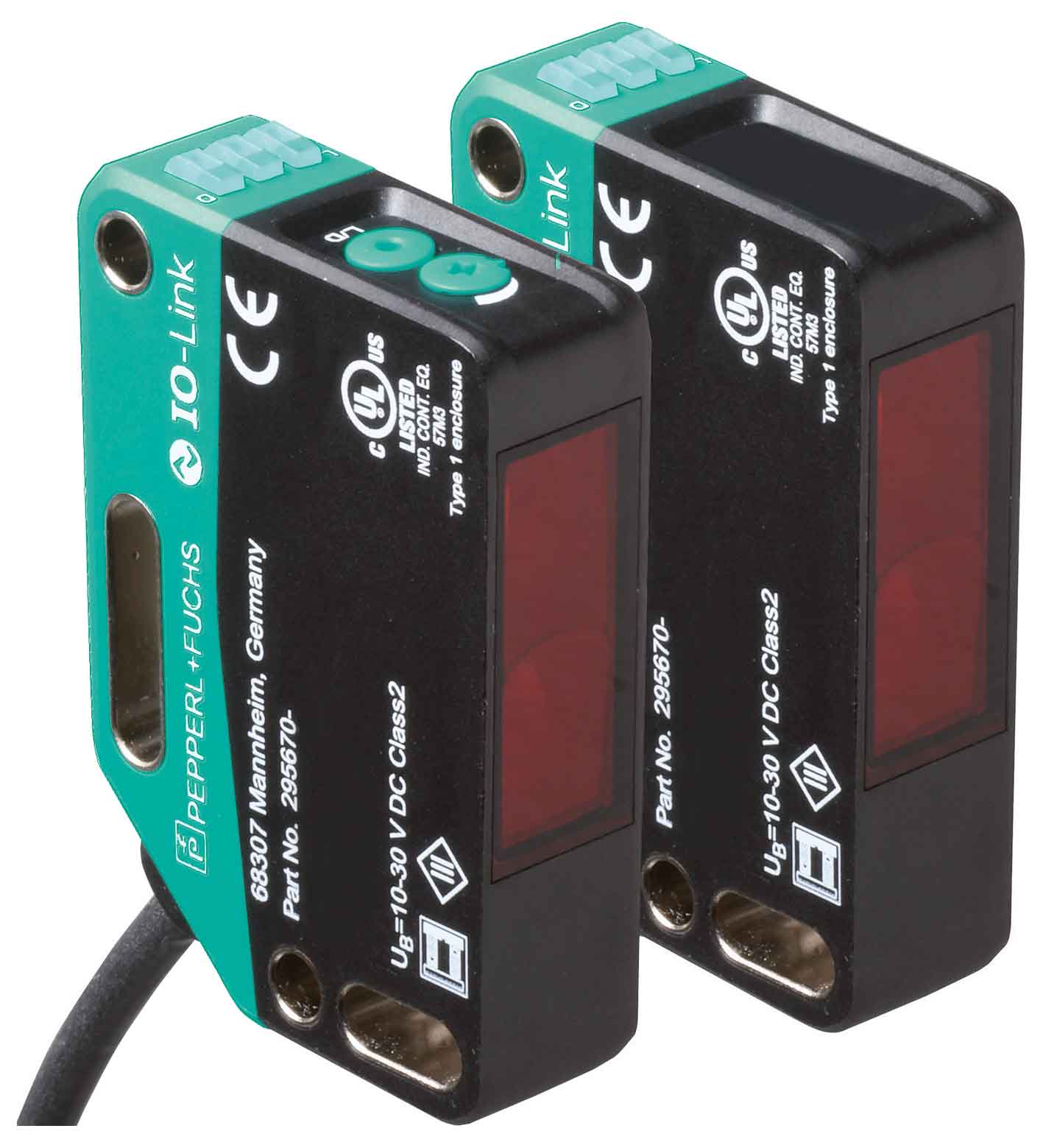

OBE25M-R201-S2EP-IO

Thru-beam sensor (pair). Medium design with versatile mounting options, IO-Link interface for service and process data, Various frequencies for avoiding mutual interference (cross-talk immunity), Exte...

Thru-beam sensor (pair). Medium design with versatile mounting options, IO-Link interface for service and process data, Various frequencies for avoiding mutual interference (cross-talk immunity), Extended temperature range<br>-40 °C ... 60 °C, High degree of protection IP69K. Emitter: OBE25M-R201-S-IO. Receiver: OBE25M-R201-2EP-IO. Effective detection range: 0 ... 25 m. Threshold detection range: 33 m. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Alignment aid: LED red (in receiver lens)illuminated constantly: beam is interrupted,flashes: reaching switching point,off: sufficient operating reserve. Diameter of the light spot: approx. 850 mm at a distance of 25 m. Opening angle: approx. 2 °. Ambient light limit: EN 60947-5-2 : 40000 Lux. MTTFd: 462 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 60 %. Operation indicator: LED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode. Function indicator: Yellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve. Control elements: Receiver: light/dark switch. Control elements: Receiver: sensitivity adjustment. Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: Emitter: ≤ 15 mA Receiver: ≤ 15 mA at 24 V Operating voltage. Protection class: III. Interface type: IO-Link ( via C/Q = BK ). IO-Link revision: 1.1. Device profile: Identification and diagnosisSmart Sensor:Receiver: type 2.4Emitter: -. Device ID: Emitter: 0x111411 (1119249)Receiver: 0x111311 (1118993). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: Emitter:Process data input: 0 bitProcess data output: 1 bitReceiver:Process data input: 2 bitProcess data output: 2 bit. SIO mode support: yes. Compatible master port type: A. Test input: emitter deactivation at +UB. Switching type: The switching type of the sensor is adjustable. The default setting is: C/Q - BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q - WH: NPN normally closed / light-on, PNP normally open / dark-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Usage category: DC-12 and DC-13. Voltage drop: ≤ 1.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Communication interface: IEC 61131-9. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation -20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67 / IP69 / IP69K. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: Emitter: approx. 83 g receiver: approx. 83 g. Dimensions: . Height61.7 mmWidth15 mmDepth41.7 mm: . Height: 61.7 mm. Width: 15 mm. Depth: 41.7 mm. Cable length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
