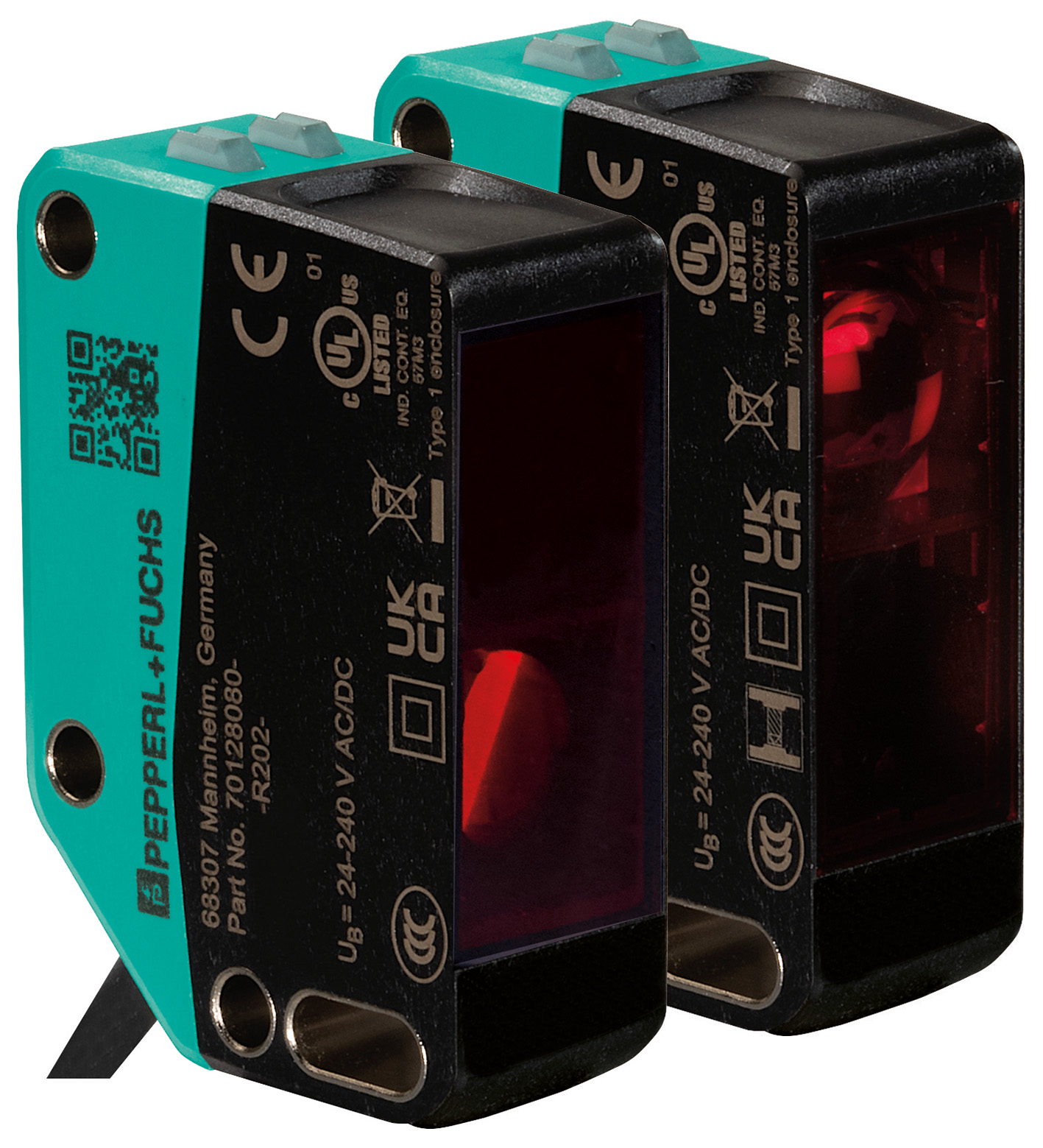

OBE35M-R202-SK6

Thru-beam sensor (pair). Version for universal voltages, Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light spo...

Thru-beam sensor (pair). Version for universal voltages, Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light spot. Emitter: OBE35M-R202-SK. Receiver: OBE35M-R202-K6. Effective detection range: 0 ... 35 m. Threshold detection range: 47 m. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Transmitter frequency: F1 = 8.2 kHz. Diameter of the light spot: approx. 1200 mm at a distance of 35 m. Opening angle: 2 °. Ambient light limit: EN 60947-5-2 : 40000 Lux. MTTFd: 422 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: Yellow LED:Permanently lit - light path clearPermanently off - object detectedFlashing (4 Hz) - insufficient operating reserve Flashing (8 Hz) - fault detected, the outputs maintain the status. Control elements: none. Operating voltage: 24 ... 240 V DC (-30 °C ≤ Tamb ≤ 60 °C) 24 ... 240 V AC (10 °C ≤ Tamb ≤ 60 °C) 30 ... 240 V AC (-30 °C ≤ Tamb ≤ 60 °C). No-load supply current: Emitter: ≤ 15 mA Receiver: ≤ 30 mA at 24 V Operating voltage. Protection class: II. Rated insulation voltageUi250 VRated impulse withstand voltageUimp2500 V: Ui. Rated insulation voltage: 250 V. Rated impulse withstand voltage: 2500 V. Power consumption: Emitter: ≤ 0.35 VA Receiver: ≤ 0.75 VA. Fuse: Safety fuse ≤ 2 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.. Switching type: Q - BK: normally-open / dark-on /Q - GY: normally-closed / light-on C - WH: Common. Signal output: Relay, 1 alternator. Switching voltage: max. 240 V AC/DC. Switching current: max. 2.5 A , see section characteristic curve. Switching power: DC: max. 95 W AC: max. 600 VA. Usage category: DC-12 , DC-13 , AC-12 u. AC-140. Switching frequency: 25 Hz. Response time: ≤ 20 ms. Product standard: EN 60947-5-2 , EN 60947-1. UL approval: E87056 , cULus Listed. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F) , cable, fixed installation -20 ... 60 °C (-4 ... 140 °F) , movable cable not appropriate for conveyor chains. Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPC (Polycarbonate)Optical facePMMA: . Housing: PC (Polycarbonate). Optical face: PMMA. Mass: Emitter: approx. 90 g receiver: approx. 120 g. Dimensions: . Height61.9 mmWidth20 mmDepth41.7 mm: . Height: 61.9 mm. Width: 20 mm. Depth: 41.7 mm. Cable length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
