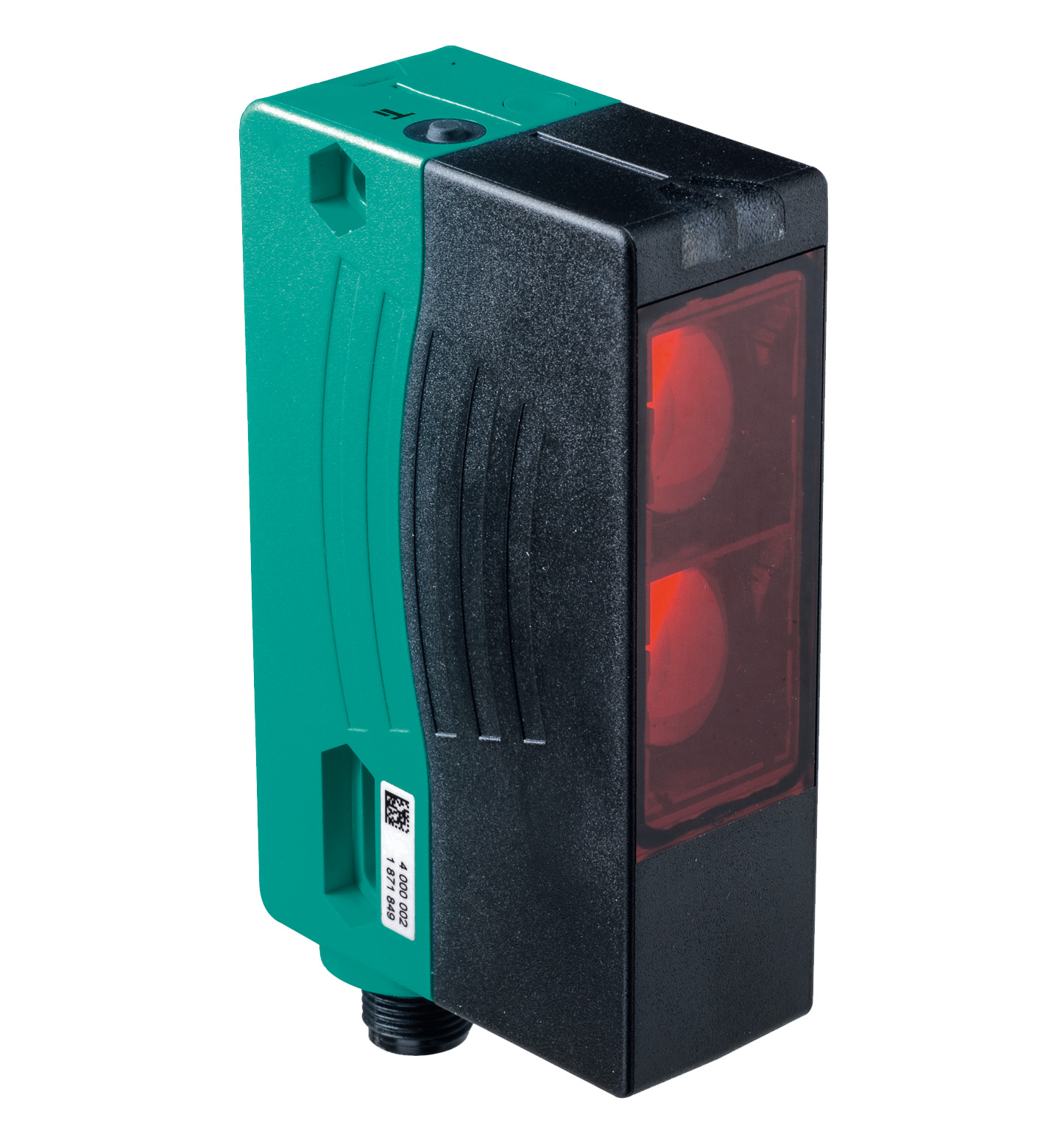

OBR50M-R300-2P1-V1

Retroreflective sensor. Retroreflective sensor, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmission LED, Reliable detection of reflecting...

Retroreflective sensor. Retroreflective sensor, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmission LED, Reliable detection of reflecting metall objects, Simple operation with only one Teach-In button. Effective detection range: 0 ... 50 m. Reflector distance: 0.2 ... 50 m. Reference target: 3 x REF-H100. Light source: LED. Light type: modulated visible red light. LED risk group labelling: exempt group. Angle deviation: max. ± 2°. Measuring method: Pulse Ranging Technology (PRT). Diameter of the light spot: approx. 16 cm x 18 cm at a distance of 10 m. Ambient light limit: 50000 Lux. Window width: 100 mm. MTTFd: 100 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow for switching state. Control elements: Teach-In key. Operating voltage: 10 ... 30 V DC. Ripple: 10 % within the supply tolerance. No-load supply current: ≤ 80 mA / 24 V DC. Time delay before availability: < 0.7 s , for temperatures <-30°C compliance of the specification 5 mins after power on. Switching type: Q - Pin4: NPN normally closed / light-on, PNP normally open / dark-on /Q - Pin2: NPN normally open / dark-on, PNP normally closed / light-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 50 Hz. Response time: 5 ms. Product standard: EN 60947-5-2. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingPlastic ABSOptical facePMMA: . Housing: Plastic ABS. Optical face: PMMA. Mass: 90 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
